Mascord House Plan 2418A: The Garnell
The Garnell

Plan 2418A

Plan 2418A - The Garnell - Build the Country Estate of Your Dreams

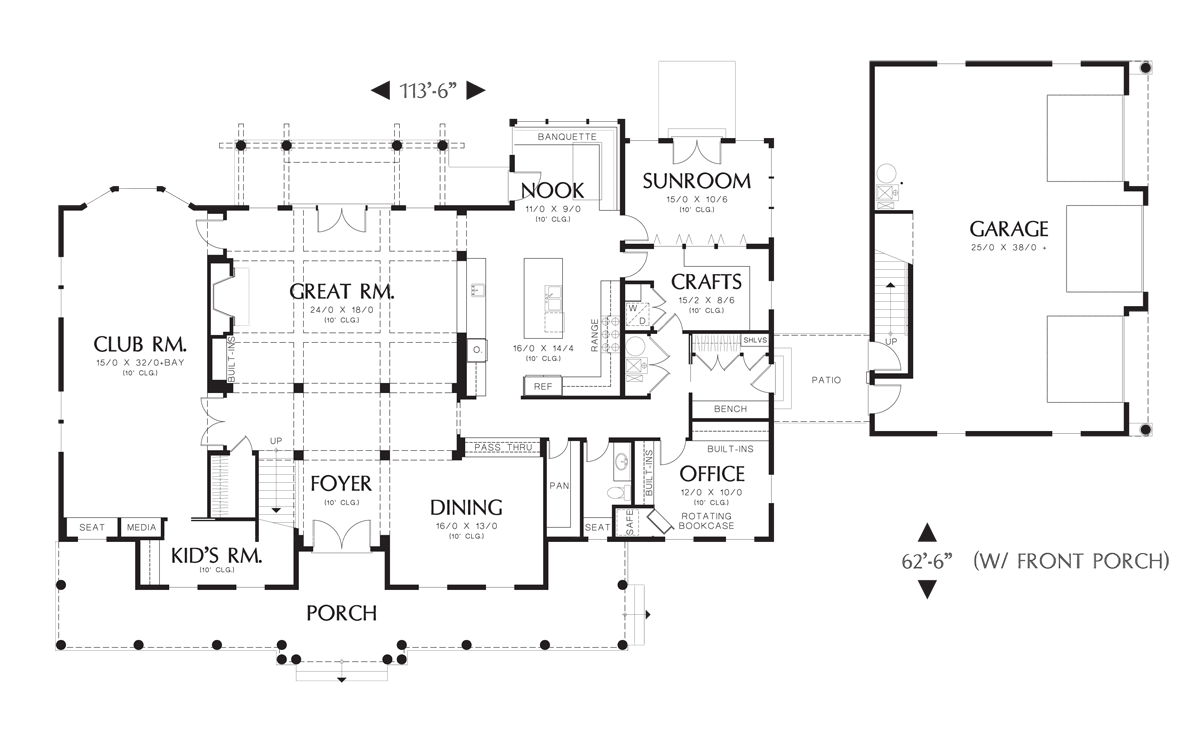

Main Floor Plan

Main Floor Plan image for Mascord Garnell-Build the Country Estate of Your Dreams-Main Floor Plan

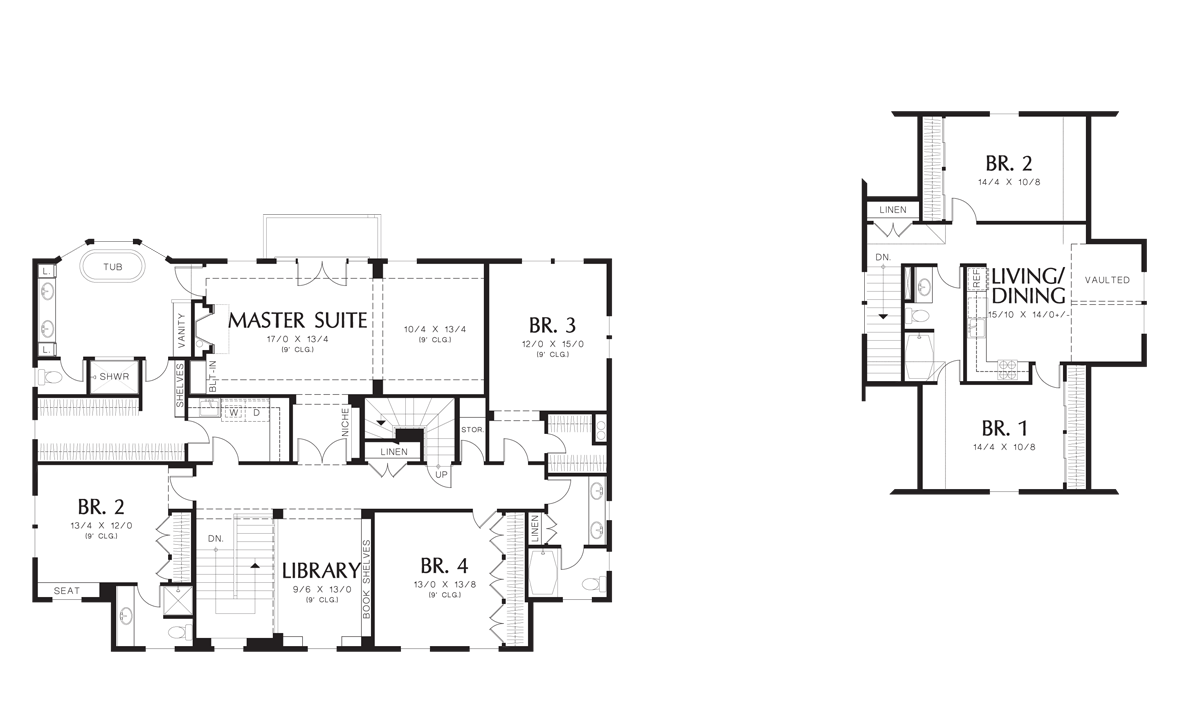

Upper Floor Plan

Upper Floor Plan image for Mascord Garnell-Build the Country Estate of Your Dreams-Upper Floor Plan

A Walk Through The Garnell

In the Garnell, the Colonial aesthetic comes to life. The front porch is the perfect place for a pair of rocking chairs so that in the evenings, you and your partner can sit outside and enjoy the warm breeze rolling in over the fields around your home. Each spring, you’ll love adding even more charm to the porch by decorating it with colorful hanging planters. Your guests will love it, too, as you welcome them through the front doors and into the grand great room.

If you’re so inclined, you can seat your guests in the great room for an evening of cocktails and conversation as you overlook the beautiful view behind your home. Otherwise, you can head to the club room to play a few hands of cards, shoot a game of pool or watch movies. Meanwhile, in the kid’s room, your children and their friends will be enjoying their favorite games and toys.

For the guests that decide to stay a little longer, you can offer them the comforts of your guest house above the three-car garage. This apartment gives them access to two bedrooms, a full kitchen and bathroom, and a comfortable living and dining area. If you don’t often host overnight guests, then you’ll find any number of uses for this space. For instance, you can convert the bedrooms into offices or a studio so that you have a private, quiet place to run your home business.

Of course, you’ll also have office and studio space in the main home, too. The first floor office gives you a hidden safe so that you can make sure your valuables are well protected.

As you move down the hall opposite the office, you’ll find the craft room — a room that will surely become your favorite spot in the house before too long. You can spend all day using the built-in counters to make amazing arts and crafts.

When you need a break, head into the sunroom to enjoy the flowers and greenery. Who knows, maybe you’ll have some indoor fruits and vegetables ripening on the vine so that you can make yourself a fresh snack, too!

For a little bit of alone time, the Garnell’s upper floor is the place to go. Visit the library at the top of the steps to choose a good book or spend the evening stargazing out on the master bedroom’s balcony. If it’s chilly outside, warm up to a fire in the master bedroom’s fireplace and then snuggle up under the covers to look out over your estate through this room’s windows and doors.

Home Details

Heated Space

  • Upper Floor

    2202 SqFt
  • Main Floor

    3020 SqFt
  • Sub-Total

    5222 SqFt
  • Bonus

    + 908 SqFt

Beds and Baths

  • Bedrooms

    4
  • Full Baths

    3
  • Half Baths

    1
  • Floors

    3

Exterior Dimensions

Garage

  • Garage Bays

    3 Car Garage
  • Garage Area

    1079 SqFt
  • Garage Location

    Side
  • Garage Orientation

    Detached

Structure

  • Roof Framing

    Stick
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    9/12

Colonial

This is a colonial style home. Our Colonial home designs typically have an accentuated front door (usually centered), perhaps with a decorative crown and supported by pillasters or extended forward and supported by slender columns to form an entry porch. Doors commonly have overhead fan lights or sidelights. The facade normally shows symmetrically balanced windows. The foot print of the home is typically a simple, rectangular shape.

Country

Country house plans are similar to farmhouse style plans. They are usually two story with a covered front or wrap around porch. Quite colonial, the footprint is often boxy or rectangular shaped. Many country house designs feature a centred entryway with stacked single hung windows.

Farmhouse

This home features in our Farmhouse plans collection. Farmhouse is a general term for the main house of a farm. It is a type of building or house which serves a residential purpose in a rural or agricultural setting. Most often, the surrounding environment will be a farm. Many farm houses are shaped like a T. The perpendicular section is referred to as the ell. Architectural styles vary, but very often they are of Cape Cod design. In general styles vary from region to region, but more often the style is simplistic so to serve the needs (and the budget) of the owners.

Shingle

If you're looking for a traditional beach house or a home with timeless colonial beauty, you should definitely check out the homes in the Shingle stylecollection.   Homes in this collection typically feature steeper pitched roof lines, and shingle covered walls (of course!). They also have a smooth surface appearance with little or no decoration.

This plan is based upon another design - 2418
  • Added 42 SqFt to finished area
  • Overall Width decreased 4ft.
  • Overall Depth decreased 1ft.
  • Removed a bathroom.
  • Added a powder room.
  • Plan now has 3 floors.
Check out the details for Plan 2418 here.

Choose Plan Set

Foundations

Additional Options

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

You can find this plan in these related styles and collections

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
