Mascord House Plan 1220L: The Louisville

The Louisville

Plan 1220L

  • 2707 SqFt
  • 4 Beds
  • 2 Baths
  • 1 Pwdr
  • 1 Floor
  • 3 Car Garage

Great Room Panoramic Image

Drag Image to Rotate View | Click settings buttons for VR and Full Screen

Home Details

Heated Space

  • Main Floor

    2549 SqFt
  • Basement

    158 SqFt
  • Total Area

    2707 SqFt
  • Bsmnt (Unfin.)

    + 375 SqFt

Beds and Baths

  • Bedrooms

    4
  • Full Baths

    2
  • Half Baths

    1
  • Floors

    1

Exterior Dimensions

Garage

  • Garage Bays

    3 Car Garage
  • Garage Area

    846 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Structure

  • Roof Framing

    Stick
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    3/12

A Walk Through The Louisville

If you’re looking for contemporary house plans that combine beauty and functionality, you’ll definitely want to take a look at the blueprints for the Louisville. With so much curb appeal, this is a home that will welcome you back from work each and every day. The asymmetrical exterior design gives this home a charming, artful appearance that is certain to make it stand out from all the other homes in your neighborhood. Wood and stone siding make this home perfect for wooded lots, enhancing the atmosphere such that you won’t be able to resist spending summer evenings out on the front deck. Here, there are both vaulted and uncovered portions of the deck so that you can enjoy sun or shade as you desire, with a second-story vantage that gives you a beautiful view of the surrounding scenery.

No contemporary design would be complete without enormous windows, which you will find in the Louisville’s great room. Whether you’re working in the kitchen or curled up next to the fire in the great room, you’ll be able to enjoy the same sweeping view of the outdoors as you would from the deck. This space also contains an ample dining room. When holidays roll around, you’ll find the kitchen’s smart design makes it easy for you to feast them, and they’ll be treated to the same gorgeous view of the outdoors that you get to enjoy each day.

This is a home well suited to a big backyard, and as soon as you see the Louisville’s rear porch, which leads into a laundry area, you’ll see why. The kids can be out playing outside all day long, but when it comes time for them to return for dinner, the laundry room doubles as a mud room where they can kick off shoes and clean up rather than tracking dirt through the house. The nice thing about this laundry room is that it’s also situated near to the home’s four bedrooms—and on the same level, too. Laundry day will be easy since you won’t have to navigate stairs with heavy laundry baskets.

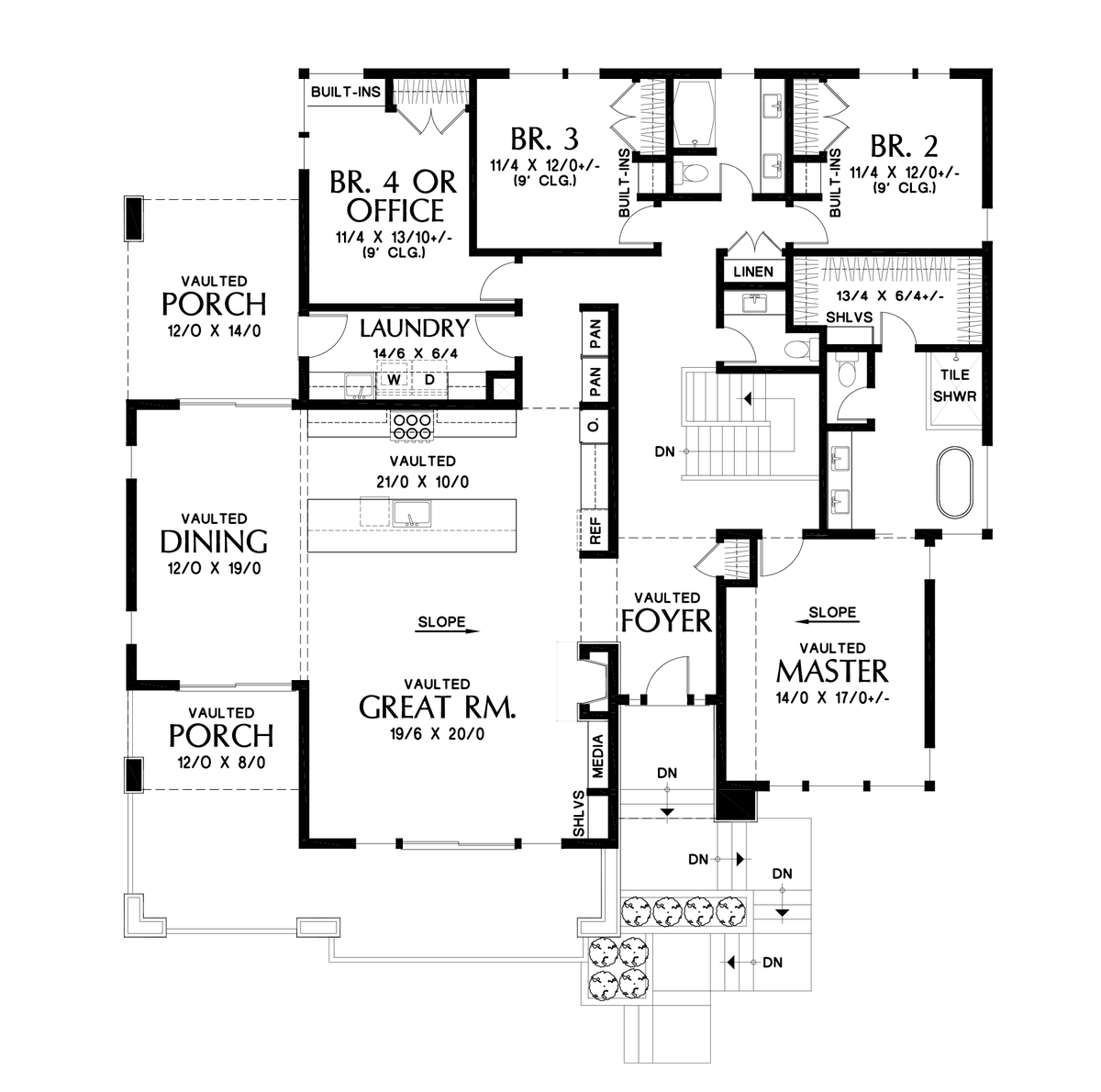

On this home’s primary level, there are three bedrooms for the kids, which means you’ll have plenty of room to expand your family—and even space for a home office, if you so desire. Then there is the master suite, which is designed to give you a restful space to unwind after a busy day. Beautiful windows overlook your front yard, and the vaulted ceiling gives the room a sense of space. The master bath and walk-in closet offer a wonderful blend of functionality and luxury to ensure your morning and evening routines are a stress-free and soothing experience each day.

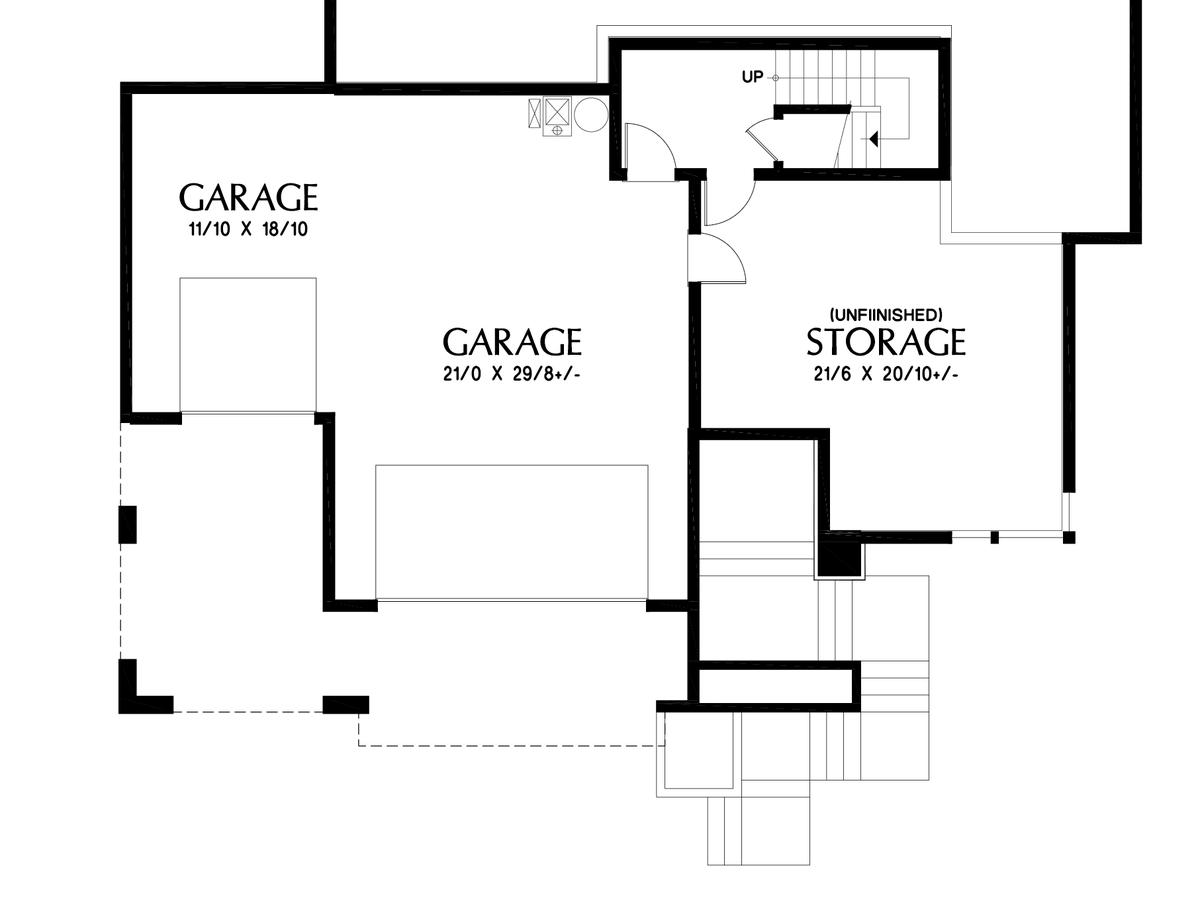

The lower floor gives you lots of options. The two-car garage is large enough for the family’s vehicles, plus all of your favorite outdoor toys, too. Here, there is also a large storage room, which can serve many purposes. Fill it with cabinets and shelving to keep organized, or this space can also serve as a quiet, secluded studio or workshop.


Comments

Choose Plan Set

Choose Foundation

Additional Options

Market Your Home

Similar and Related Plans

Plan 1220 The Parkview
Photography of house plan 1220
  • 2542 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    2
  • Width:

    60'-0"
  • Depth:

    59'-0"

Split-level Plan with Large Kitchen

Builders known to be experienced constructing this home include:

T.H.E. Remodel Group Tualatin, OR 5038691290
AMERICAN COLONIAL HOMES, LLC MOUNT LAUREL, NJ 8664226198
R M HOMES DUANESBURG, NY 5183653719
US Log and Timber Dallas, TX 7703632715
Green Construction Holmes Builders Chicago, IL 7738957818
J.T. Roth Construction Portland, OR 5036392639
Chilton Custom Homes Woodland, WA 3609980462
KELLI & LANG REMAX GATEWAY ANACORTES, WA 3602938654
Dry Canyon Building, LLC Redmond, OR 5412805664
Sasha and Company Vancouver, WA 5033510773
Kenan Construction , 9106040043
(find more builders in our Builder Directory)

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Electronically delivered house plans - including PDF and CAD files - are none-refundable and non-exchangeable. All exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
