Plan 2192 - The Meredith - Narrow Craftsman Plan with Vaulted Ceilings
1 Car Garage

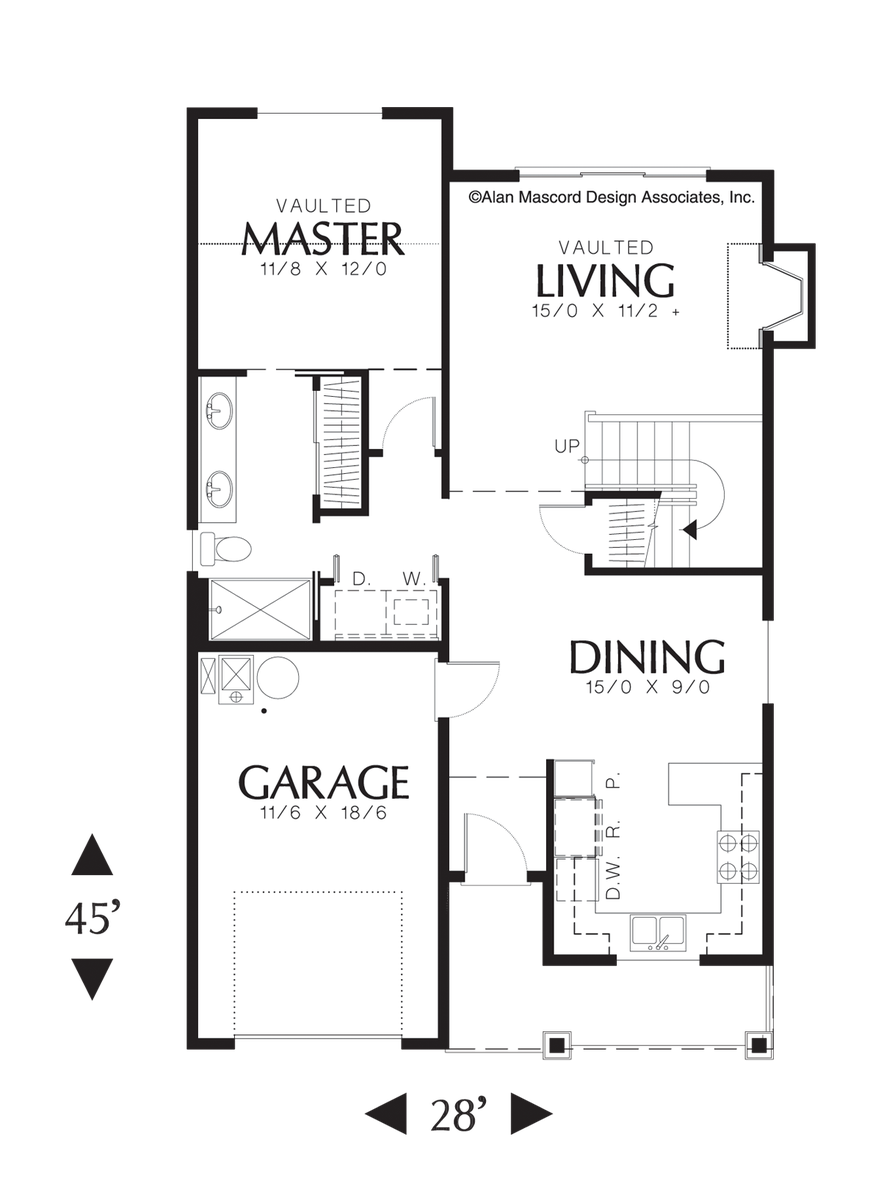

Main Floor Plan

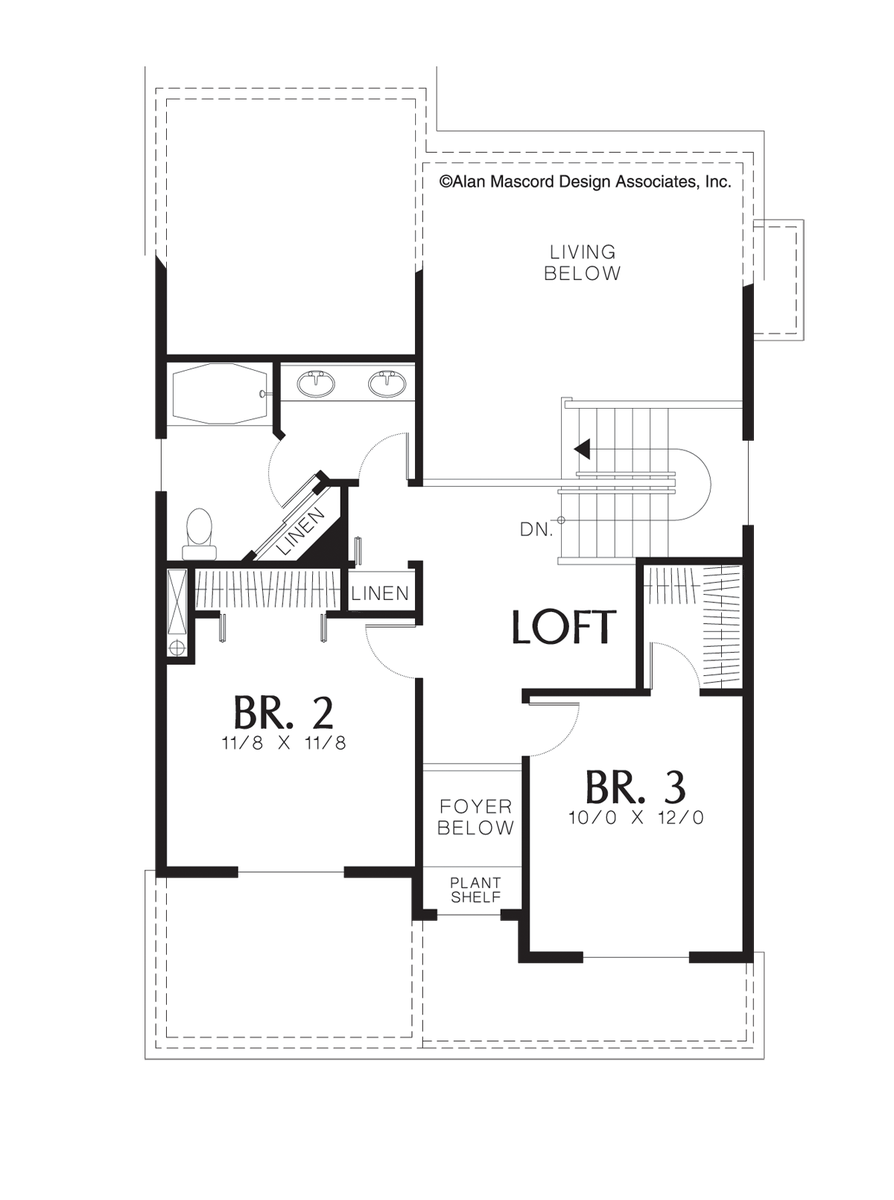

Upper Floor Plan
A Walk Through The Meredith
Just because you need a design with a narrow width, you don't have to sacrifice great living space to have it. This design features a beautiful facade and a comfortable floor plan, yet is only 28 feet wide. Exterior virtues include a covered porch, cedar shake detailing, shuttered windows and horizontal wood siding. On the inside, the plan boasts vaulted ceilings in the living room and master salon. The living room also has a fireplace and sliding glass doors to the backyard. The master bath can be accessed either from the master bedroom, or from a hall that also contains a laundry alcove. The dining area and kitchen are to the front of the plan. Two family bedrooms - one with a walk-in closet - are upstairs. Their shared bath has a corner linen closet, a double vanity and a compartmented toilet and tub. The second-floor loft overlooks the living room and the foyer below.
Upper Floor586 SqFt
Main Floor902 SqFt
Total Area1488 SqFt
Beds and Baths
Height (to Midpt)21'-6"
Garage Bays1 Car Garage
Garage Area232 SqFt
Roof MaterialShake/Comp Roof
Wall Framing2 x 6
Main Roof Pitch8/12
