Mascord House Plan 2347: The Gardell
The Gardell

Plan 2347

Plan 2347 - The Gardell - Mediterranean Style Spacious Home

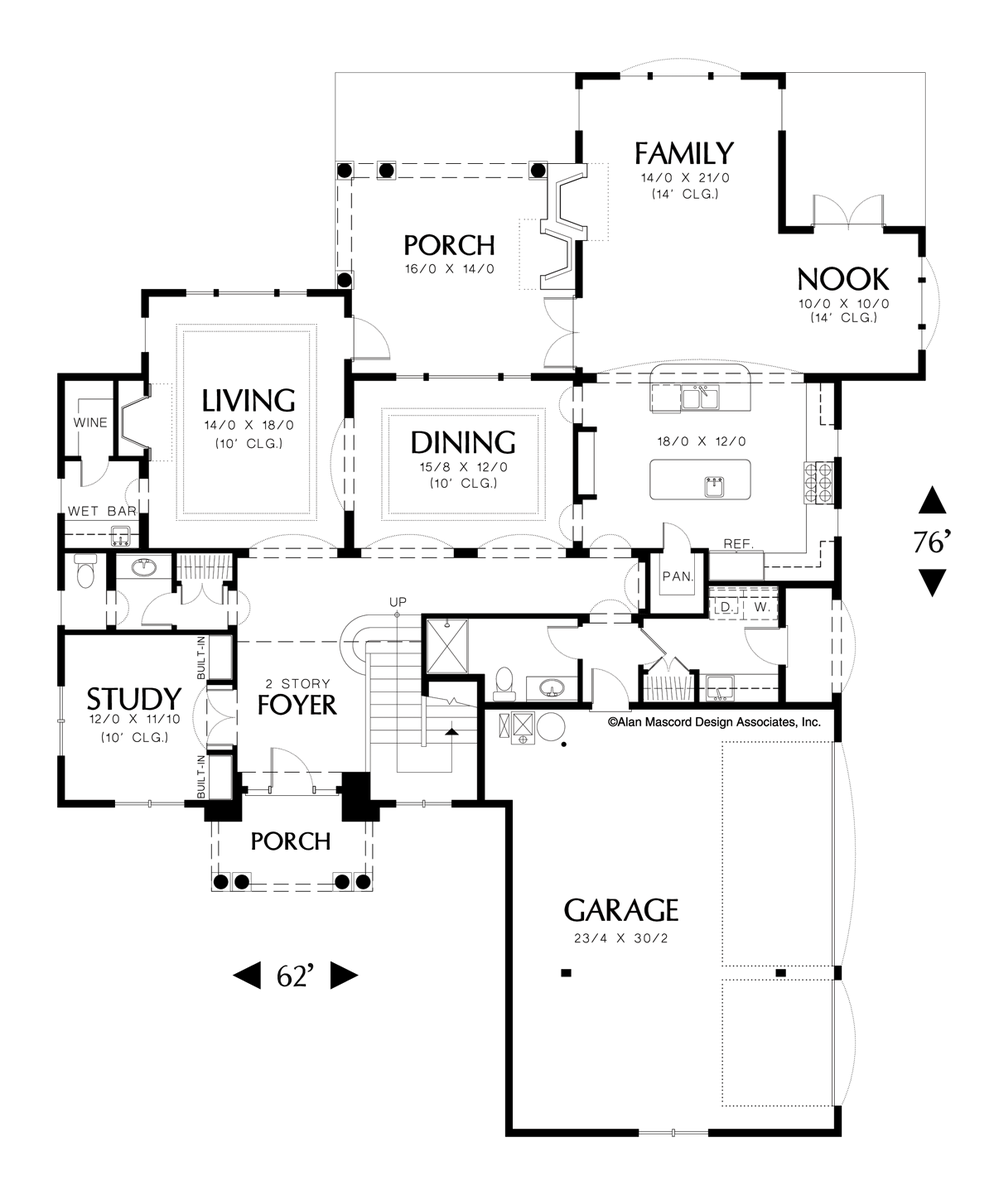

Main Floor Plan

Main Floor Plan image for Mascord Gardell-Mediterranean Style Spacious Home-Main Floor Plan

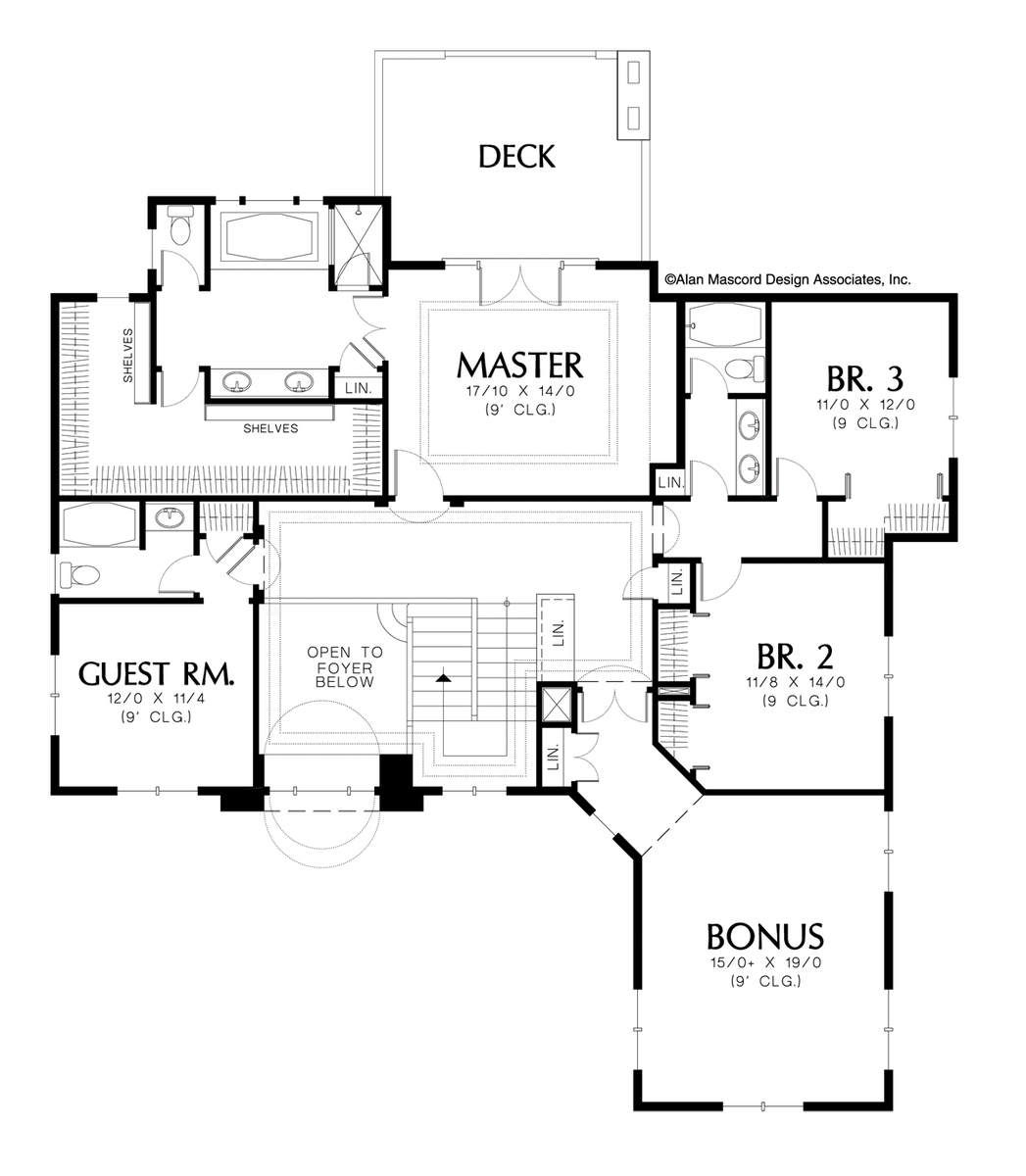

Upper Floor Plan

Upper Floor Plan image for Mascord Gardell-Mediterranean Style Spacious Home-Upper Floor Plan

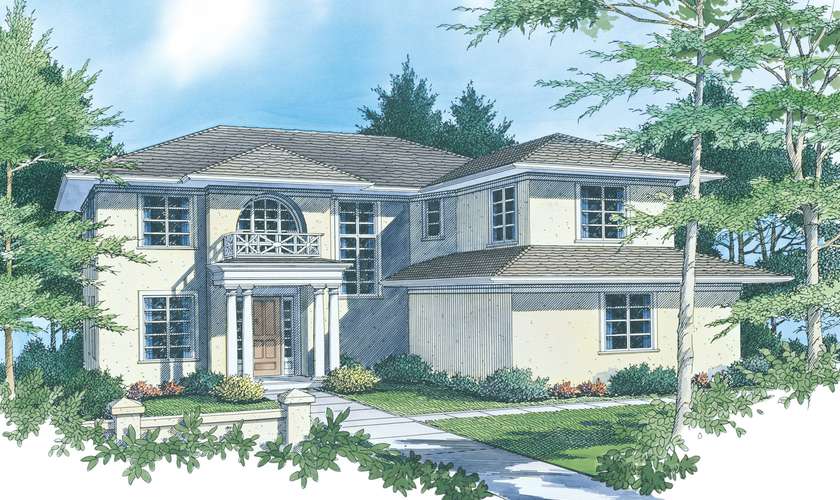

Featured Photos

Photographed Homes May Include Modifications Not Reflected in the Design

A Walk Through The Gardell

Reminiscent of a Mediterranean villa, this home is designed for entertaining. Guests will marvel at the impressive two-story foyer. The living and dining rooms lie straight ahead, each distinguished by stepped ceilings and banks of windows. The living room features a fireplace and access to the columned porch, which also hosts a fireplace. An adjoining hospitality center is furnished with a wet bar and compartment for wine. A powder room is nearby. The kitchen, breakfast nook, and family room is the perfect place for casual events. The large kitchen is geared for big-batch cooking with a six-burner range, walk-in pantry, and an island with a vegetable sink and space to set out a buffet. The primary sink is enclosed in a half-wall that overlooks the family room and fireplace. The second floor houses the master suite, guest bedroom and attached bath, two additional bedrooms, and a bonus room above the garage.

Home Details

Heated Space

  • Upper Floor

    1543 SqFt
  • Main Floor

    2035 SqFt
  • Sub-Total

    3578 SqFt
  • Bonus

    + 366 SqFt

Beds and Baths

  • Bedrooms

    4
  • Full Baths

    4
  • Half Baths

    1
  • Floors

    2

Exterior Dimensions

Garage

  • Garage Bays

    3 Car Garage
  • Garage Area

    744 SqFt
  • Garage Location

    Side
  • Garage Orientation

    L-Shaped

Structure

  • Roof Framing

    Truss
  • Roof Material

    Tile Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    6/12
