Mascord House Plan 2428CA: The Winthropshire
The Winthropshire

Plan 2428CA

Mascord House Plan 2428CA: The Winthropshire

Front Rendering

Plan 2428CA - The Winthropshire - The Ultimate in Elegant Luxury Homes

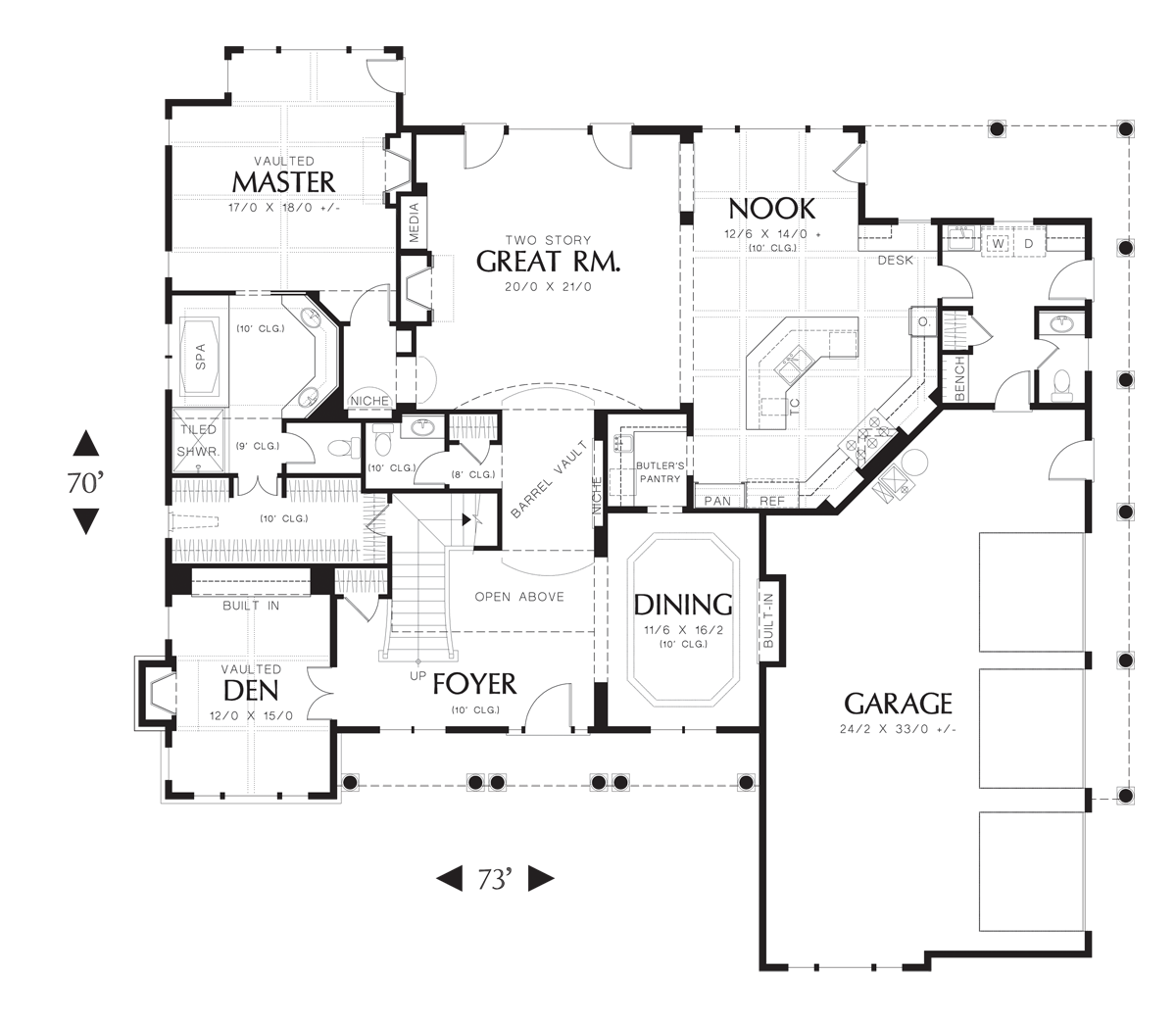

Main Floor Plan

Main Floor Plan image for Mascord Winthropshire-The Ultimate in Elegant Luxury Homes-Main Floor Plan

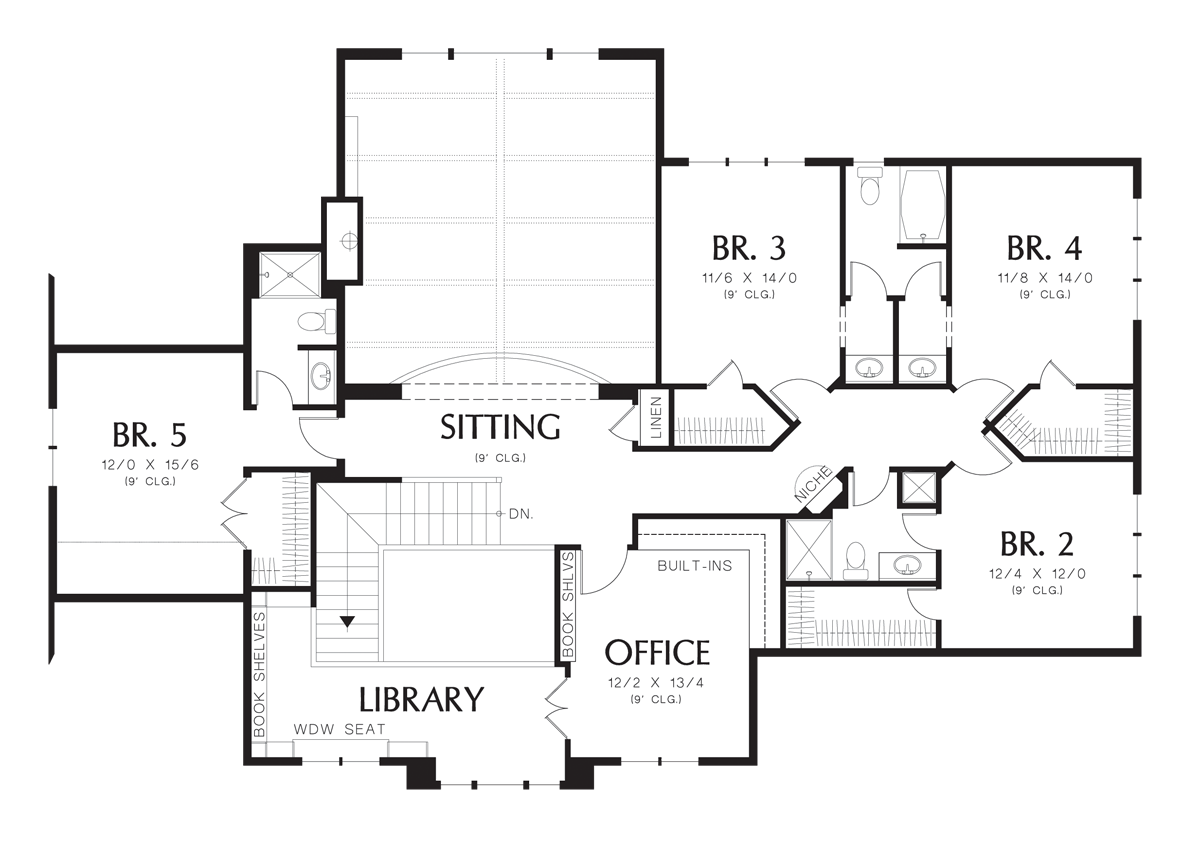

Upper Floor Plan

Upper Floor Plan image for Mascord Winthropshire-The Ultimate in Elegant Luxury Homes-Upper Floor Plan

A Walk Through The Winthropshire

What is it about this traditional Shingle-style home that you love the most? Perhaps it is the welcoming front porch or the varied gables that give the exterior a diverse look. Maybe it is the three-car garage or the beautiful outdoor spaces. Whatever it is, this is a luxury home that tends to inspire love at first sight. Surrounded by verdant green lawns and tall leafy trees, this is one home that you'll never want to leave.

The Winthropshire's lower floor features breathtaking design elements throughout, starting with an entry foyer that opens to a grand staircase and barrel vaulted hall. Proceed down that hall and you’ll be greeted by an impressive two-story great room, an expansive kitchen and large dining nook. Both the great room and dining nook give you outdoor access and fabulous floor-to-ceiling windows.

From the kitchen, you also have access to a variety of utilities. At one end is a large utility room with a half-bath, laundry area, closet space and more. At the other end, you’ll find a butler’s pantry that leads into a magnificent formal dining room — the perfect place to wine and dine friends, family and business associates.

To really understand the grand scale of this home, you’ll need to go upstairs. At the top of the steps, you’ll find a long walkway that is open to the great room and foyer below. Here, there is a balcony sitting area that might just become your favorite place in the entire home. Settle down to enjoy the grand view of the great room and its gorgeous windows.

The Winthropshire also gives you a sumptuous master suite. Each day, you’ll enjoy the rich beauty of the vaulted ceilings and windows overlooking the greenery behind your home. This room also features its own fireplace, making it an irresistible place to cuddle up on a cold winter night. As if the bedroom wasn’t enough, there is also a master bath complete with a spa tub, tiled shower and a beautifully designed his-and-hers sink and counter. Beyond this is a large walk-in closet with an extra doorway that leads out into the entry foyer.

The upper floor also gives you four bedrooms, a home office complete with shelving and a built-in desk, and a beautiful private lofted library off of the office. The library gives you a view into the foyer below along with a window seat where you will spend countless hours relaxing and enjoying a good book.

Home Details

Heated Space

  • Upper Floor

    1993 SqFt
  • Main Floor

    2744 SqFt
  • Total Area

    4737 SqFt

Beds and Baths

  • Bedrooms

    5
  • Full Baths

    4
  • Half Baths

    2
  • Floors

    2

Exterior Dimensions

Garage

  • Garage Bays

    3 Car Garage
  • Garage Area

    959 SqFt
  • Garage Location

    Side
  • Garage Orientation

    Straight-On

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    10/12

Shingle

If you're looking for a traditional beach house or a home with timeless colonial beauty, you should definitely check out the homes in the Shingle stylecollection.   Homes in this collection typically feature steeper pitched roof lines, and shingle covered walls (of course!). They also have a smooth surface appearance with little or no decoration.

Traditional

Traditional homes freely borrow from a number of historic styles and combine them to relay a new expression. Many historic styles are also 'traditional' in nature, and are incorporated into the Mascord Collection. Colonial, Tudor, Craftsman, Cape Cod - in this collection of home plans you'll discover floor plans that reflect modern lifestyles with spacious rooms, flexible spaces and modern conveniences, but mixed with distinct architectural flair, curb appeal and modern aesthetic. Expect elements such as free-flowing kitchens, breakfast nooks, and family room combinations.

This plan is based upon another design - 2428C
  • Added 163 SqFt to finished area
  • Overall Width decreased 7ft.
  • Overall Depth increased 13ft.
Check out the details for Plan 2428C here.

Choose Plan Set

Foundations

Additional Options

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

You can find this plan in these related styles and collections

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
