Plan 2431 - The Garrington - Vaulted Master with Steam Shower and Tub
3 / 1
3 Car Garage

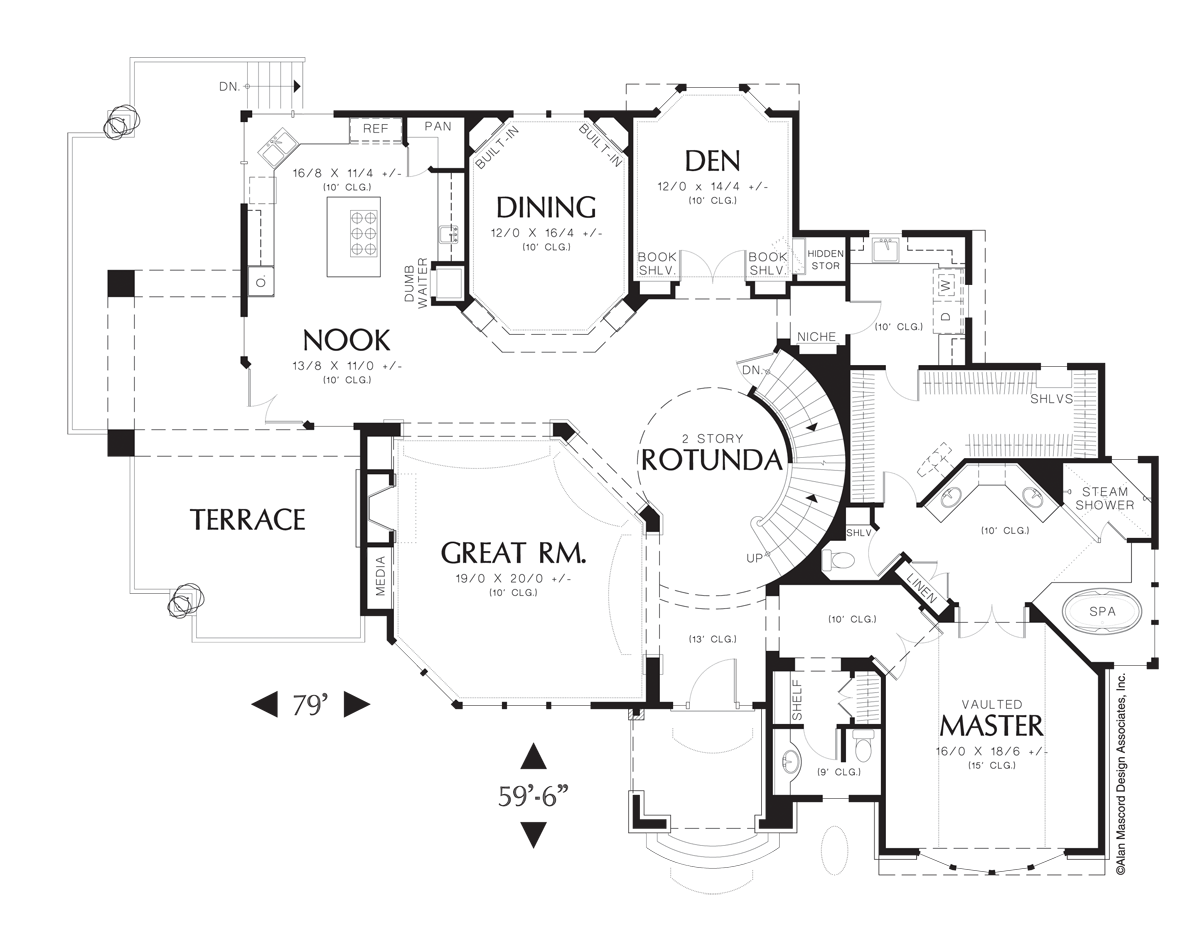

Main Floor Plan

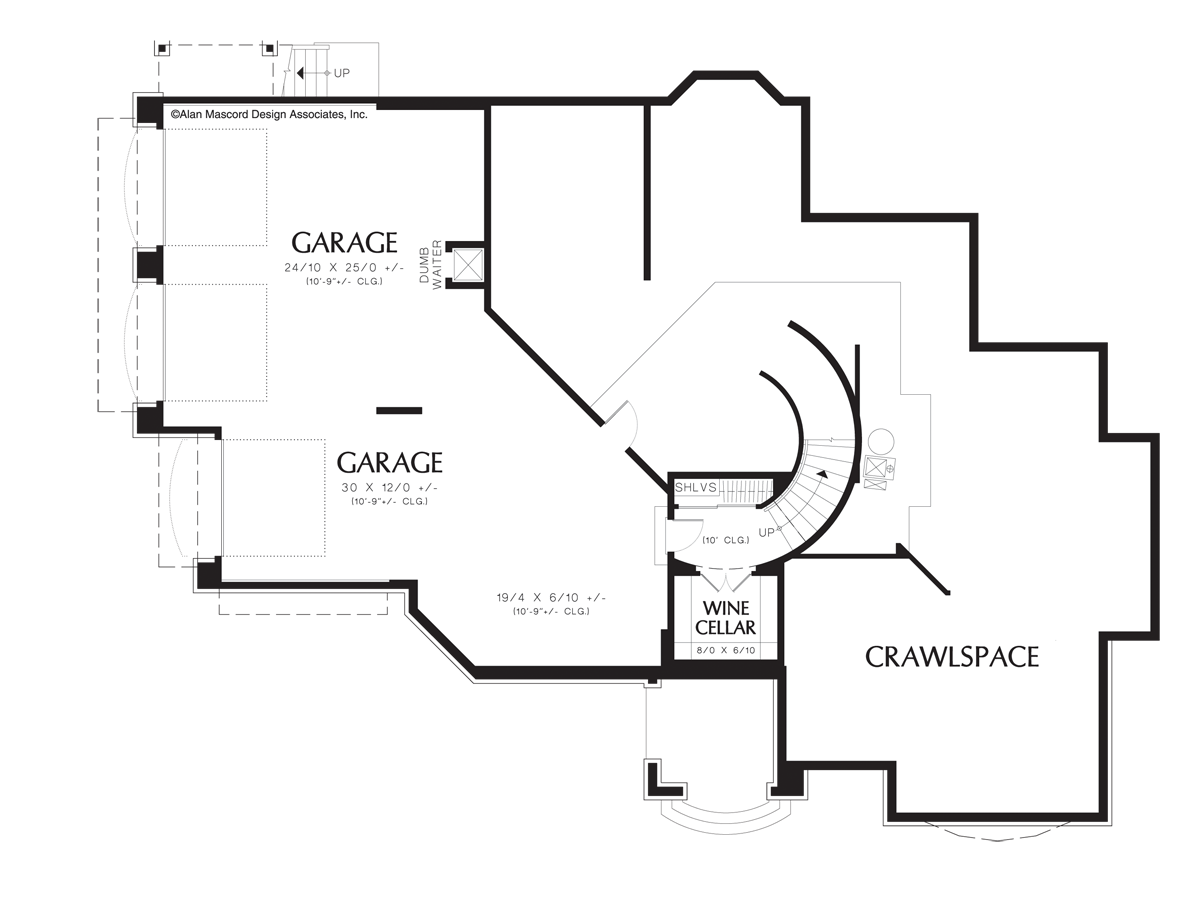

Lower Floor Plan

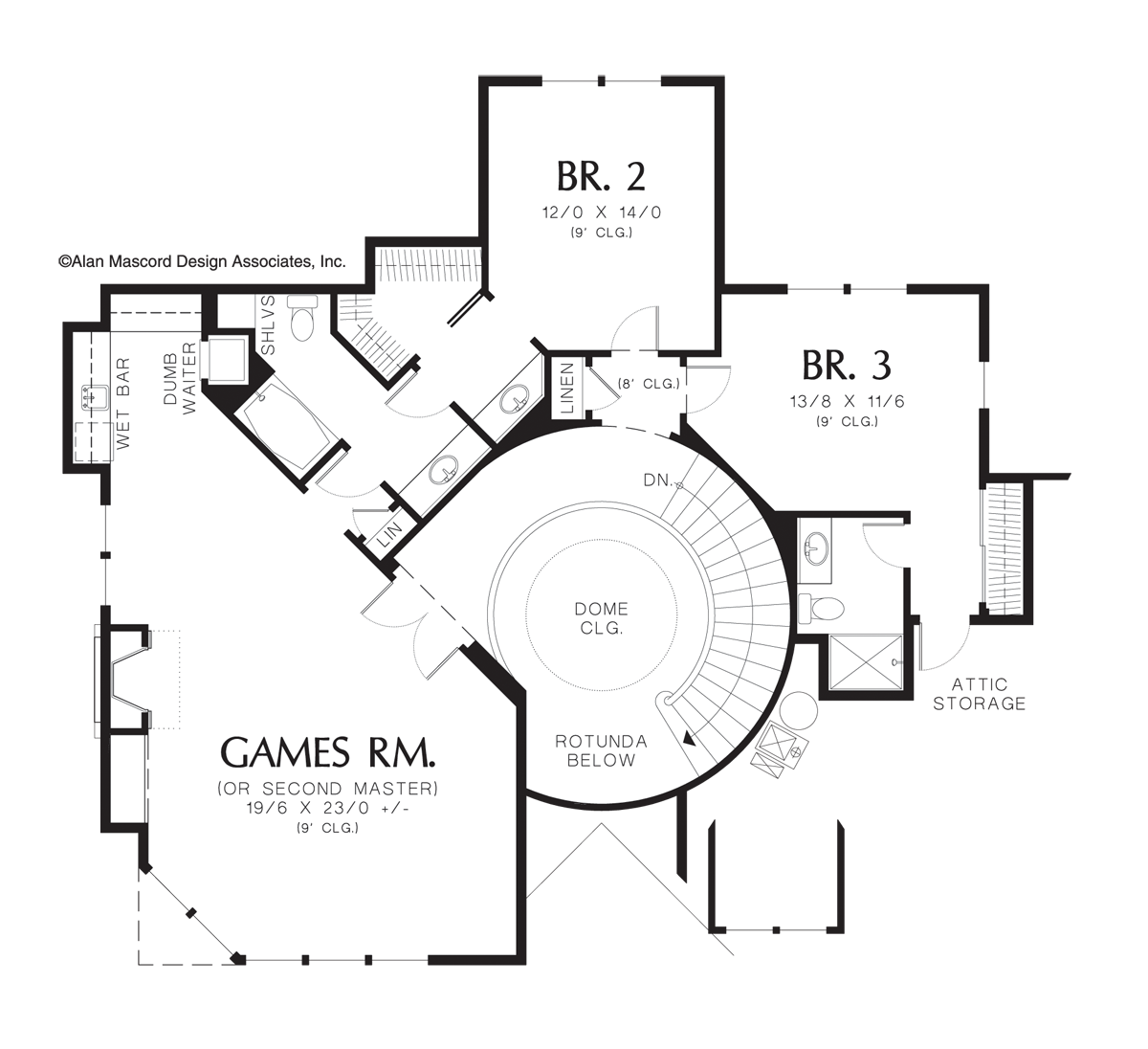

Upper Floor Plan
Photographed Homes May Include Modifications Not Reflected in the Design
A Walk Through The Garrington
Grand living is assured in this design. It incorporates the best of traditional architecture with a hillside plan that accommodates a site that slopes to the side. Gracious appointments begin just beyond the front entry: A foyer with rotunda, curved staircase and views through the great room makes a spectacular statement. The dining room, with built-ins forms a wonderful entertainment area with the great room, kitchen and nook. Look for special elements such as a dumb waiter and walk-in pantry in the kitchen; double French doors to a terrace in the nook and a fireplace with media center in the great room. A den with bay window and built-ins is tucked away behind the entry hall. The master suite is also on the main level and contains a vaulted bedroom with curved window and a bath with steam shower, spa tub, and dual vanities. A huge closet/dressing room features a built-in ironing board and connects to the laundry. Two additional bedrooms, two baths and a game room are on the upper level. A wet bar in the game room is skylit. The lower level is devoted to garage space, and a wine cellar.
Upper Floor1341 SqFt
Main Floor2724 SqFt
Total Area4283 SqFt
Beds and Baths
Height (to Midpt)27'-5"
Garage Bays3 Car Garage
Garage Area1240 SqFt
Roof MaterialShake/Comp Roof
Wall Framing2 x 6
Main Roof Pitch12/12
