Mascord House Plan 5020: The Merillat
The Merillat

Plan 5020

Mascord House Plan 5020: The Merillat

Rear Rendering

Plan 5020 - The Merillat - Two Story One Bedroom Plan for Sloped Lot

Main Floor Plan

Main Floor Plan image for Mascord Merillat-Two Story One Bedroom Plan for Sloped Lot-Main Floor Plan

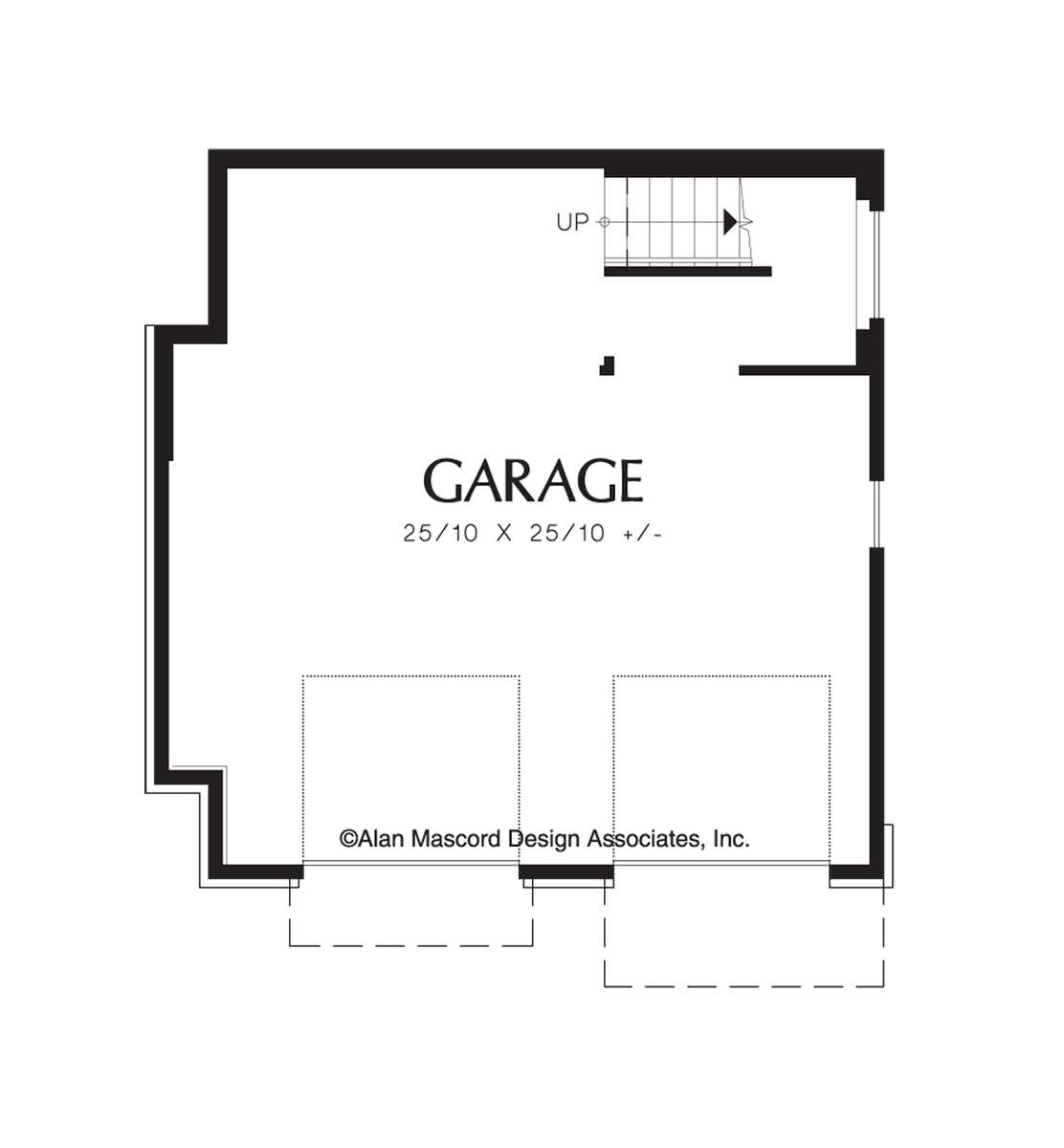

Lower Floor Plan

Lower Floor Plan image for Mascord Merillat-Two Story One Bedroom Plan for Sloped Lot-Lower Floor Plan

Upper Floor Plan

Upper Floor Plan image for Mascord Merillat-Two Story One Bedroom Plan for Sloped Lot-Upper Floor Plan

A Walk Through The Merillat

The perfect plan for a get-away spot, this is a cozy home and designed specifically for sites that slope up from the front. By situating the double garage underneath, the site is accommodated, but the design is not compromised. Outside entry is accomplished from the back of the plan, or via a staircase leading up from the garage. And even though the plan is small, it lives very well. Special features, such as a main-level bath with shower, a huge living area with fireplace, window seat and media center, and a commodious kitchen with built-in desk and deck access make it comfortable. The upper level is dominated by the master suite, which has a vaulted bedroom with built-in bookcases and a window seat, and a vaulted bath with spa tub, separate shower and huge walk-in closet. An alcove upstairs provides space for a washer/dryer. A built-in desk in the upper-level hall is also a nice touch.

Home Details

Heated Space

  • Upper Floor

    453 SqFt
  • Main Floor

    652 SqFt
  • Total Area

    1105 SqFt

Beds and Baths

  • Bedrooms

    1
  • Full Baths

    2
  • Floors

    2

Exterior Dimensions

Garage

  • Garage Bays

    2 Car Garage
  • Garage Area

    709 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    8/12
