Mascord House Plan 5032: The Monaco
The Monaco

Plan 5032

Mascord House Plan 5032: The Monaco

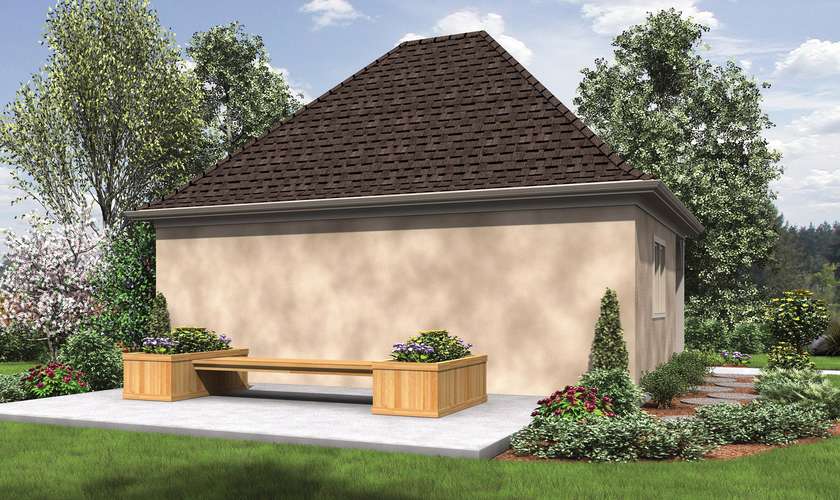

Rear Rendering

Plan 5032 - The Monaco - A Functional Garage that’s Full of Charm and Style

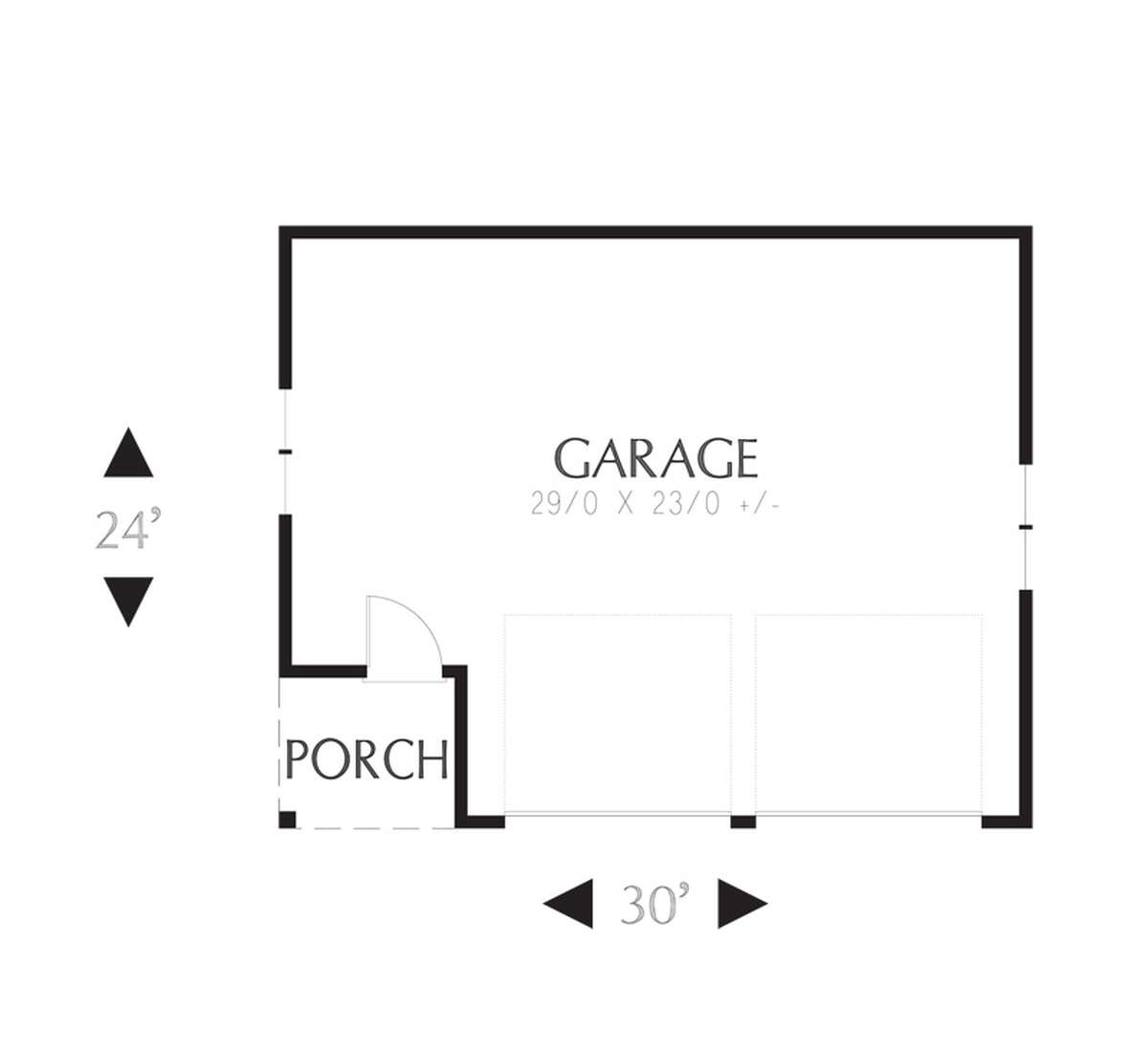

Main Floor Plan

Main Floor Plan image for Mascord Monaco-A Functional Garage that’s Full of Charm and Style  -Main Floor Plan

A Walk Through The Monaco

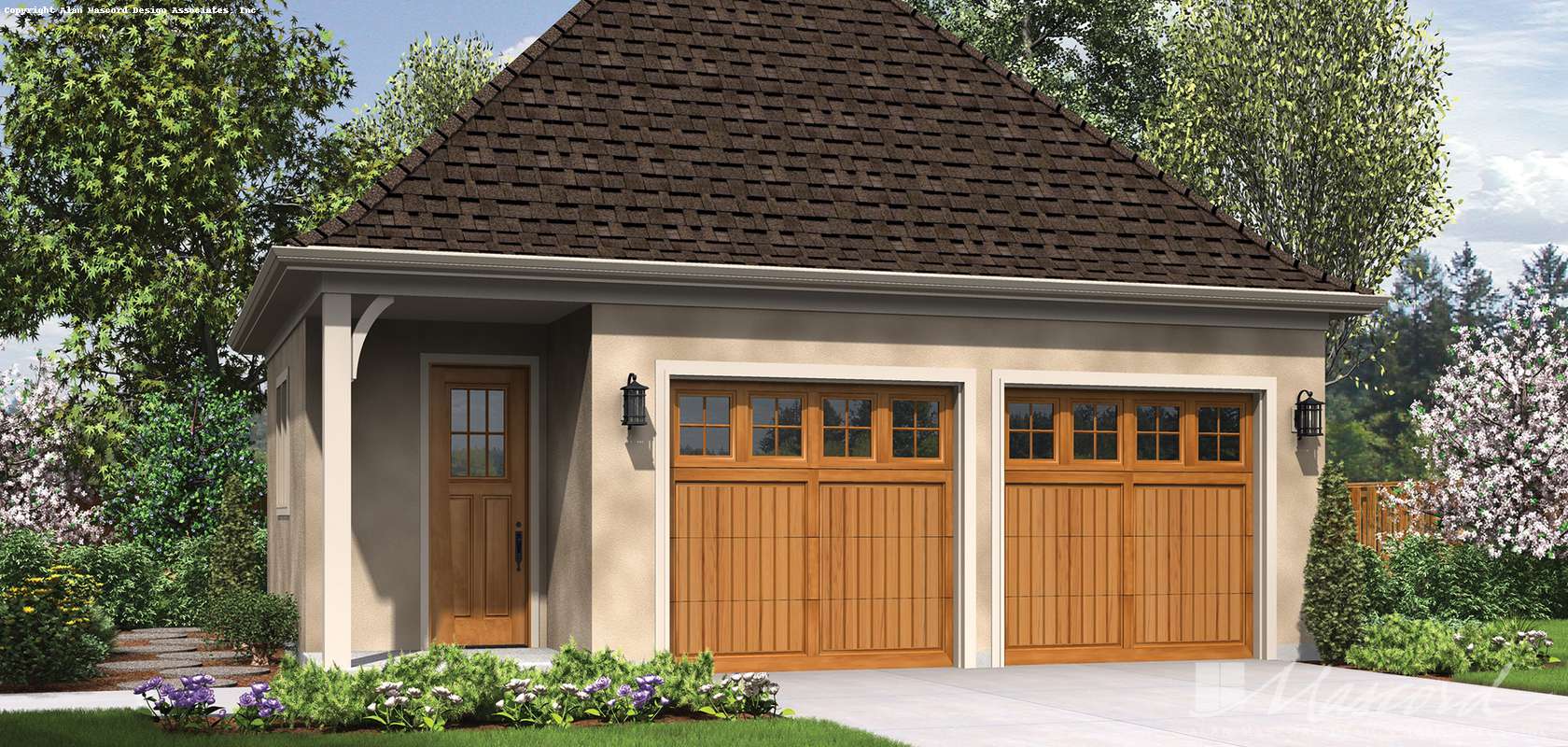

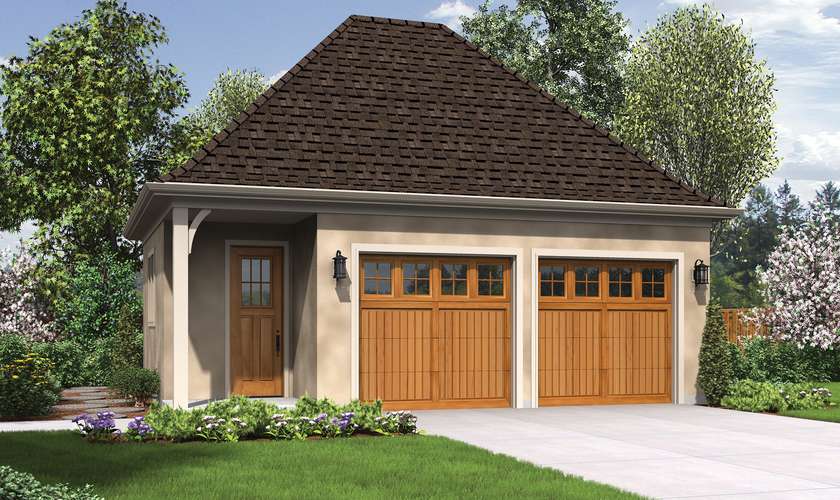

With the Monaco, the stucco siding, wood accents and steep roofline blend together to give this little garage lots of European personality. This garage plan pairs nicely with homes in Tudor, Mediterranean, French Country and other European styles — and it will give you the extra space you’ve always wanted for your collection of classic cars.

Cars aren’t the only reason to build this garage, however. Perhaps you want a woodworking shop of your very own. The Monaco will give you the space you need for tools, and there is plenty of open floor space to accommodate larger furniture projects or smaller jobs like shelves and wooden wall art.

Art enthusiasts and crafters alike will find that they have plenty of wall space for shelving and cabinetry — perfect for tucking away multitudes of art and craft supplies. Depending on your particular favorite pastime, you can use the remaining space for work benches, crafting tables or easels.

Of course, there are some hobbies that just don’t fit within the average home. Have you ever struggled to work on intricately detailed models and crafts while the kids and the family pet are underfoot? Or have you always wanted enough room to build the miniature layout of your dreams, but you’ve never had a spare room to devote to the project? If so, the Monaco will give you the space and privacy you need.

Home-based entrepreneurs will find that with some minor modifications, the Monaco can easily become a detached office. Simply ask to remove the garage doors and then fill the interior space with desks, office equipment, shelving and the tools of your trade. You’ll have a space that is all your own, free from whatever distractions await you inside your home.

How do you settle the debate over who gets to decorate your home’s den? You don’t! Let her turn the den into the sitting room she’s always wanted while you turn the Monaco into the man cave that all of your friends will envy. With comfortable seating, a big TV, a pool table and maybe even a bar, you’ll spend more time in the Monaco then you will at home.

This is only a sampling of the things that you can do with these garage plans. Let your imagination run wild and you’ll see that there are many more ways that you can put the Monaco to use!

Home Details

Beds and Baths

  • Floors

    1

Exterior Dimensions

Garage

  • Garage Bays

    2 Car Garage
  • Garage Area

    678 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    10/12

European

Some of the features of this home are 'European'. European homes come in many guises, since the term reflects homes styled after those in many countries; English Tudor, French Country, and Dutch Gable, to name a few. Beyond the country of origin, there's also the period of history from which the style emerged; Georgian, Victorian, Greek Revival; the list is almost endless. The homes shown in the collection below feature elements inspired by those found in countries across the Atlantic.

Farmhouse

This home features in our Farmhouse plans collection. Farmhouse is a general term for the main house of a farm. It is a type of building or house which serves a residential purpose in a rural or agricultural setting. Most often, the surrounding environment will be a farm. Many farm houses are shaped like a T. The perpendicular section is referred to as the ell. Architectural styles vary, but very often they are of Cape Cod design. In general styles vary from region to region, but more often the style is simplistic so to serve the needs (and the budget) of the owners.

French Country

French country is a style of home design inspired by the rural, rustic homes of the French countryside. It is characterized by its use of natural materials, such as stone, brick, and wood, and by its emphasis on comfort and warmth. French country homes often have a picturesque, charming appearance, with steep pitched roofs, arched windows and doors, and ornamental details such as shutters and window boxes. The exterior may be finished in a soft, muted color palette, and the interior may feature exposed wood beams, stone or brick fireplaces, and comfortable, welcoming furnishings. French country architecture often incorporates elements of traditional French design, such as formal gardens, patios, and courtyards, and may also include outdoor living spaces such as balconies, porches, and terraces.

Mediterranean

Our Mediterranean style house plan collection includes Spanish, Tuscan, Mission and Italian style homes. They typically have a low pitched or flat tile roof. There are arches at doors, windows and porches. Balconies feature ornamental ironwork. Exteriors are finished in stucco or masonry with terra cotta paver trim.

Choose Plan Set

Foundations

Additional Options

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

You can find this plan in these related styles and collections

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
