Mascord House Plan 1240A: The Lynville
The Lynville

Plan 1240A

Mascord House Plan 1240A: The Lynville

Rear Rendering

Plan 1240A - The Lynville - Wonderful modern house plan design with great amenities

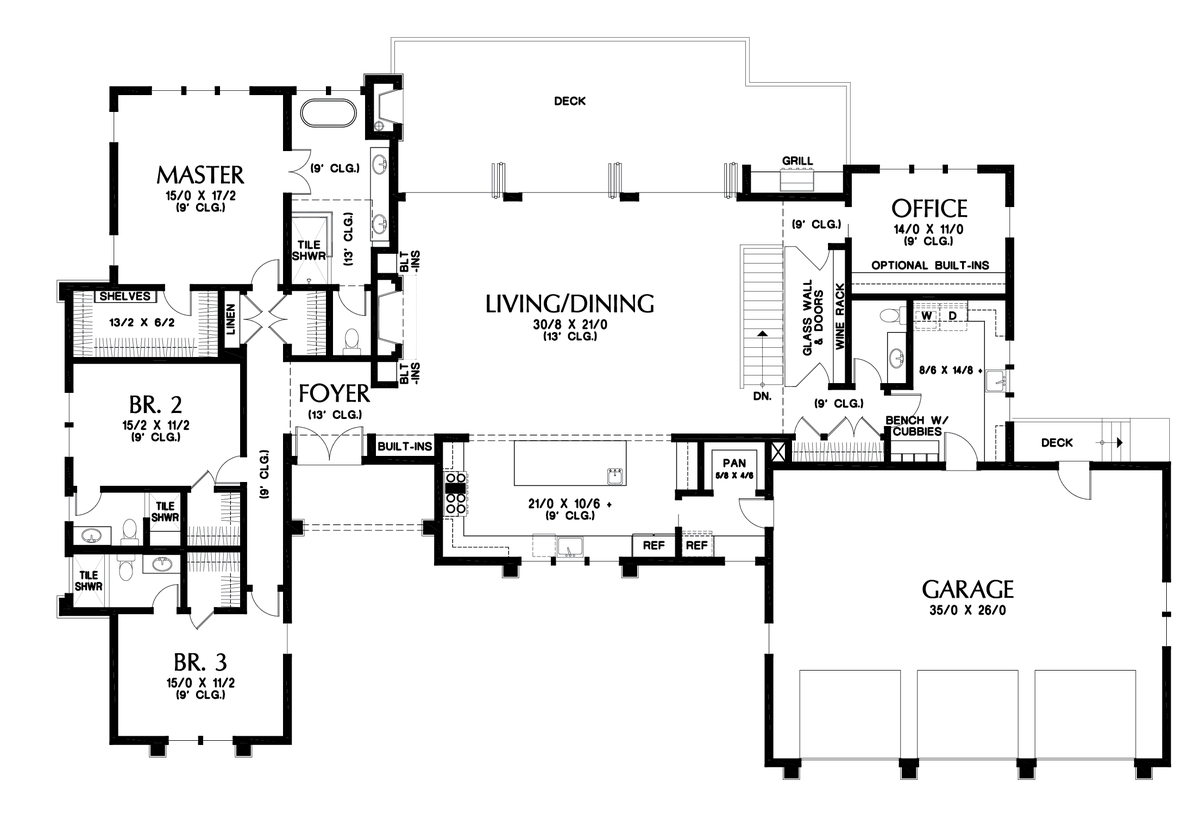

Main Floor Plan

Main Floor Plan image for Mascord Lynville-Wonderful modern house plan design with great amenities-Main Floor Plan

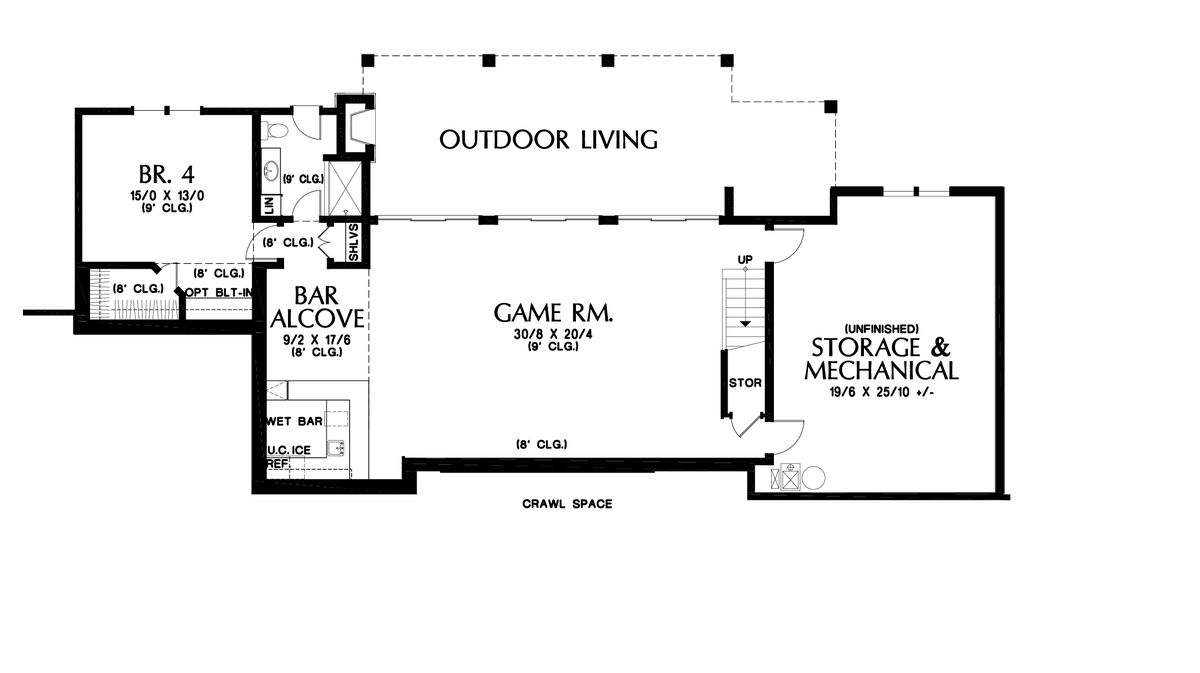

Lower Floor Plan

Lower Floor Plan image for Mascord Lynville-Wonderful modern house plan design with great amenities-Lower Floor Plan

A Walk Through The Lynville

Is this a contemporary home or a palace? That’s one thing you’ll never do without, that palatial sense of luxury that will follow you through the Lynville. Grandeur will greet you when you step through the front doors, into the foyer and beyond, to this home’s massive great room. A fireplace in this room lends a sense of comfort, and sliding doors across the back of the room offer you access to a second story deck where you’ll spend many beautiful summer evenings stargazing.

The kitchen overlooks this space, and with wraparound counters plus a large island, it’s a workspace fit for a chef. From here, not only can you see through to the great room, but also through the doors that overlook your backyard.

Two wings to either side of the main living space await on this home’s upper floor. One side features this home’s practical aspects: A three car garage, laundry room and mudroom plus closet space and a built-in wine rack. Here, too, a beautifully appointed home office will keep you hard at work on those precious work-from-home days. Design the office with your career in mind, choosing optional built-in shelving or cabinets as you so desire.

The opposite wing is devoted to bedrooms. This is where the Lynville’s luxury really shines. In each of the kid’s bedrooms, there are private baths. No sharing means streamlined mornings for the kids. Both rooms also feature large walk-in closets, too.

The master suite is a grander version of the two smaller bedrooms, designed to welcome you each night. The walk-in closet features shelving for shoes, jewelry and other accessories while the master bath gives you a large tiled shower and a spa tub for those evenings when you need to unwind.

The lower floor is where you’ll have the most fun. It starts with a large game room that comes with all kinds of possibilities. Do you want a home theater, or a pool table? Perhaps you’re more of a poker player, in need of a place to put card tables. This is the place to expand on those dreams! In addition, this area gives you an alcove with a full wet bar and ice machine—perfect to entertain your guests in style. Access to the lower floor outdoor living space gives guests ample opportunity to enjoy the great outdoors, too.

Of course, this home is sumptuous enough that some guests will be eager to stay a week or two. A fourth bedroom on the lower floor gives those stay-over guests privacy. With their own private bathroom and closet space, they’ll enjoy greater comfort than a hotel. There’s a chance that maybe when the visit is over, they won’t want to go home!

Home Details

Heated Space

  • Main Floor

    2959 SqFt
  • Basement

    1358 SqFt
  • Total Area

    4317 SqFt
  • Bsmnt (Unfin.)

    + 518 SqFt

Beds and Baths

  • Bedrooms

    4
  • Full Baths

    4
  • Half Baths

    1
  • Floors

    1

Exterior Dimensions

Garage

  • Garage Bays

    3 Car Garage
  • Garage Area

    957 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Structure

  • Roof Framing

    Stick
  • Roof Material

    Waterproof Membrane Roofing
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    1/12

Contemporary

Our Contemporary House Plans collection presents modern homes designed around light and space: open, airy and with an abundance of windows in various modern styles, these homes are generously appointed to bring ample light indoors. Unique rooflines and asymmetrical designs create rooms that feel as grand as they are innovative. With a focus on maximizing square footage and minimizing costs, these pioneering modern homes are as reasonable to build as they are pleasant to live in, which we're sure you'll love.

This plan is based upon another design - 1240
  • Added 1760 SqFt to finished area
  • Overall Width increased 20ft.
  • Overall Depth decreased 1ft.
  • Added a bedroom.
  • Added 2 bathrooms.
Check out the details for Plan 1240 here.

Choose Plan Set

Foundations

Additional Options

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Similar and Related Plans

View home in 360 degrees
Plan 1240 The Hampton
Photography of house plan 1240 Printable Page of House Plan 1240
  • 2557 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    1
  • Width:

    78'-0"
  • Depth:

    62'-6"
Plan B1240C Bsmt Goldsboro
  • 2645 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    1
  • Width:

    88'-0"
  • Depth:

    66'-6"

Plan 1240C with an
In-Ground Basement

Plan 1240D The Clarksville
Photography of house plan 1240D Printable Page of House Plan 1240D
  • 3073 sq.ft.
  • Bedrooms:

    4
  • Baths:

    3
  • Half Baths:

    1
  • Stories:

    1
  • Width:

    100'-4"
  • Depth:

    67'-2"

You can find this plan in these related styles and collections

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
