Home fit for a Captain! Design featured on hit TV show Grimm
- 2988 SqFt
- 4 Beds
- 4 Baths
- 2 Floors
- 1 Car Garage
Main Floor Plan
Upper Floor Plan
Lower Floor Plan
Upper Floor1123 SqFt
Main Floor1175 SqFt
Total Area2988 SqFt
Height (to Midpt)21'-9"
Roof MaterialMetal/Standing Seam Roof
Wall Framing2 x 6
Main Roof Pitch2/12
Additional Code ComplianceCity of Portland
Garage Bays1 Car Garage
Garage Area315 SqFt
A Walk Through The Renard

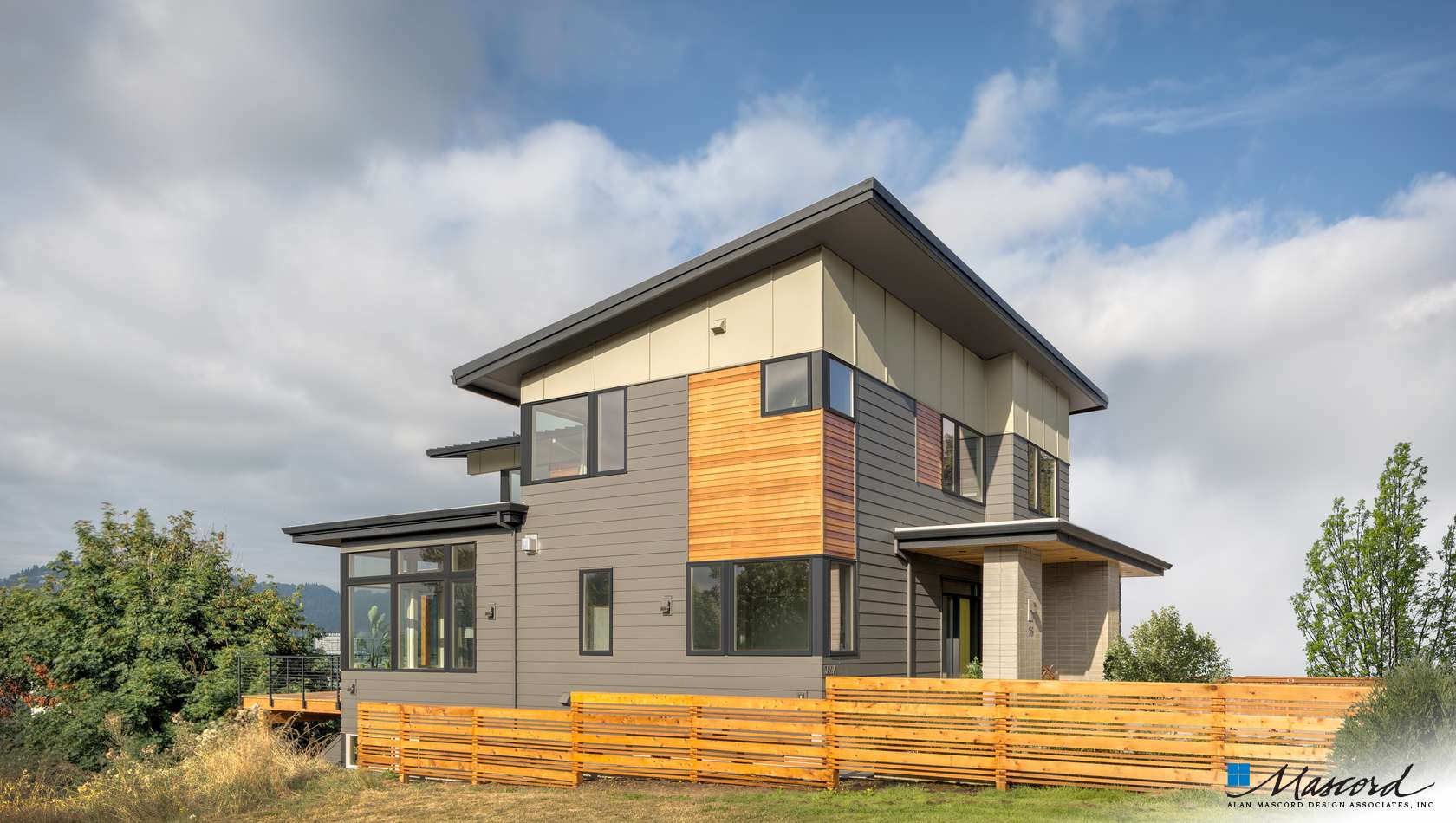

Few homes feature the sleek, sophisticated modernity of the Renard. The mixture of exterior textures and colors is both stylish and inviting. Your home will certainly stand out from all the rest in your neighborhood.
Inside, you’ll find a living space tailor made for busy young Millennials. The first room you’ll encounter is the home office, which features closet space and built-in cabinetry. You’ll spend many hours here, growing your home-based business or telecommuting.
Moving further into the house, you’ll find a posh, modern living space. The great room, dining area and kitchen blend seamlessly together, giving you a massive space to host friends or coworkers. Best of all, this is a second story space that is packed tall windows, giving you and your guests an impressive view of the sparkling city lights below your home. In the winter, make sure you’ve got a roaring fire going in the fireplace so that everyone can gather around and warm up. In the summer, the second level porch will be everyone’s favorite place. Grill out on the built-in barbecue, or pull up chairs and enjoy drinks as you stargaze.
The upper floor is all about practicality. Here, you’ll find the master bedroom, richly appointed master bathroom and a second bedroom with ensuite bathroom. The laundry room is located on this floor, making laundry day convenient, and there is also an exercise area spacious enough for any equipment you desire. In a house this nice, you will certainly want to stay home as much as possible. Why not save time and money on trips to the gym by creating your own home gym?
The Renard’s lower floor gives you so many possibilities. If you have kids in college, then this area can serve as a small apartment, complete with private bedroom, bathroom and kitchenette. Whether you are hosting family or guests, they’ll be treated to privacy and all the amenities of a full-sized home.
If you don’t plan to host guests or use the space as an apartment, then the lower floor becomes an amazing entertainment room. The kitchenette makes an ideal wet bar and you’ll have plenty of space for card tables, a pool table or whatever activities you and your friends love most. A door opens out onto a secluded patio, which is the perfect place to take a break from the festivities. You’ll almost certainly need to use this floor’s bedroom as a guest bedroom because when your friends come over to play, they’ll fall so in love with your home that they won’t want to leave!
Plan Package Options
Modify This Plan
Tell us what you'd like to change, and we will prepare a quote to implement your required changes
How much will this home cost to build?
With StartBuild, You can find the construction costs to build this home plan in your location and with your specific material choices
Have other questions?
If you can't find the information you need online please contact usCall: 1-800-411-0231 Mon-Fri : 8am - 5pm PST
Why you should buy your Mascord plan directly from us
We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.
As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!
We only publish a small subset of 'base plans' through our publishing outlets and thrid party websites, but have direct access to thousands of previously modified versions in our inventory. Working with is directly, we can work to find the version that suits you best - sometimes without the need to modify further.
If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.
We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.
Will This Design Work For Your Location?
The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.
In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.
Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.
When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.
All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).
Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.
To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"
If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.
We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.
Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.
In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.
