Mascord House Plan 23105: The Ridley
The Ridley

Plan 23105

Mascord House Plan 23105: The Ridley

Rear Rendering

Plan 23105 - The Ridley - Rich Craftsman with Luxurious Extras

Main Floor Plan

Main Floor Plan image for Mascord Ridley-Rich Craftsman with Luxurious Extras -Main Floor Plan

Upper Floor Plan

Upper Floor Plan image for Mascord Ridley-Rich Craftsman with Luxurious Extras -Upper Floor Plan

A Walk Through The Ridley

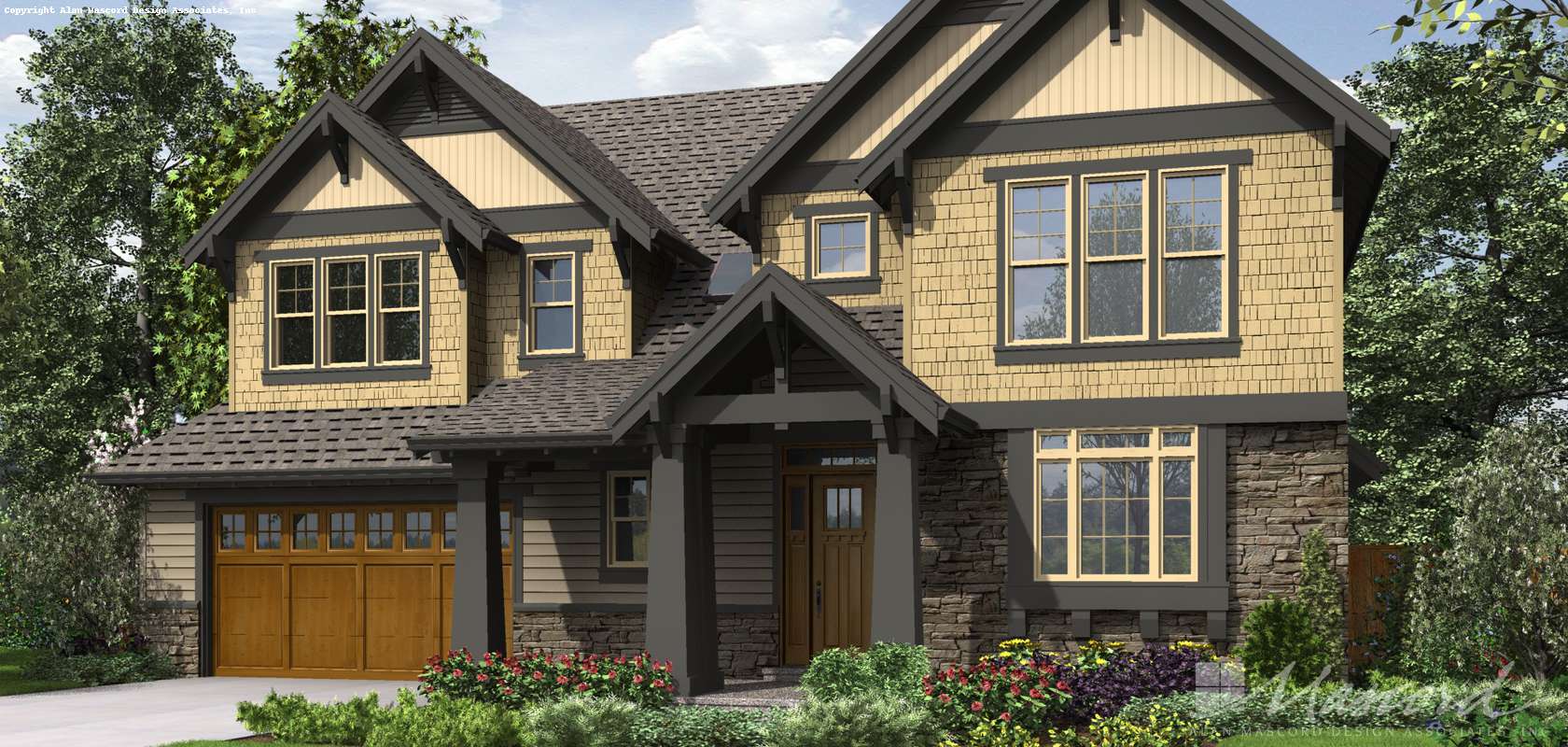

Not all Craftsman homes are created equally! The first time you set foot inside the Ridley, you’ll understand that this home is definitely a cut above the rest. Just look at the outside — stone, shake and clapboard siding, exposed timbers and solid pillars supporting the porch. Each detail gives tells a story about fine craftsmanship even as it complements your natural landscape. This is the sort of home that is suited to a hidden lake shore or another peaceful place where you can spend years enjoying the beauty of nature from the comfort of this modern Craftsman home.

When you wake up for the first time in the Ridley’s master suite, there’s no need to try and remember that sense of joy and comfort because it is a feeling that you’ll experience each and every morning that you spend in this home. Take a minute to look out over the lake through one of the windows, then proceed to the master bathroom, where you can enjoy a resort-like experience. Under the vaulted ceiling, you can go for a hot soak in the spa tub or a cool rinse in the tiled shower — the choice is yours. When it comes to choosing your wardrobe, there are his-and-hers walk-in closets, which keep your mornings streamlined and organized.

Once your morning routine is complete, you’ll have several options as to what to do next. If you’re feeling hungry, how about a light breakfast in the Ridley’s large kitchen? On the other hand, if the morning sunlight has you feeling inspired, then you can go straight to the home office and get the day’s work done.

When it comes to evening fun, you’ll have no lack of options in this home. On peaceful evenings, settle down in front of the great room’s fireplace and watch as the sun sets over the lake. When the weather is nice, you and your partner can enjoy a candlelit dinner out on the patio.

On the upper floor, there is a large games room that can be put to a variety of uses. Devote this room to your children so that you can spend hours playing games and enjoying quality time together. Or, with the addition of a few card tables, you and your friends can enjoy more grown-up pastimes. No matter what you choose to do — not just in the games room, but anywhere in this home — the Ridley can accommodate your unique lifestyle.

Home Details

Heated Space

  • Upper Floor

    1805 SqFt
  • Main Floor

    1397 SqFt
  • Total Area

    3202 SqFt

Beds and Baths

  • Bedrooms

    3
  • Full Baths

    2
  • Half Baths

    1
  • Floors

    2

Exterior Dimensions

Garage

  • Garage Bays

    2 Car Garage
  • Garage Area

    737 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    10/12

Craftsman

The Mascord collection of craftsman house plans highlight features that were first introduced with the Arts and Crafts movement, which thrived from 1876-1915, and continues to be celebrated today. These homes have great curb appeal, lots of detail and the amenities you need for modern living. Check out the collection for more great home designs.

Choose Plan Set

Foundations

Additional Options

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Similar and Related Plans

Plan 22154A The Montgomery
Printable Page of House Plan 22154A
  • 2605 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    2
  • Width:

    50'-0"
  • Depth:

    42'-0"

You can find this plan in these related styles and collections

Builders known to be experienced constructing this home include:

Pacific Grand Homes Beaverton, OR 5036621080
(find more builders in our Builder Directory)

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
