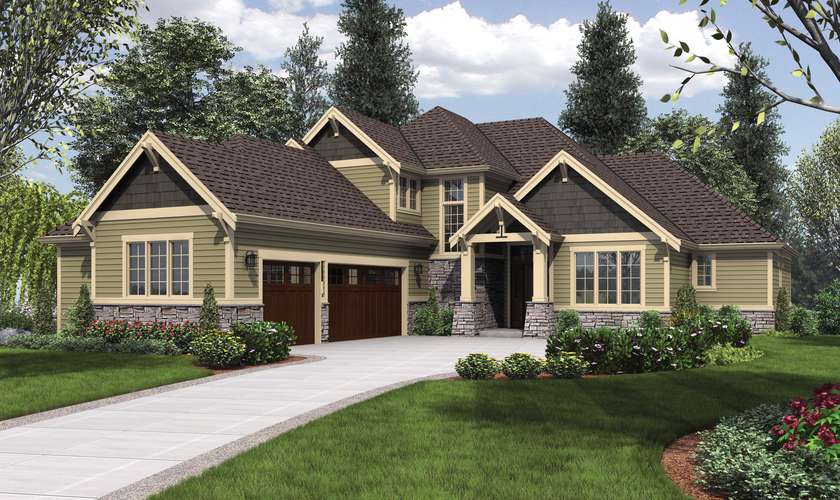

The Vidabelo

House Plan 2396

Also available with a
Full In-Ground Basement

Elegant Craftsman with Double Master Suites

  • 3084 SqFt
  • 4 Beds
  • 3 Baths
  • 1 Pwdr
  • 2 Floors
  • 3 Car Garage

Floor Plans

Image for Vidabelo-Elegant Craftsman with Double Master Suites-Main Floor Plan

Main Floor Plan

Image for Vidabelo-Elegant Craftsman with Double Master Suites-Upper Floor Plan

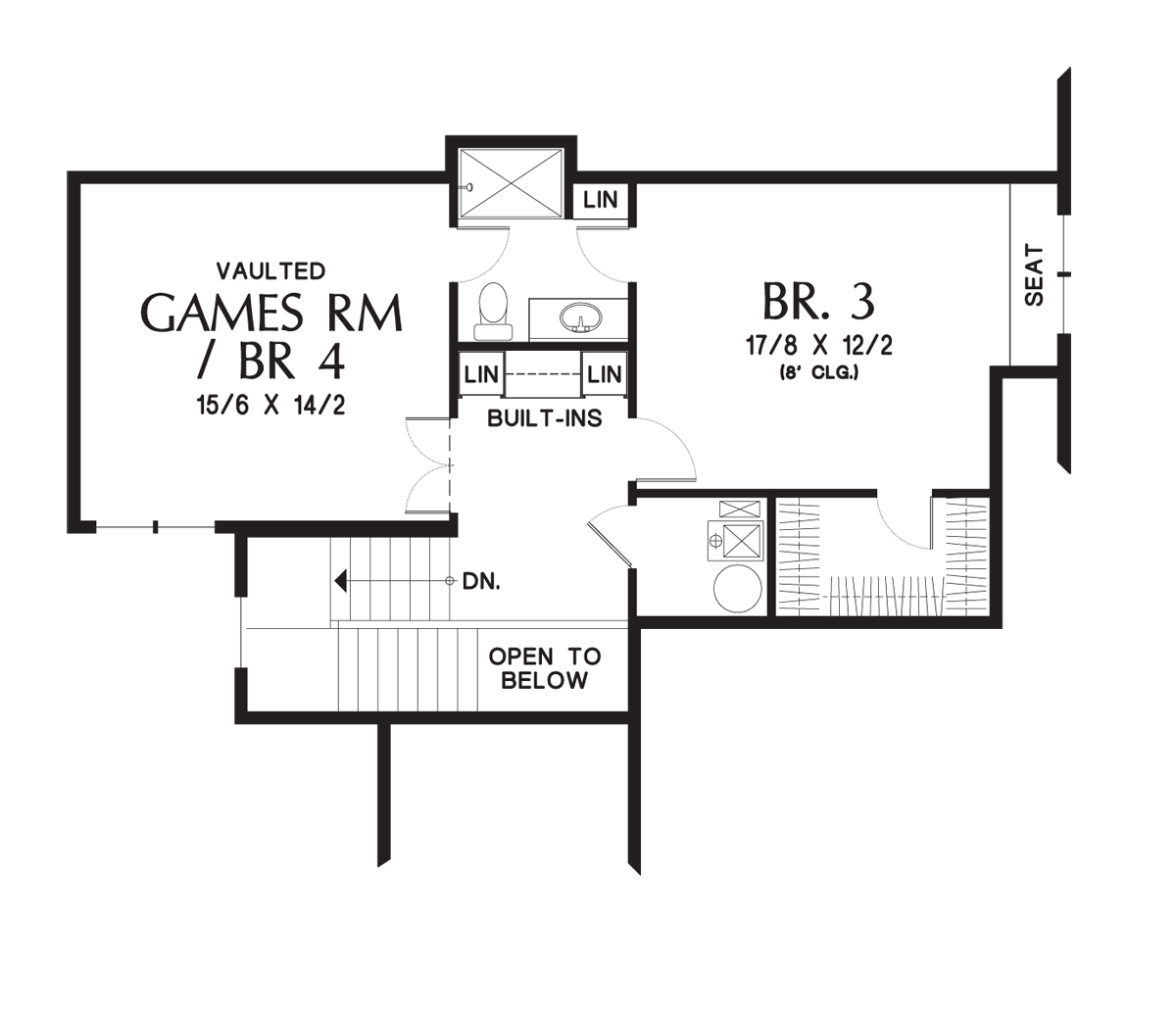

Upper Floor Plan

Home Details

Heated Area

  • Upper Floor

    720 SqFt
  • Main Floor

    2364 SqFt
  • Total Area

    3084 SqFt

Amenities

  • Bedrooms

    4
  • Full Baths

    3
  • Half Baths

    1
  • Floors

    2

Dimensions

Featured Collections

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    10/12

Garage

  • Garage Bays

    3 Car Garage
  • Garage Area

    841 SqFt
  • Garage Location

    Side
  • Garage Orientation

    L-Shaped

Foundations

  • Joisted Crawlspace (default)
  • Post & Beam @ 32" O/C (optional)
  • Slab (paid upgrade)

A Walk Through The Vidabelo

Featured in the 2011 Clark County Parade of Homes - The Vidabelo is a gorgeous mix of traditional craftsmanship and 21st century living. WIth defined areas for hobbies, entertaining and private hideaways, the Vidabelo molds itself around your lifestyle, so you can relax and live your life comfortably and stress free.

The traditionally styled Vidabelo home is perfect for families in need of a stress free, spacious, and comfortable living environment. It comes equipped with three bedrooms, three full bathrooms, a substantial amount of storage space, and a great assortment of entertainment areas and private hideaways.

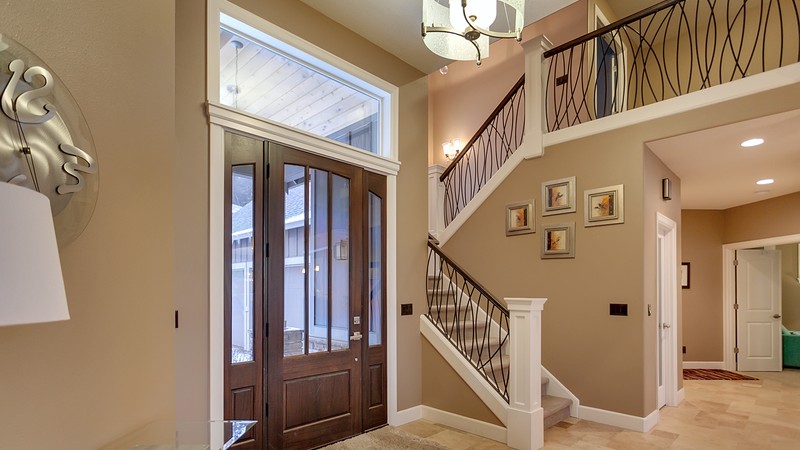

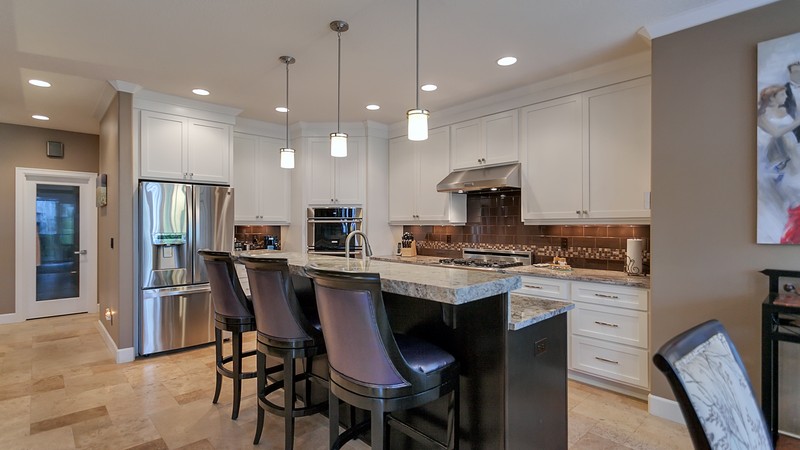

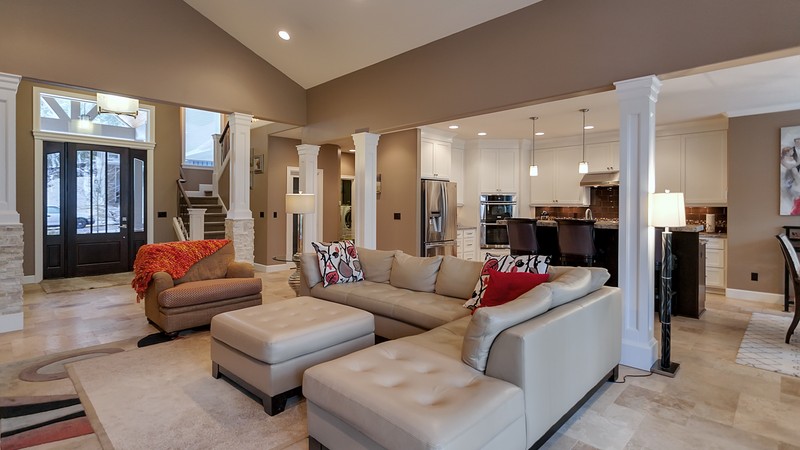

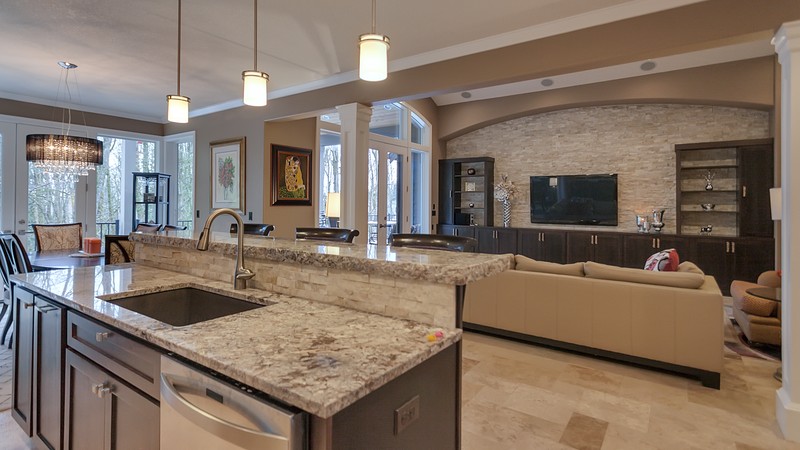

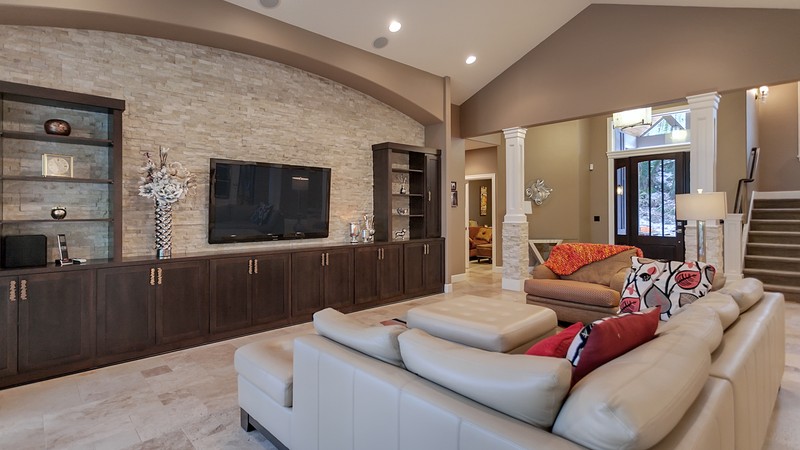

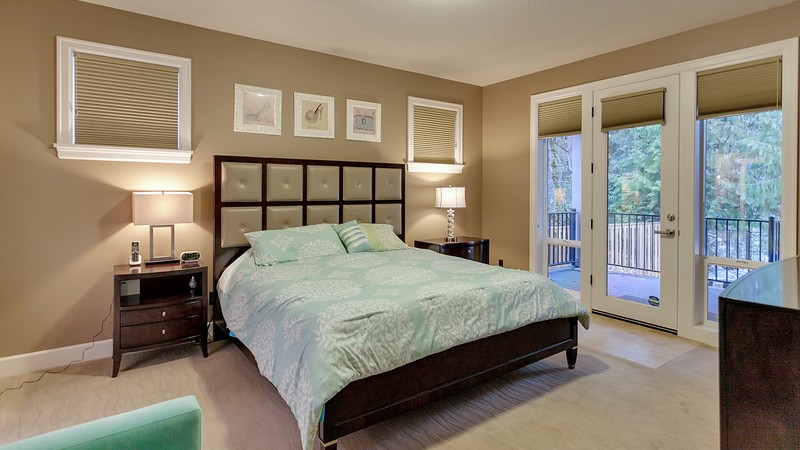

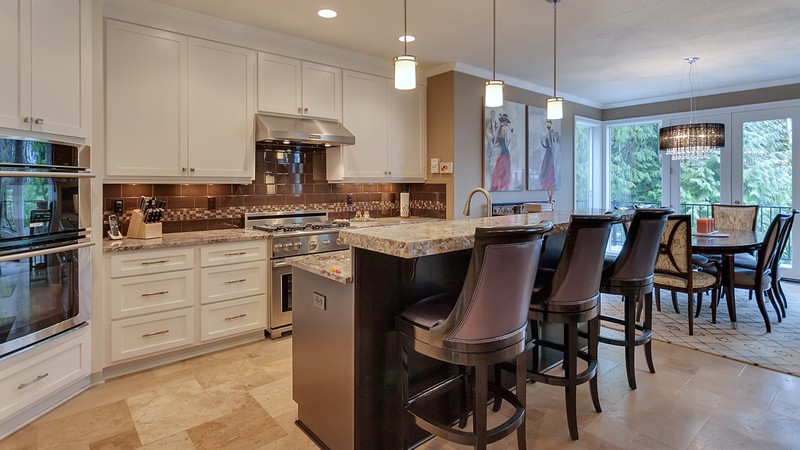

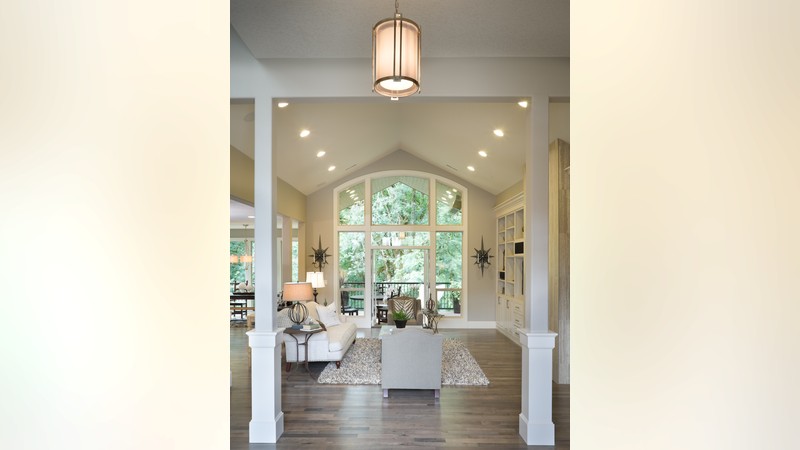

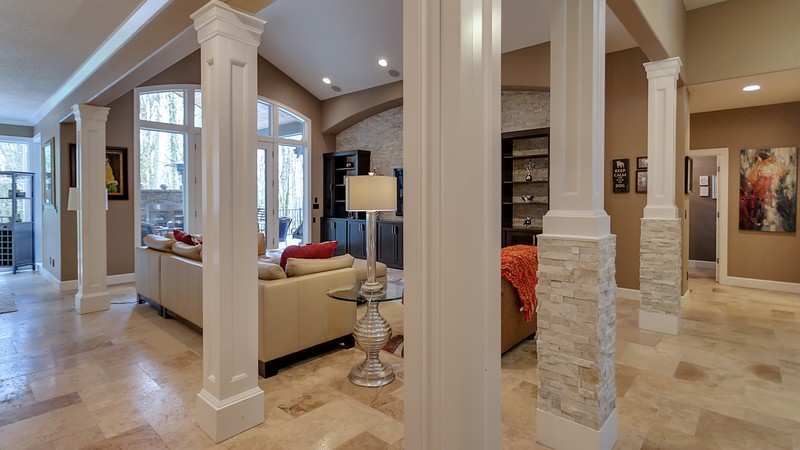

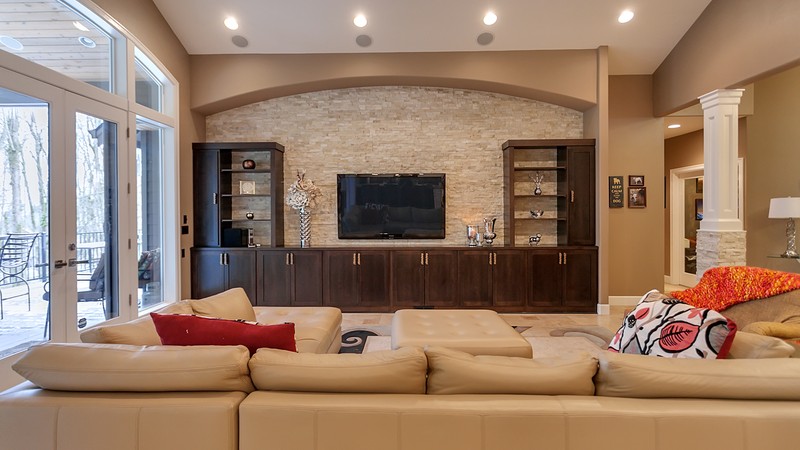

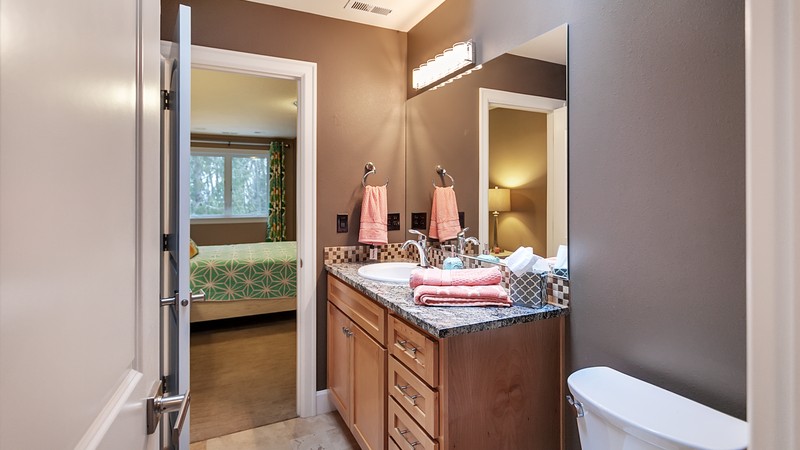

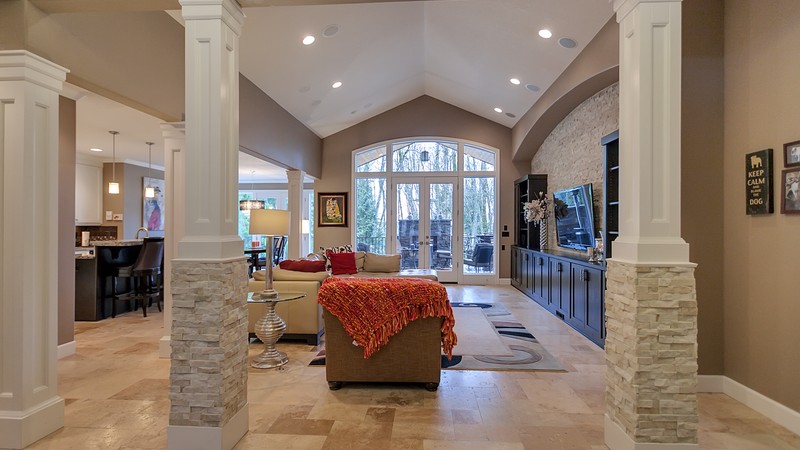

What is fantastic about this multiple generation home is that not only does it mold to fit your lifestyle but its design also reflects and supports a modern life while adding the elegance and style of a traditional Craftsman. A lovely porch serves as the entryway leading into the foyer and just beyond that is a fantastic vaulted great room, perfect for family gatherings. This room opens up to the kitchen and dining room, creating an open and free-flowing atmosphere. Several smaller rooms, including a cozy den, are tucked away for when you want to work on a hobby or have a quiet moment to yourself. The two master bedroom suites are located on either side of the main floor, each equipped with a full bathroom and plenty of closet space.

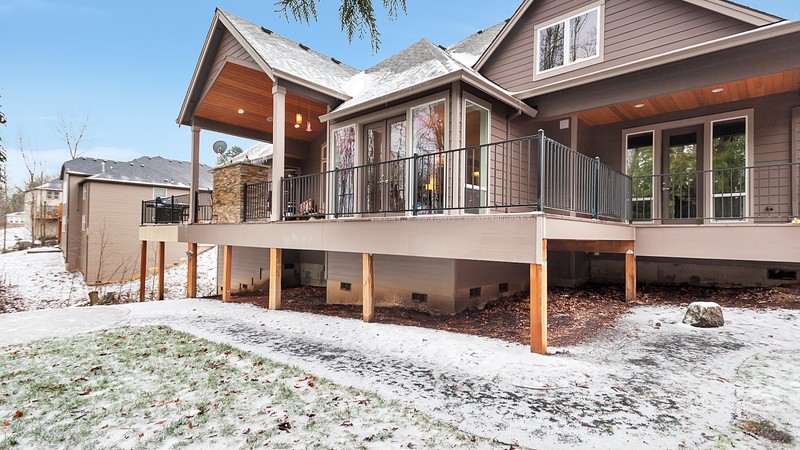

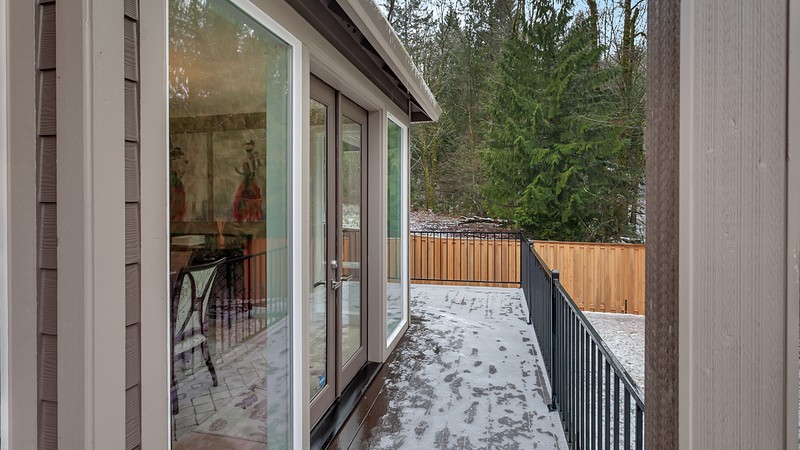

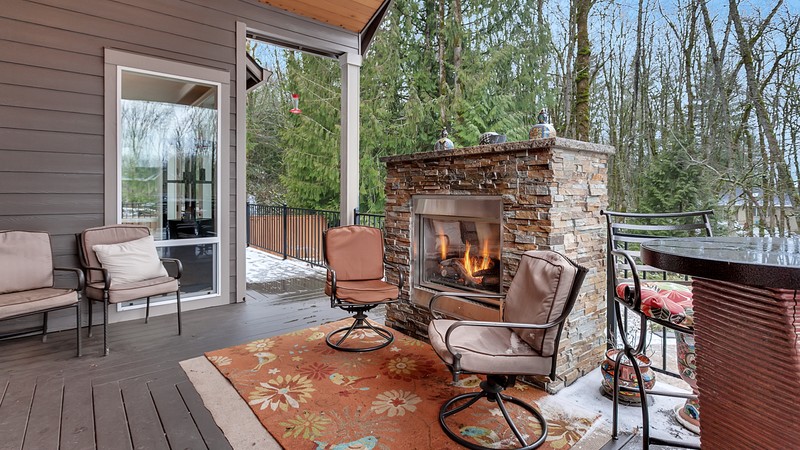

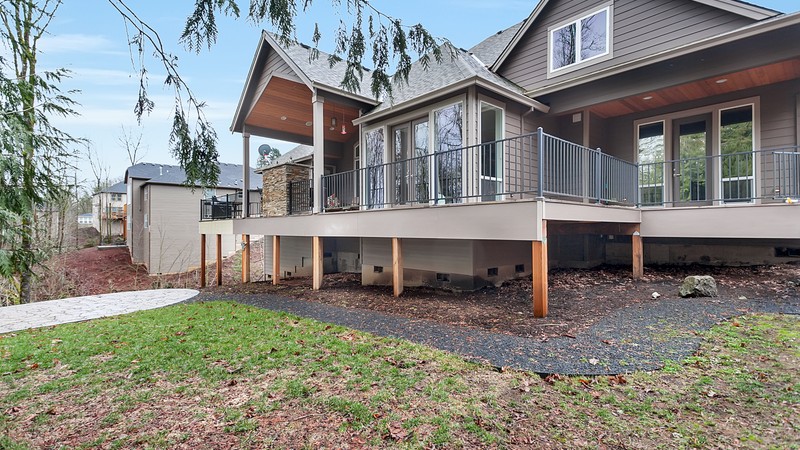

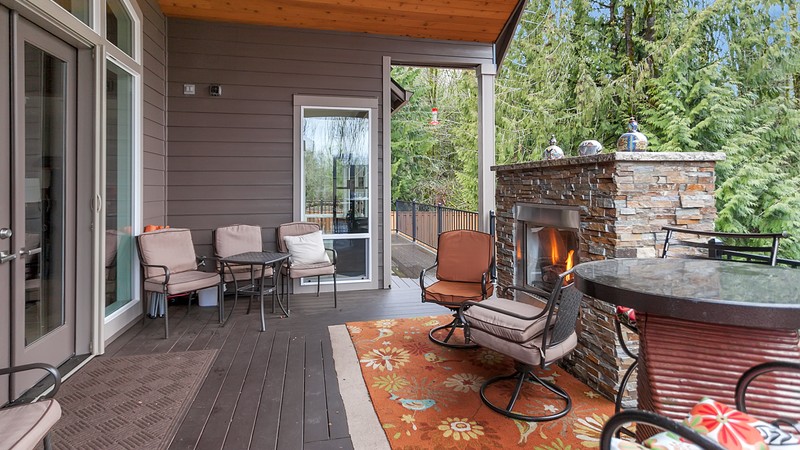

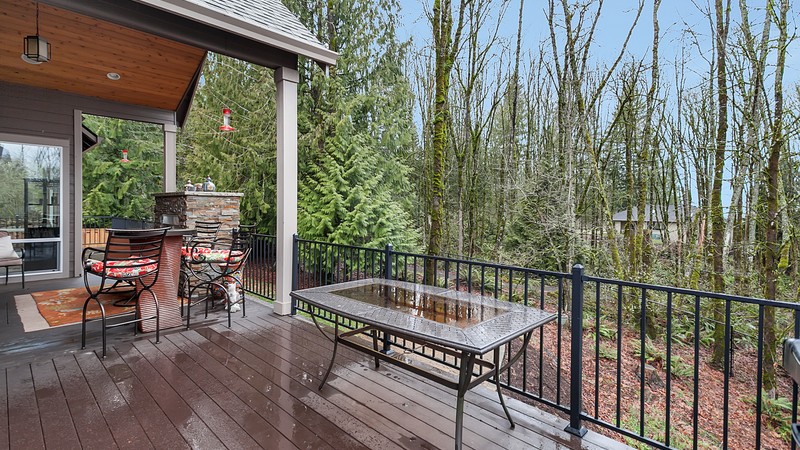

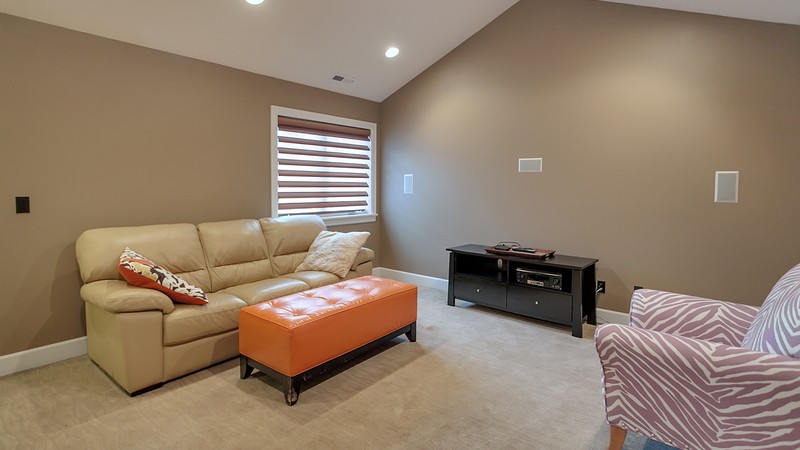

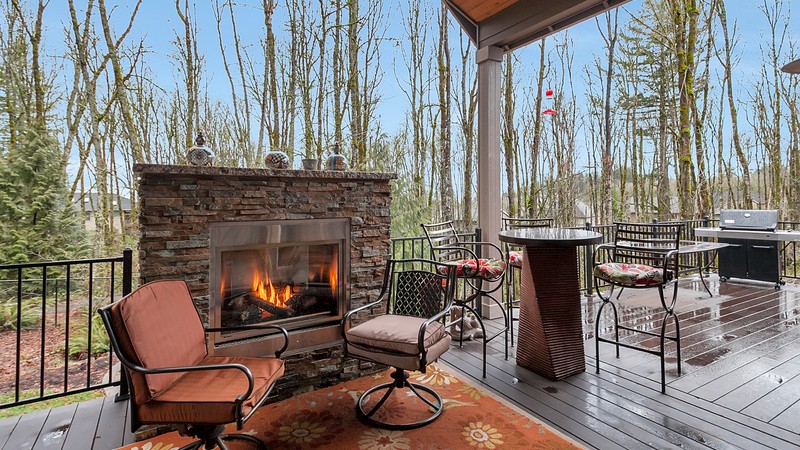

Upstairs features the third bedroom and full bathroom along with a vaulted bonus room that can be utilized however you see best fit. Our tour is not quite over yet; we must not forget the spacious three car garage that can serve as a great storage space. There is also the vaulted porch leading out to the backyard and sprawling deck for those who like to enjoy and make the most of their outdoor space.

Additional Photos



Similar / Related Plans

Plan 2393 The Mountainview
  • 3564 sq.ft.
  • Bedrooms:

    3
  • Baths:

    3
  • Half Baths:

    1
  • Stories:

    2
  • Width:

    90'-0"
  • Depth:

    95'-10"

A Luxurious Home Built Around Entertainment

Architectural Styles Associated With This Design

This plan is featured in the following collections
which may also be of interest to you

Why buy from us?

We are the original designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

Firstly, as the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

Secondly, as owners and original designers of all the plans in our collection, we have ultimate version control of all the construction drawings, and regularly update our drawings to meet forever changing building codes. Buying directly means that plan support comes directly from the creators of the design. We also have exclusive access to our entire catalog of CAD drawings, with the ability to modify them quickly and cost effectively, or even provide a previously modified version of a stock plan that is not available with any other authorized seller. Call our customer care staff to discuss any modifications you would like to have done, and if the modification exists already - it can save you lots of time and cost. You're not going to find that anywhere else!

Furthermore, we know our plan collection inside out! If you have questions about an element in the design, or even a question during construction - we are the ones able to answer those questions for you, quickly and accurately.

We support all of the plans we sell, and purchasing direct, you're able to take advantage of the high level of customer service we provide. If you have any questions, or to simply place an order for your home plans, call 800 411 0231.

Will This Design Work For Your Location?

All house plans licensed by Alan Mascord Design Associates Inc are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states). We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

To find out exactly what details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

Your area may have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and entire construction drawings stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
