Plan 4047 - The Coen - Desirable Shed Roof Contemporary Duplex Floor Plan

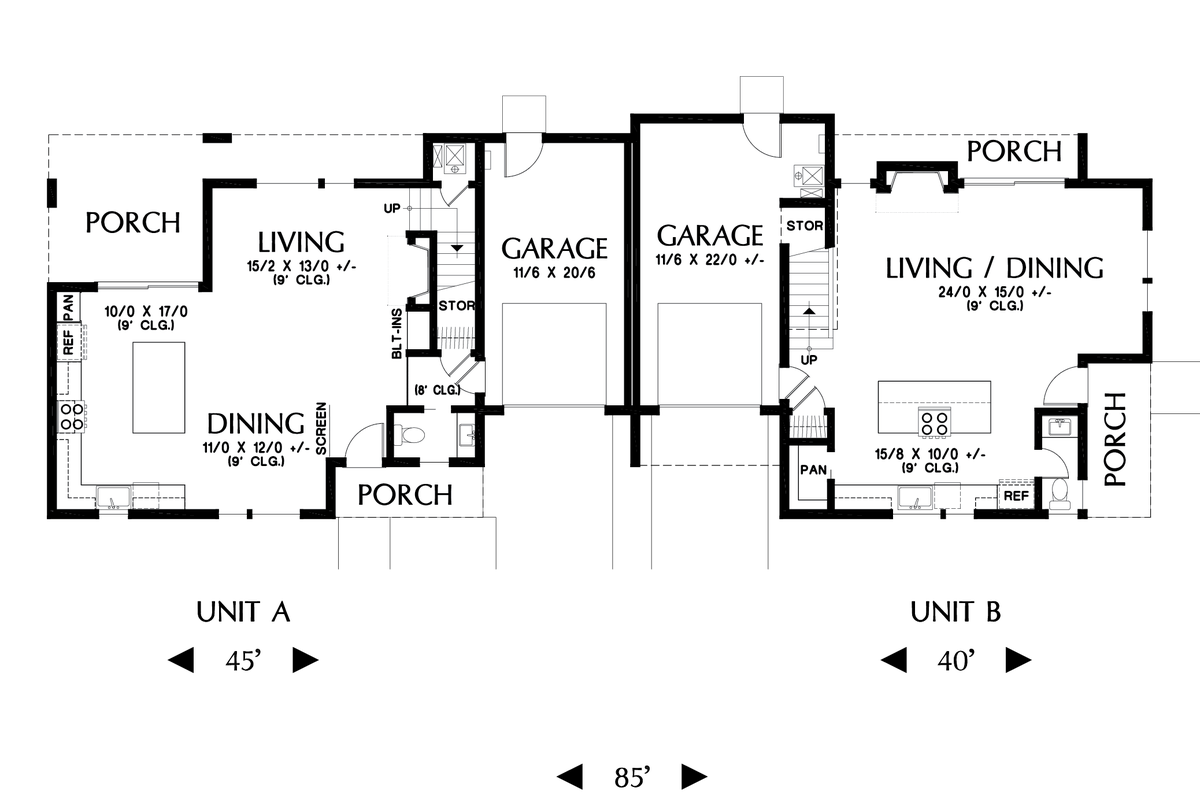

Main Floor Plan

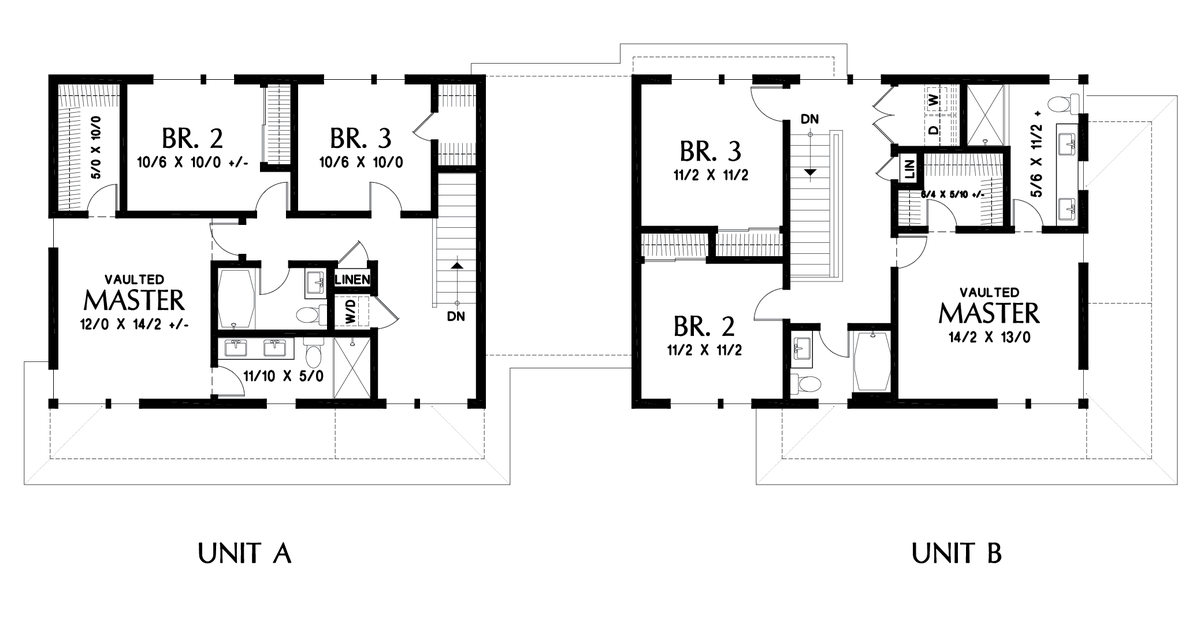

Upper Floor Plan
Upper Floor817 SqFt
Main Floor745 SqFt
Total Area1562 SqFt
Upper Floor858 SqFt
Main Floor687 SqFt
Total Area1545 SqFt
Upper Floor1675 SqFt
Main Floor1432 SqFt
Total Area3107 SqFt
Height (to Midpt)21'-10"
Roof MaterialMetal/Standing Seam Roof
Wall Framing2 x 6
Main Roof Pitch2/12
Additional Code ComplianceCity of Portland
Our Contemporary House Plans collection presents modern homes designed around light and space: open, airy and with an abundance of windows in various modern styles, these homes are generously appointed to bring ample light indoors. Unique rooflines and asymmetrical designs create rooms that feel as grand as they are innovative. With a focus on maximizing square footage and minimizing costs, these pioneering modern homes are as reasonable to build as they are pleasant to live in, which we're sure you'll love.
