Plan 4050 - The Grady - Contemporary Duplex with Modern Ameneties

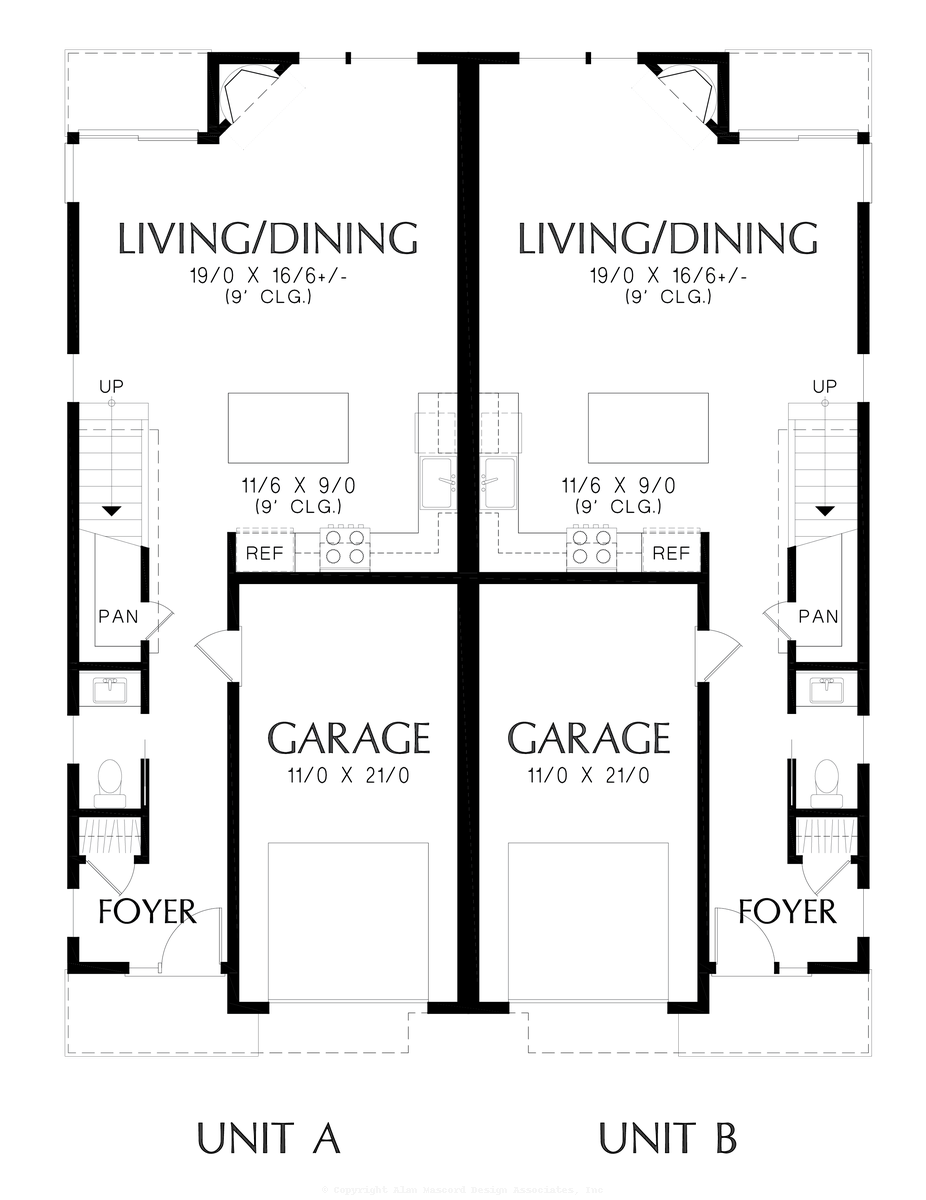

Main Floor Plan

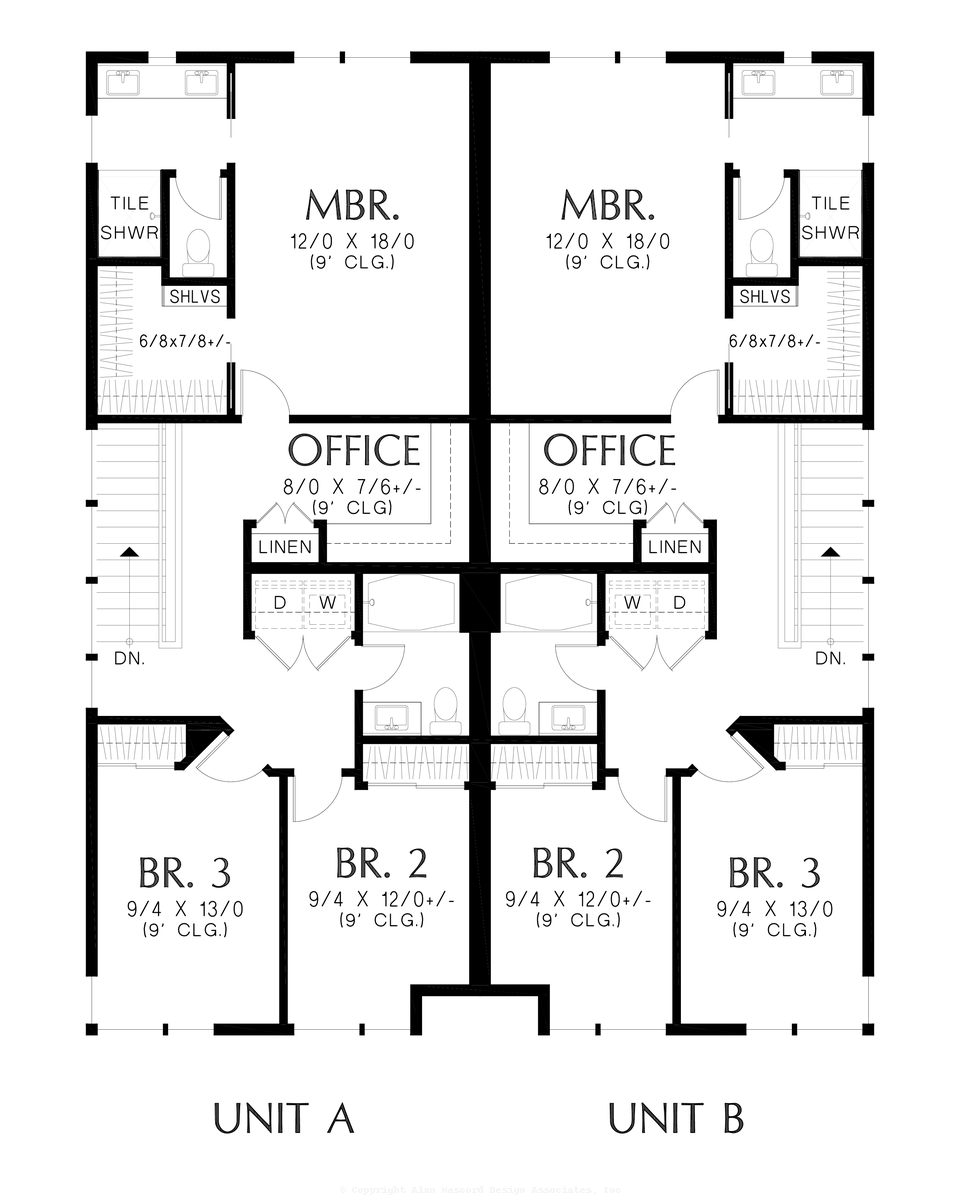

Upper Floor Plan
A Walk Through The Grady
This contemporary duplex home is a wonderful design that combines modern aesthetics with practical living. Spanning a total area of 3224 square feet, this stunning two-story house offers ample space for a multifamily living scenario.
Each side of the duplex is a mirror image, providing each household with an equal share of the home's features. Each unit consists of three bedrooms and two full baths, with an additional half bath for guests' convenience.
The first floor of each unit features an open layout, with a combined living and dining area for easy socializing. A walk-in pantry and an office or den space add to the practicality of the design. The second floor houses the bedrooms, ensuring privacy and quiet for the residents.
The exterior facade features a mix of Hardi-Panel and siding, showcasing a contemporary style that's sure to stand out in any neighborhood while reducing expensive materials for the cost-conscious builder. The duplex also includes a garage for each unit, providing secure and convenient parking.
Other noteworthy features include a utility room on the same level as the master bedroom, a bonus for those who want to minimize stairs in their daily routines. With its modern amenities and thoughtful design, this duplex is the perfect choice for those looking for a stylish, comfortable, and practical living space.
Upper Floor944 SqFt
Main Floor668 SqFt
Total Area1612 SqFt
Upper Floor944 SqFt
Main Floor668 SqFt
Total Area1612 SqFt
Upper Floor1888 SqFt
Main Floor1336 SqFt
Total Area3224 SqFt
Height (to Midpt)22'-9"
Roof MaterialShake/Comp Roof
Wall Framing2 x 6
Main Roof Pitch4/12
