Plan 5038A - The Aberdare Park - Garage Plan with Studio Apartment Above
1 Car Garage
Main Floor Plan
Upper Floor Plan

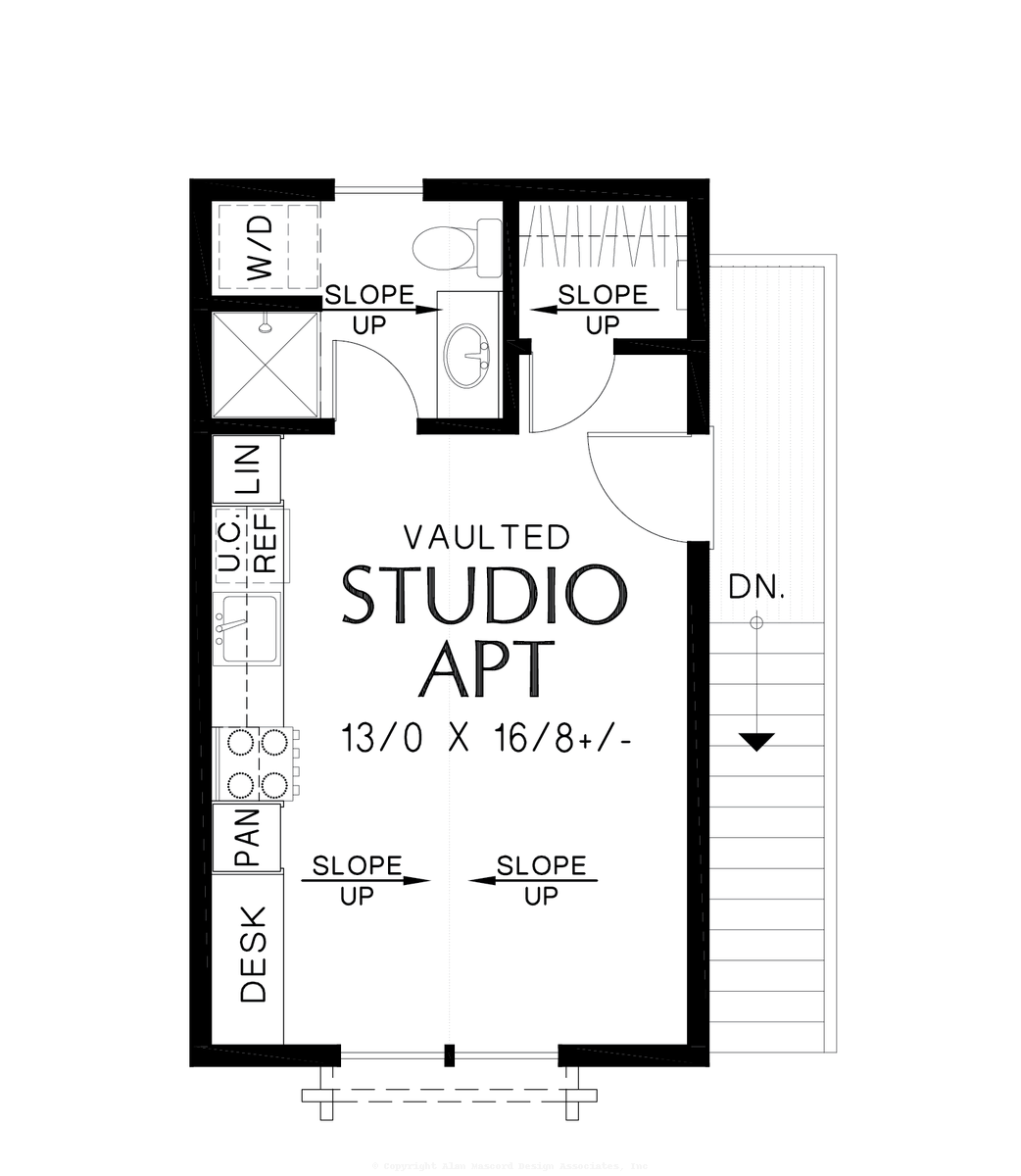

Upper Floor336 SqFt
Total Area336 SqFt
Beds and Baths
Height (to Midpt)20'-6"
Garage Bays1 Car Garage
Garage Area336 SqFt
Roof MaterialShake/Comp Roof
Wall Framing2 x 6
Main Roof Pitch10/12
This home is typical of the cottage style. In modern usage, a cottage is usually a modest, often cozy dwelling, typically in a rural or semi-rural location. However there are cottage-style dwellings in cities, and in places such as Canada the term exists with no connotations of size at all (cf. vicarage or hermitage). In the United Kingdom the term cottage also tends to denote rural dwellings of traditional build, although it can also be applied to dwellings of modern construction which are designed to resemble traditional ones ("mock cottages").
The Mascord collection of craftsman house plans highlight features that were first introduced with the Arts and Crafts movement, which thrived from 1876-1915, and continues to be celebrated today. These homes have great curb appeal, lots of detail and the amenities you need for modern living. Check out the collection for more great home designs.
This plan has been chosen as part of our vacation home collection. Vacation homes generally have central, open living spaces and offer a great connection to the outdoors, perhaps including an outdoor kitchen or BBQ area. Some homes will have just a few bedrooms, creating a cozy private get-away for your family. Other homes will feature many bedrooms, designed fords family get-togethers at the coast or in the mountains - a place you can invite friends and family to join you in outdoor fun.
This plan is based upon another design - 5038
