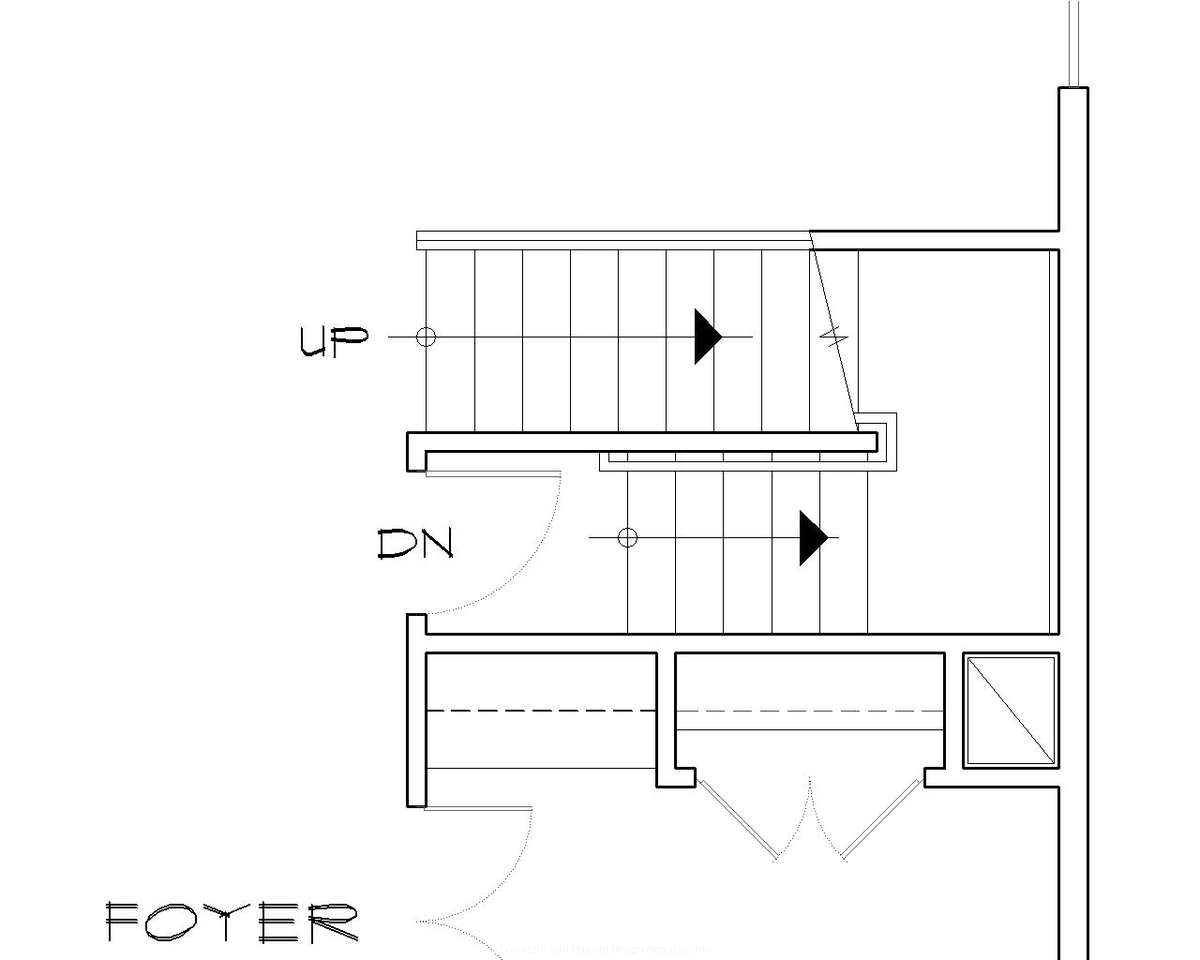

Plan 22122U Basement Details
Plan 22122U - The Dinsmore - Basement Details
- 2729 (+397 Bonus)
2 / 1
3 Car Garage
Main Floor Plan
Upper Floor Plan
Basement Floor Plan
Photographed Homes May Include Modifications Not Reflected in the Design
A Walk Through The Dinsmore
Tall, dark and handsome: this 5-bedroom stunner features a striking, cross-gabled roof, cedar shingle siding and decorative, impermeable stone along its dramatic façade. Inside: high ceilings make an impression (from the breathtaking, two story great room and vaulted master suite to the vaulted entry and upstairs loft space) while an intimate dining nook, a butler's pantry, multiple bonus spaces and comfortably private bedrooms ground the open, malleable layout. With a three-car garage, attic storage, plentiful built-ins and a large storage/closet space on the main: you'll find this home's conscious construction as fetching as its aesthetic charms.
Upper Floor901 SqFt
Main Floor1828 SqFt
Bonus+ 397 SqFt
Bsmnt (Unfin.)+ 1693 SqFt
Beds and Baths
Height (to Midpt)24'-3"
Garage Bays3 Car Garage
Garage Area719 SqFt
Roof MaterialShake/Comp Roof
Wall Framing2 x 6
Main Roof Pitch10/12
