Mascord House Plan 1160: The Dublin

The Dublin

Plan 1160

  • 1268 SqFt
  • 2 Beds
  • 2 Baths
  • 1 Floor
  • No Garage

Home Details

Heated Space

  • Main Floor

    1268 SqFt
  • Total Area

    1268 SqFt

Beds and Baths

  • Bedrooms

    2
  • Full Baths

    2
  • Floors

    1

Exterior Dimensions

Garage

  • Garage Bays

    No Garage
  • Garage Location

    None
  • Garage Orientation

    None

Notable Features

Structure

  • Roof Framing

    Stick
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    1/12

A Walk Through The Dublin

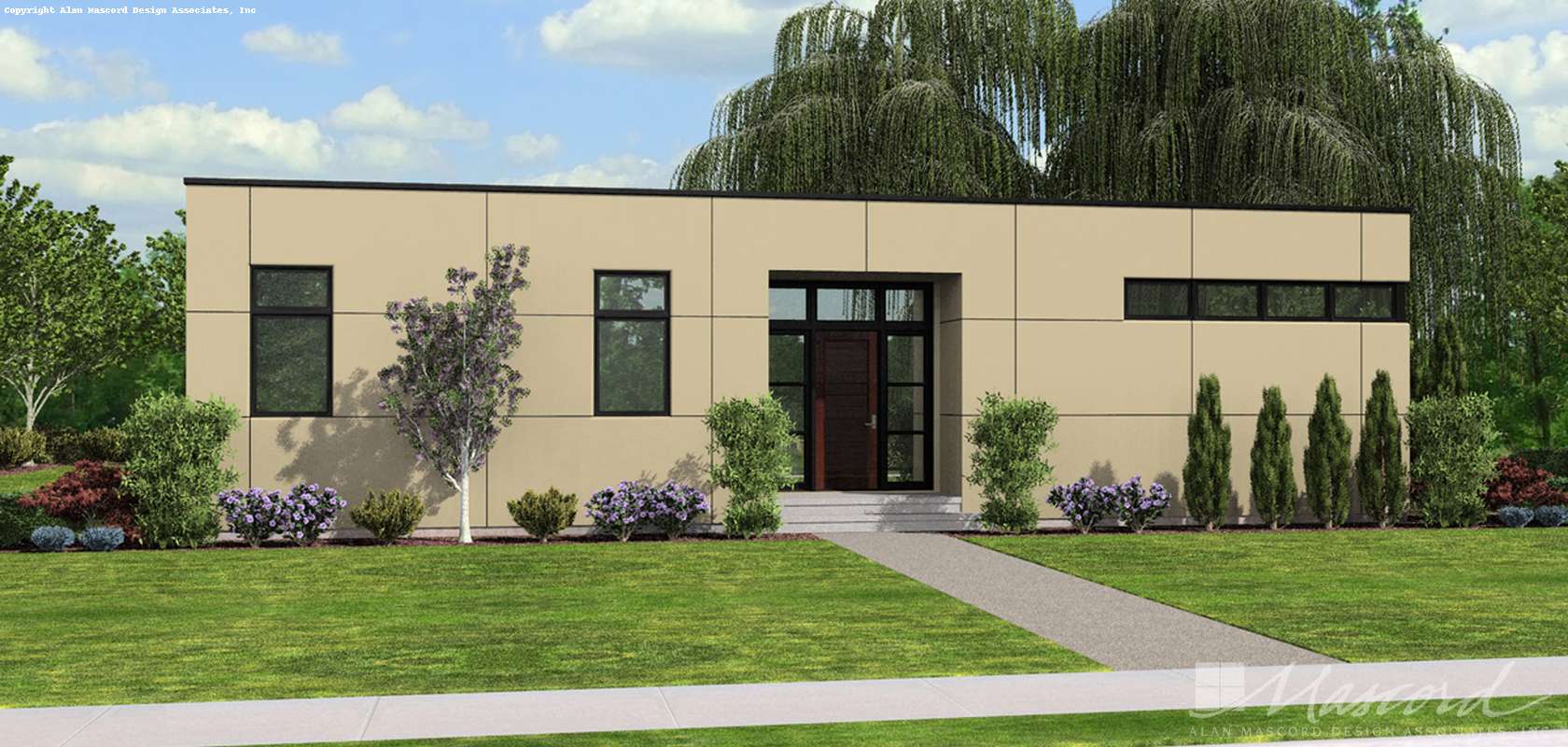

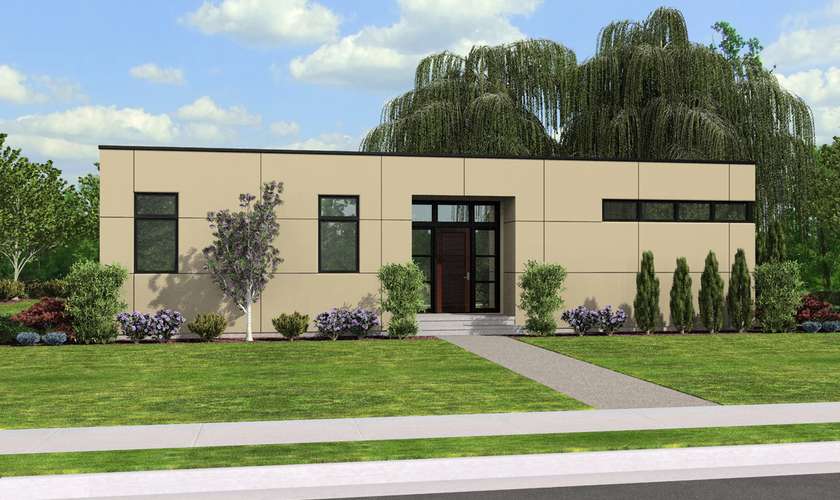

With its sophisticated contemporary styling, this small home can be transformed into your own personal haven. Build the Dublin as your primary residence, a vacation home or an inspiring artist’s retreat. No matter how you choose to use this home, you’ll find that its unique geometry and smooth good looks inspires creativity and simplicity.

The more you look at the Dublin, the more you’ll find that this is one of those rare homes that fits an endless variety of lifestyles. Empty nesters or first-time homeowners will enjoy the compact space and efficient design. If you’re planning a growing family, then this home can grow right along with you. Plan 1160A adds a garage and plans 1161 and 1162 add extra bedrooms, storage space and other amenities.

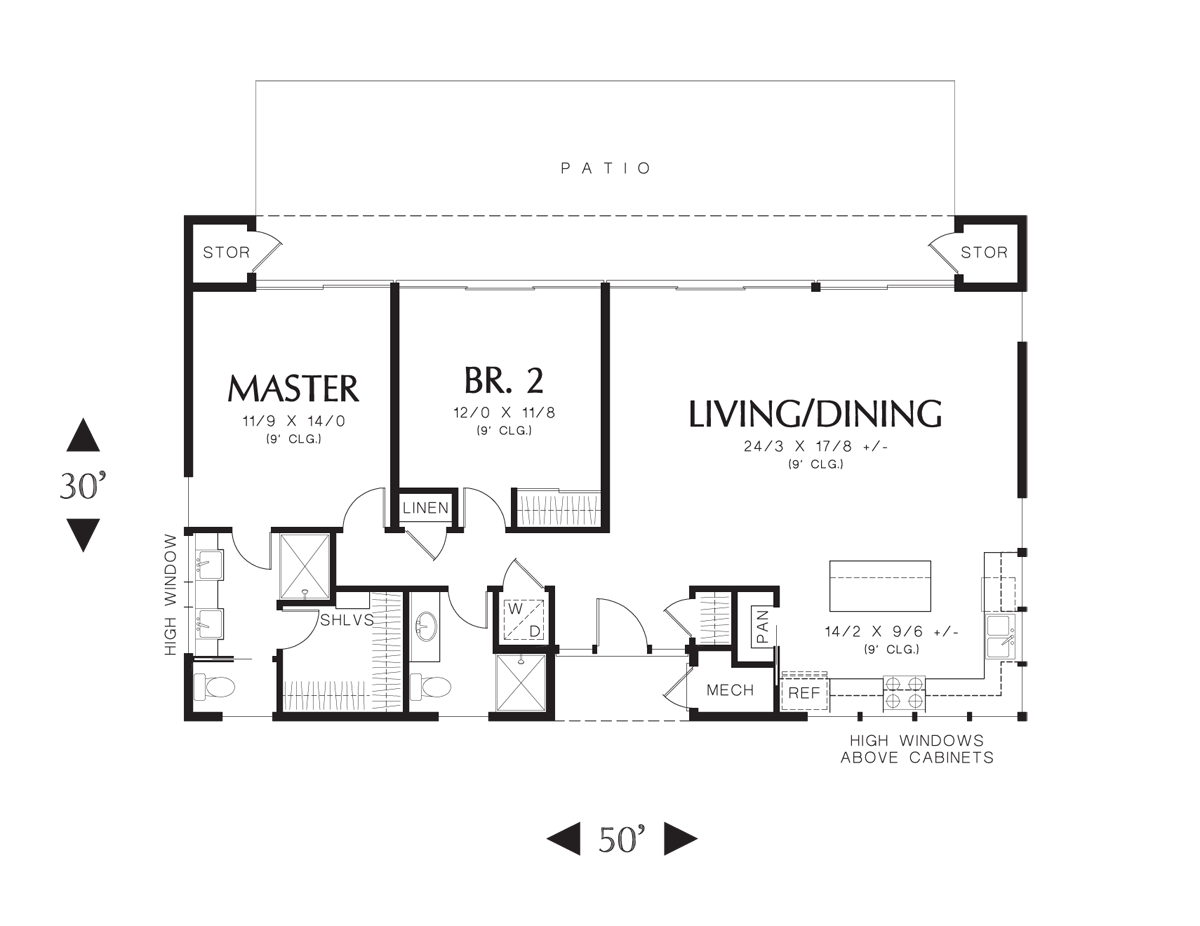

It won’t be until you’re standing inside this newly built home that you’ll fully appreciate the way it connects you with the natural world. When you walk through the Dublin’s front door, you’ll be immediately greeted by a wide-open living and dining area that has an incredible view – perhaps overlooking a lake or the ocean. In this room, you’ll spend many evenings watching moonlight play over sand and water.

The master suite offers you similar comforts. In the master bedroom, you’ll wake up each morning to the sight of rolling waves, feeling clean and refreshed. The master bathroom – complete with a large walk-in closet – helps you smooth out your morning routine so that you can hang on to that stress-free feeling of serenity just a while longer.

The Dublin’s second bedroom opens you up to a whole world of possibilities. Use it as a guest bedroom and treat your friends and family to the same luxurious lifestyle that you enjoy each day. Alternatively, you can set this room up as a studio that boasts an amazing view. As a home gym, you’ll find that the sunlight and fresh air keeps you energized as you work out. If you work from home, you’ll find that this room’s wall of glass doors keeps the area bright, fresh and productive.

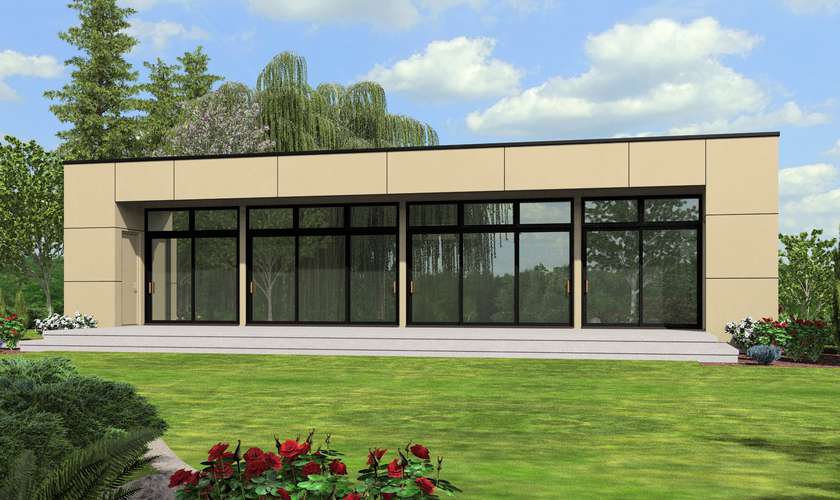

That’s one of the greatest things about the Dublin: The wall of glass doors allows you to stay connected to the outdoors no matter where you are. Wake up and go for a morning swim or take a break from work out on the home’s patio. In the evenings, as you prepare dinner in the kitchen or relax in the living area, open the doors and enjoy a cool, refreshing breeze.


Comments

Choose Plan Set

Choose Foundation

Additional Options

Call (503) 225-9161 to
complete your order via Phone

Market Your Home

This plan is also available with an In-Ground Basement
Click here to view the basement version
You can find this plan in these related collections

Similar and Related Plans

Plan 1160A The Galway
  • 1268 sq.ft.
  • Bedrooms:

    2
  • Baths:

    2
  • Stories:

    1
  • Width:

    50'-0"
  • Depth:

    54'-0"

Simplicity, Convenience and Plenty of Room to Grow

Plan 1166 The Dunland
  • 899 sq.ft.
  • Bedrooms:

    1
  • Baths:

    1
  • Stories:

    1
  • Width:

    34'-0"
  • Depth:

    30'-0"

Single Bedroom, Compact Contemporary Home Ideal for Beach, Rental, Vacation, or Micro Living!

Plan 1161 The Keighley
  • 1624 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Stories:

    1
  • Width:

    50'-0"
  • Depth:

    54'-0"

A Small Contemporary with Enormous Possibilities

Plan 1162 The Portland
  • 1915 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    1
  • Width:

    50'-0"
  • Depth:

    54'-0"

A Smart Minimalist Home Designed for Relaxation

Plan 1163A The Queensbury
Photography of house plan 1163A
  • 1508 sq.ft.
  • Bedrooms:

    2
  • Baths:

    2
  • Stories:

    1
  • Width:

    68'-0"
  • Depth:

    49'-0"

Flat Roof Modern Version of Plan 1163

Builders known to be experienced constructing this home include:

T.H.E. Remodel Group Tualatin, OR 5038691290
AMERICAN COLONIAL HOMES, LLC MOUNT LAUREL, NJ 8664226198
SIERRA LOG & TIMBER CHICO, CA 5308990680
R M HOMES DUANESBURG, NY 5183653719
US Log and Timber Dallas, TX 7703632715
Green Construction Holmes Builders Chicago, IL 7738957818
J.T. Roth Construction Portland, OR 5036392639
Chilton Custom Homes Woodland, WA 3609980462
KELLI & LANG REMAX GATEWAY ANACORTES, WA 3602938654
Dry Canyon Building, LLC Redmond, OR 5412805664
Sasha and Company Vancouver, WA 5033510773
Kenan Construction , 9106040043
(find more builders in our Builder Directory)

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Electronically delivered house plans - including PDF and CAD files - are none-refundable and non-exchangeable. All exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
