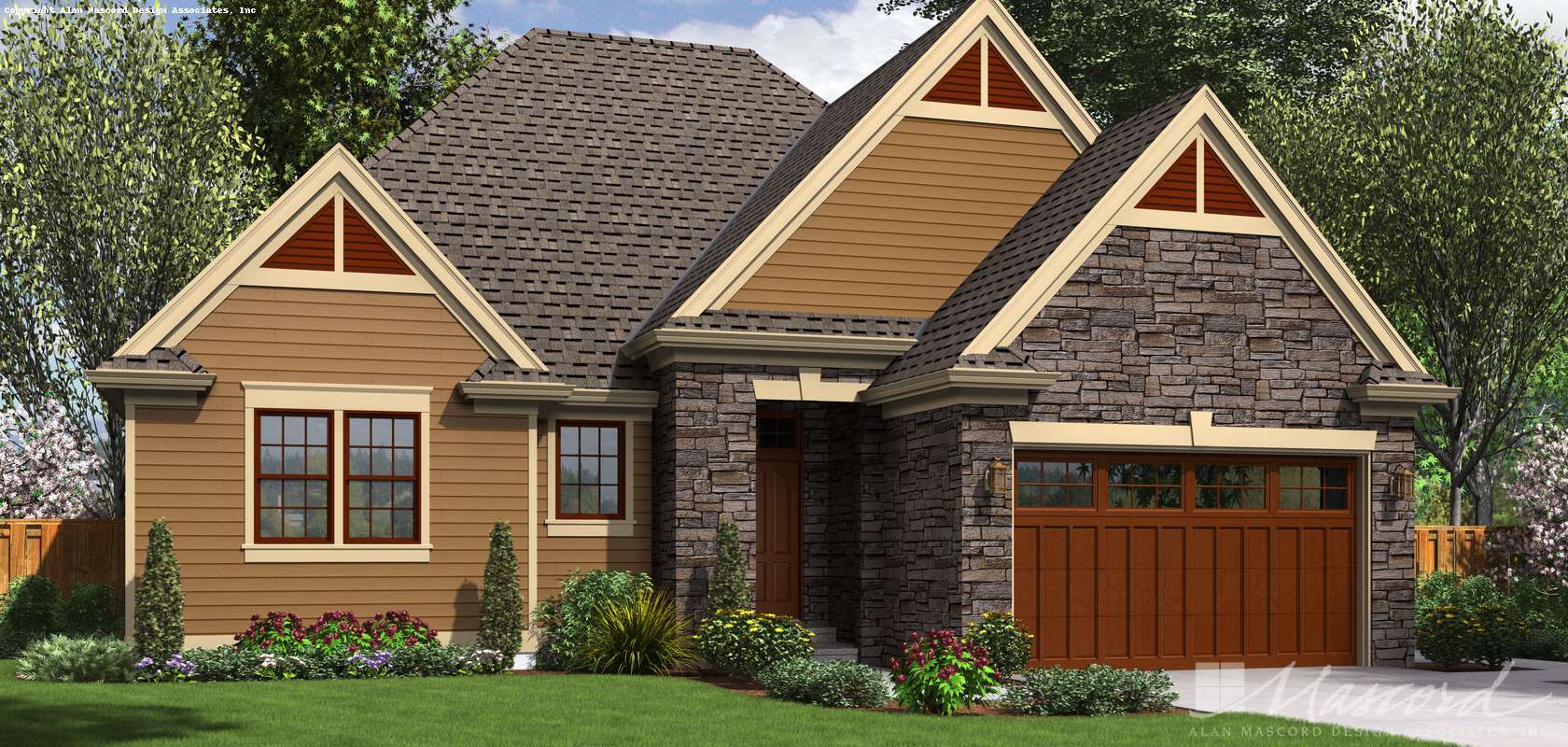

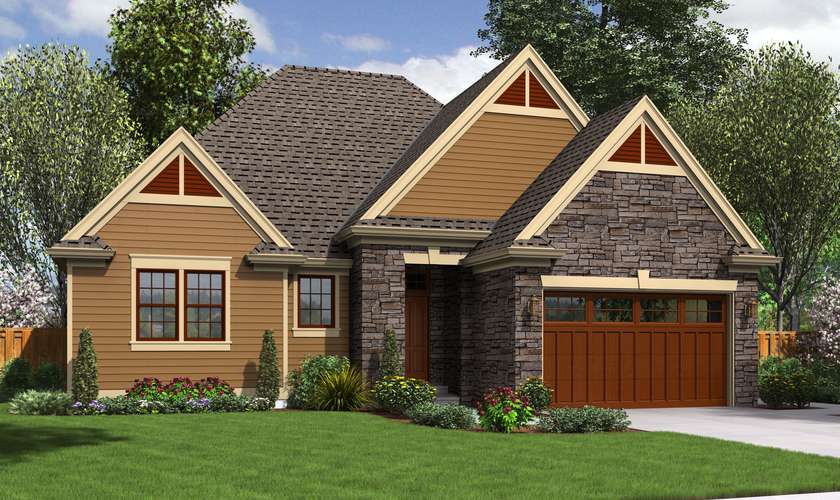

Mascord House Plan 1161ES: The Hoover
The Hoover

Plan 1161ES

Mascord House Plan 1161ES: The Hoover

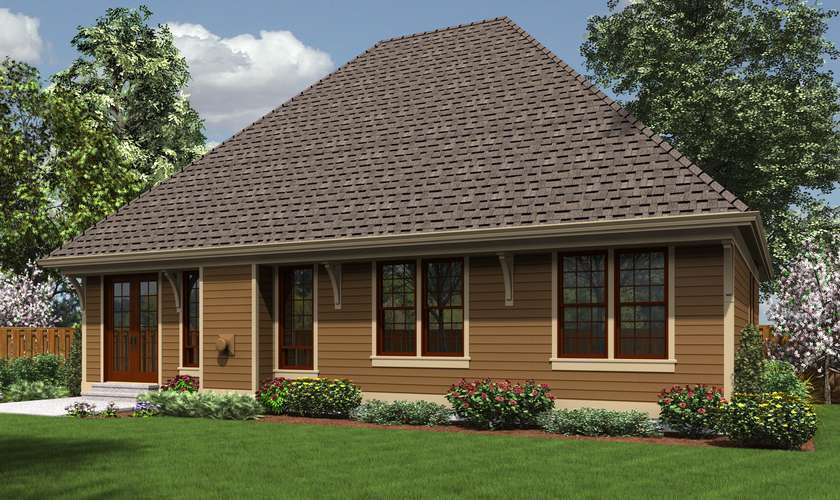

Rear Rendering

Plan 1161ES - The Hoover - Eco design at its finest - Efficient without compromise.

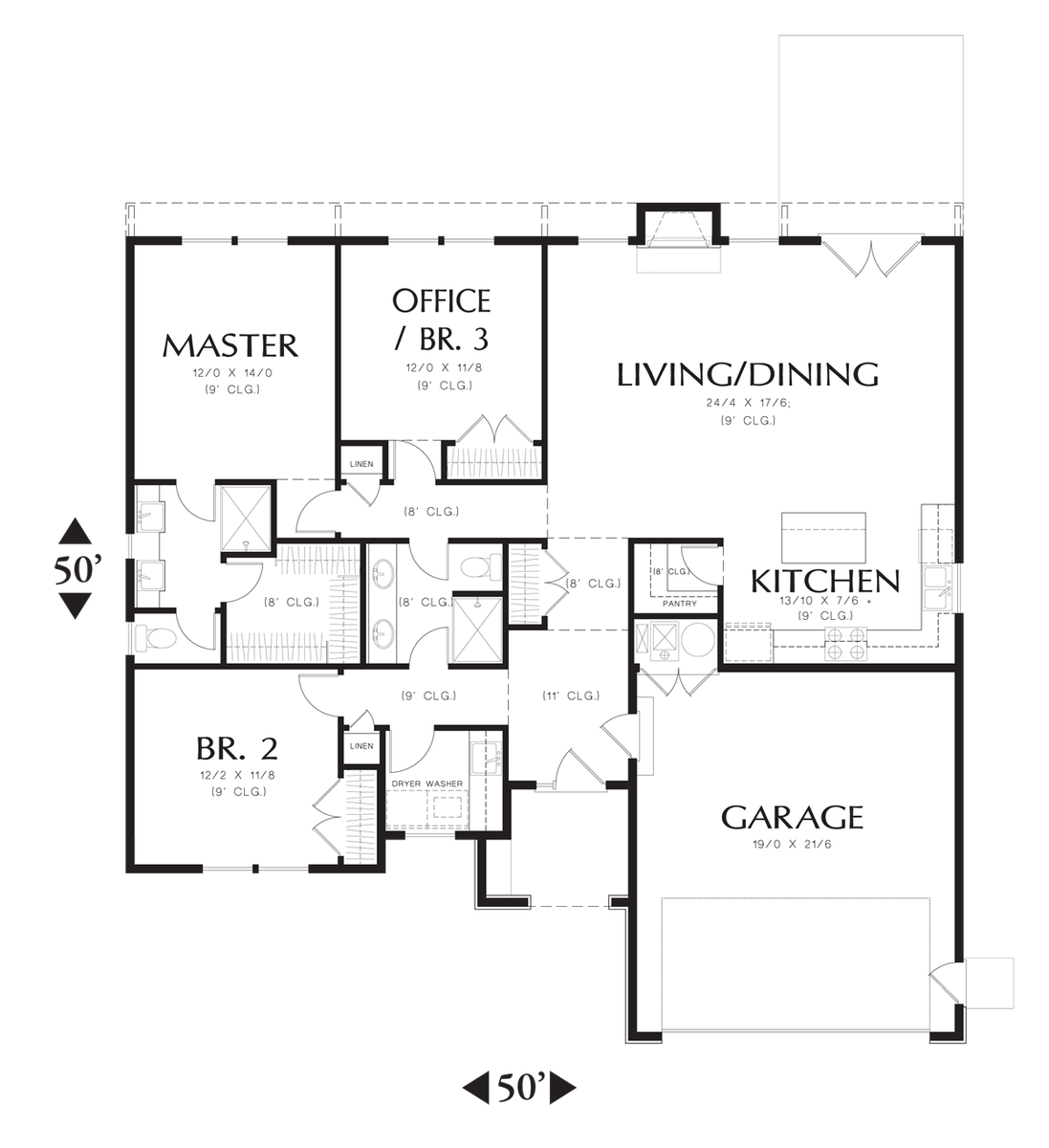

Main Floor Plan

Main Floor Plan image for Mascord Hoover-Eco design at its finest - Efficient without compromise.-Main Floor Plan

A Walk Through The Hoover

If you’re looking for an eco-friendly house plan but you don’t relish compromising on comfort, The Hoover might just be your dream home. Craftsman exterior details, such as natural stone, draw the eye to this house plan’s covered front porch. Stepping inside, you’ll be greeted by breathtaking 11-foot ceilings. To your right is a spacious garage, while a hallway to your left leads to a laundry room and front bedroom. A bathroom cleverly placed across the hall from the laundry room links up to a second bedroom near the home’s rear.

The spacious master bedroom is located in the back corner of the house, far away from the din of the kitchen and great room. Deep eaves here and throughout The Hoover house plan create a sense of serenity; they also improve energy efficiency and slash utility bills. The master bathroom boasts his-and-her sinks, a lovely shower and a separate room for the toilet. Across from the sinks, you’ll find a large walk-in closet with 8-foot ceilings.

Walking back out the master bedroom and down the hall, you’ll find yourself in the living/dining room, with its 9-foot ceilings and open connection to the kitchen. The Hoover is set up for “rear-facing living,” meaning its shared living space faces the back of the lot. This is an excellent arrangement for those who savor their privacy. Gorgeous French doors connect the living/dining area to an outdoor patio. Turning around 180 degrees from the outdoor living area, you’ll find yourself looking at the kitchen, with its island and large pantry closet.

The Hoover house plan is green in several ways. First, as mentioned earlier, large eaves preserve energy in this home. Second, this single-story Craftsman design maintains a modest footprint out of respect for the land. Third, no bathtub in the design means those living in The Hoover will take showers, which use far less water.

Home Details

Heated Space

  • Main Floor

    1624 SqFt
  • Total Area

    1624 SqFt

Beds and Baths

  • Bedrooms

    3
  • Full Baths

    2
  • Floors

    1

Exterior Dimensions

Garage

  • Garage Bays

    2 Car Garage
  • Garage Area

    437 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    12/12

Craftsman

The Mascord collection of craftsman house plans highlight features that were first introduced with the Arts and Crafts movement, which thrived from 1876-1915, and continues to be celebrated today. These homes have great curb appeal, lots of detail and the amenities you need for modern living. Check out the collection for more great home designs.

Ranch

Our Ranch style house plan collection comprises single level homes with elongated elevations that suit placement on acreage or suburban lots, and the easy living open floorplans are ideal for families with both young and aging family members. The homes you'll see in this collection typically have a rectangular or L-shaped footprint, and low-pitched roof. They are ideal for placement of photovoltaics!  Take a look and tell us what you think.

Traditional

Traditional homes freely borrow from a number of historic styles and combine them to relay a new expression. Many historic styles are also 'traditional' in nature, and are incorporated into the Mascord Collection. Colonial, Tudor, Craftsman, Cape Cod - in this collection of home plans you'll discover floor plans that reflect modern lifestyles with spacious rooms, flexible spaces and modern conveniences, but mixed with distinct architectural flair, curb appeal and modern aesthetic. Expect elements such as free-flowing kitchens, breakfast nooks, and family room combinations.

This plan is based upon another design - 1161B-Sherman
  • Removed 236 SqFt from finished area
  • Overall Depth increased 12ft.
Check out the details for Plan 1161B-Sherman here.
