The Pasadena

House Plan 1169A

Also available with a
Full In-Ground Basement

Wonderful compact Craftsman Ranch

  • 1641 SqFt
  • 3 Beds
  • 2 Baths
  • 1 Floor
  • 2 Car Garage

Floor Plans

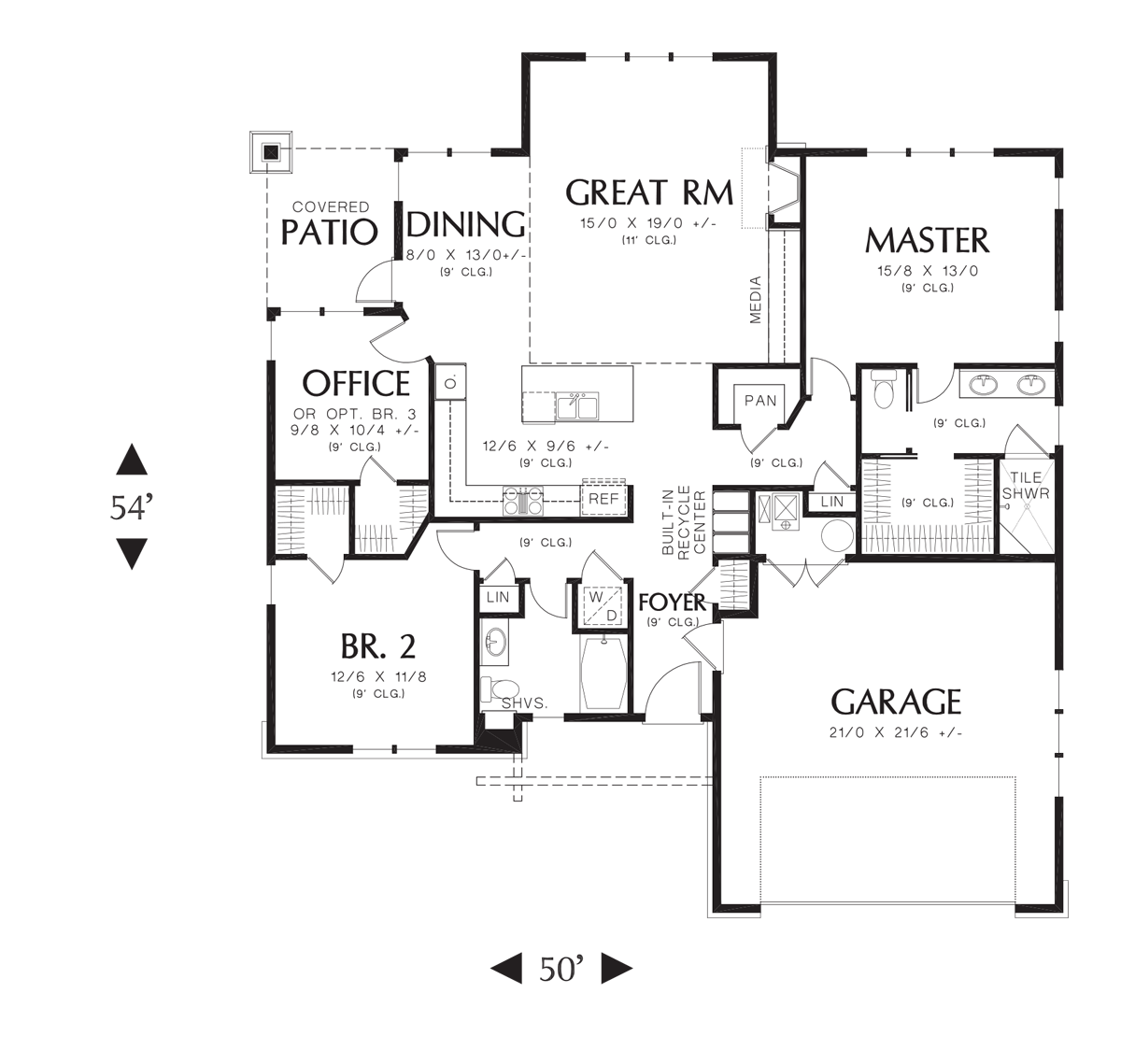

Image for Pasadena-Wonderful compact Craftsman Ranch-Main Floor Plan

Main Floor Plan

Home Details

Heated Area

  • Main Floor

    1641 SqFt
  • Total Area

    1641 SqFt

Amenities

  • Bedrooms

    3
  • Full Baths

    2
  • Floors

    1

Dimensions

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    7/12

Garage

  • Garage Bays

    2 Car Garage
  • Garage Area

    471 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Foundations

  • Joisted Crawlspace (default)
  • Post & Beam @ 32" O/C (optional)
  • Slab (paid upgrade)

A Walk Through The Pasadena

As a home that combines traditional beauty with simplicity of design, the Pasadena home is a wonderful escape from overly modern or complex houses. This Craftsman home plan exemplifies artistic components of the Arts and Crafts movement (19th century England), meaning that there is an emphasis on using natural materials, such as hand-crafted stone or woodwork, throughout the design of the home. It features three bedrooms, two full bathrooms, a good amount of storage space, and other fantastic home characteristics.

The casual and relaxed atmosphere of this craftsman style home can be sensed immediately upon entering the home. Once inside, you are greeted by the foyer and beyond that the spacious kitchen which is equipped with a walk-in pantry and built-in recycle center. The kitchen is interconnected with both the great room and dining room. The open floor plan for this area unifies and brings together members of the household as well as serves as a great space for gatherings with family and friends. The dining room opens out to the covered patio for when you want to enjoy your meals and festivities outdoors.

The two main bedrooms are located on either end of the house, one to the left of the entryway, one to the right of the great room, and both have an adjoining bathroom and lots of closet space. There is also a third bedroom which can serve as an office or den and has its own closet space as well. The two car garage is perfect for storage as well.
