Mascord House Plan 1170: The Meriwether
The Meriwether

Plan 1170

Mascord House Plan 1170: The Meriwether

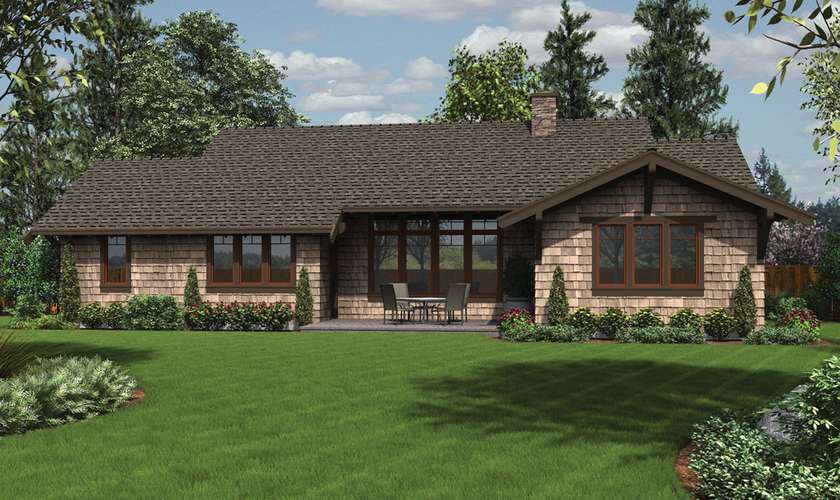

Rear Rendering

Plan 1170 - The Meriwether - Traditional Craftsman Ranch with Oodles of Curb Appeal - and Amenities to Match!

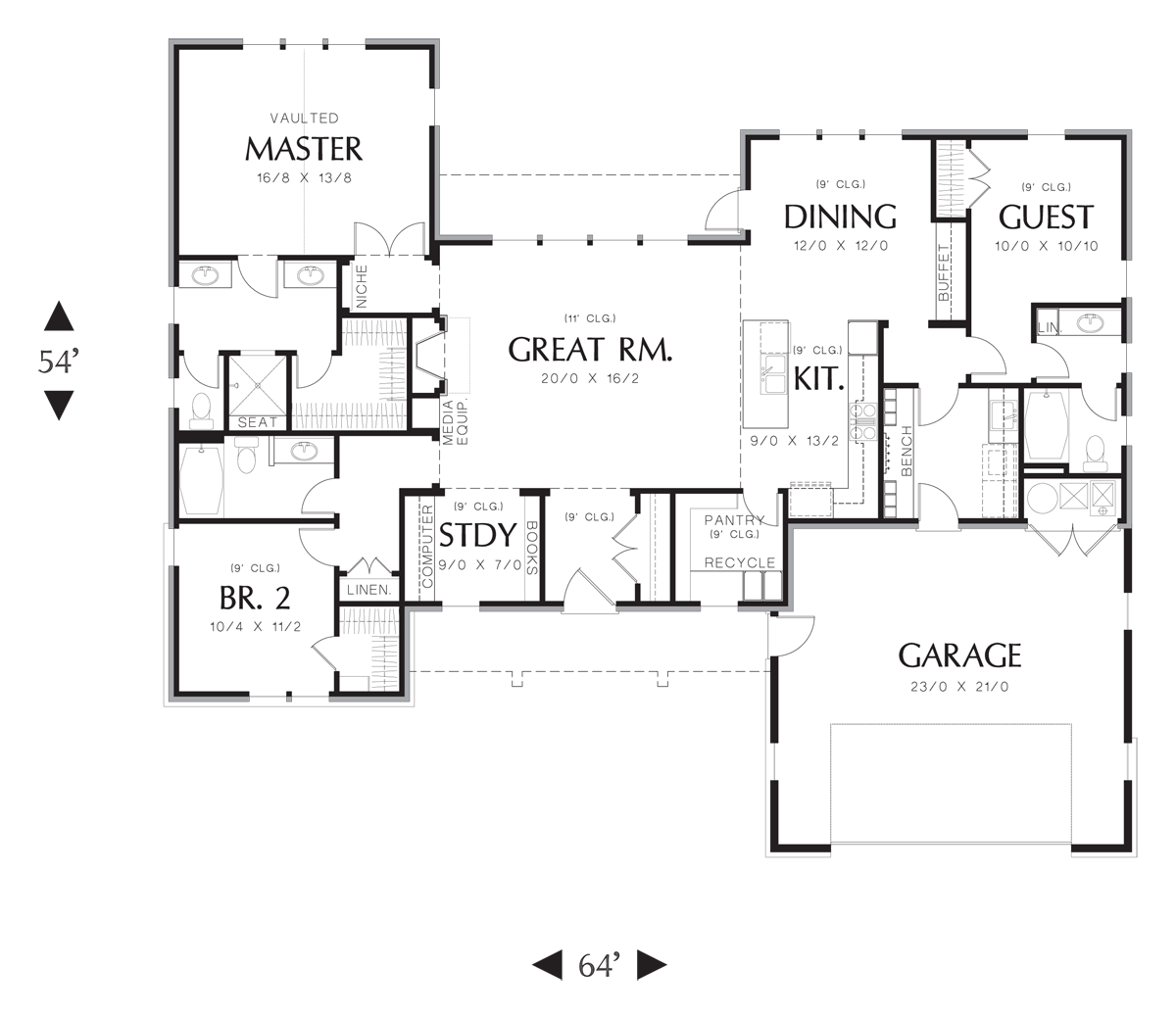

Main Floor Plan

Main Floor Plan image for Mascord Meriwether-Traditional Craftsman Ranch with Oodles of Curb Appeal - and Amenities to Match!-Main Floor Plan

Featured Photos

Photographed Homes May Include Modifications Not Reflected in the Design

A Walk Through The Meriwether

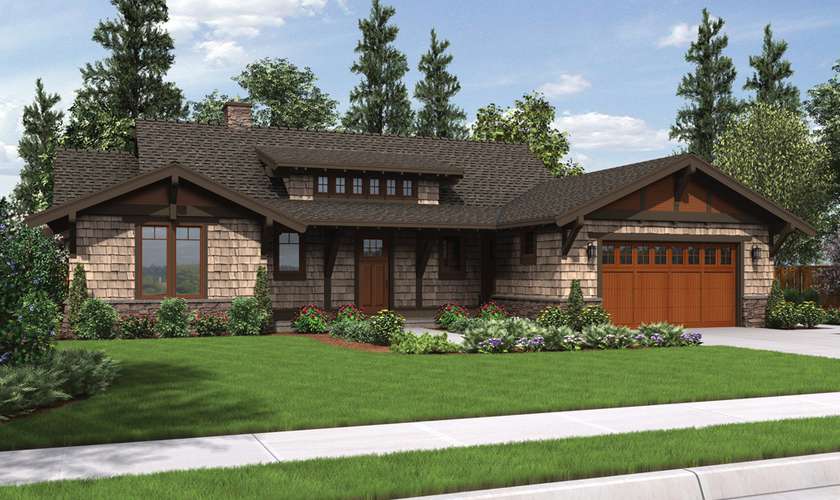

The charming front entry of this home is tucked under a row of clerestory windows. To the right of the front door, a two-car garage jogs forward of the entry, while to the left, the home’s second bedroom is situated forward as well, creating a protected courtyard feel around the main entry. We should add that the design details across the façade just scream “Craftsman home plans.” For instance, one hallmark of the Craftsman style are exposed rafter tails. The prominent rafter tails on the Meriwether’s exterior, along with the use of natural materials, are right in line with Craftsman ideals. Let’s imagine touring these Craftsman house plans.

Entering the Meriwether, you can’t help but be drawn forward into the great room, a truly stunning space. After depositing your coat in the convenient entryway closet, you’ll step into the Meriwether’s main shared area, a 20-foot by 16-foot room with 11-foot ceilings. There’s so much to admire here: the wall of windows looking out onto the rear patio; the fireplace and built-in entertainment storage area; and the open flow to the kitchen and dining area off to the left.

Wandering past the kitchen island and L-shaped food preparation area, and through the dining room with its built in buffet storage, you’ll discover a small hallway. This leads past a utility room and into the guest room – or perhaps we should say guest suite, as there is an attached bathroom with a full tub. Windows throughout make even the compact sink area and enclosed toilet/tub room feel airy. Wandering back into the small hall, you’ll notice that the utility room leading into the garage has a built-in workbench as well as space for a washer and dryer.

Walking back through the kitchen and dining area, you’ll notice an enclosed pantry just off the kitchen. Clever design here: The recycling bins are built-in, so you won’t have to worry about sticky recyclables clogging up the space.

Traversing the great room, you may consider that the Meriwether must “live quiet,” since the bedrooms are located in separate wings. On the other end of the great room, to the rear of the home, is another short hallway featuring a built-in niche at the end. Double doors to the right lead to the master suite. The vaulted master retreat area has everything you could want, including plenty of natural light, double sinks in the bathroom, a separate room for the toilet and a large walk-in closet. The shower in the master suite is ideal for those looking for an age-in-place or empty nest design.

The second bedroom on this side of the house is located to the left of the great room’s fireplace. Yet again, the designers of the Meriwether have added a diminutive hallway here. This design technique boosts privacy and minimizes sound. This smaller bedroom has its own walk-in closet as well as windows on two sides.

The other room in the home is the study, found between the entryway and the bedroom we just exited. What a cozy place to study – and it won’t be tough to keep this work space neat, as it boasts a built-in computer desk and bookshelves.

With that, we return to the home’s covered front entry. As you begin to imagine your family enjoying this Craftsman-style home, you may smile a little. Whether you have kids or you’re looking for a large enough home for welcoming guests, the Meriwether is a wonderful choice.

Home Details

Heated Space

  • Main Floor

    1988 SqFt
  • Total Area

    1988 SqFt

Beds and Baths

  • Bedrooms

    3
  • Full Baths

    3
  • Floors

    1

Exterior Dimensions

Garage

  • Garage Bays

    2 Car Garage
  • Garage Area

    508 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    8/12

Craftsman

The Mascord collection of craftsman house plans highlight features that were first introduced with the Arts and Crafts movement, which thrived from 1876-1915, and continues to be celebrated today. These homes have great curb appeal, lots of detail and the amenities you need for modern living. Check out the collection for more great home designs.

Ranch

Our Ranch style house plan collection comprises single level homes with elongated elevations that suit placement on acreage or suburban lots, and the easy living open floorplans are ideal for families with both young and aging family members. The homes you'll see in this collection typically have a rectangular or L-shaped footprint, and low-pitched roof. They are ideal for placement of photovoltaics!  Take a look and tell us what you think.

Shingle

If you're looking for a traditional beach house or a home with timeless colonial beauty, you should definitely check out the homes in the Shingle stylecollection.   Homes in this collection typically feature steeper pitched roof lines, and shingle covered walls (of course!). They also have a smooth surface appearance with little or no decoration.

Choose Plan Set

Foundations

View In-Ground Basement Details

Additional Options

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Similar and Related Plans

Plan 1144B The Riverton
Photography of house plan 1144B Printable Page of House Plan 1144B
  • 1873 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Stories:

    1
  • Width:

    70'-0"
  • Depth:

    51'-0"
View home in 360 degrees
Plan 1169A The Pasadena
Printable Page of House Plan 1169A
  • 1641 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Stories:

    1
  • Width:

    50'-0"
  • Depth:

    54'-0"
View home in 360 degrees
Plan 1245 The Riverside
Photography of house plan 1245 Printable Page of House Plan 1245
  • 2334 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    1
  • Width:

    63'-0"
  • Depth:

    61'-6"
Plan B1170 Bsmt Meriwether
Photography of house plan B1170
  • 1975 sq.ft.
  • Bedrooms:

    3
  • Baths:

    3
  • Stories:

    1
  • Width:

    64'-0"
  • Depth:

    58'-0"

Plan 1170 with an
In-Ground Basement

You can find this plan in these related styles and collections

Builders known to be experienced constructing this home include:

RM Construction Logo image
RM Construction Glenwood Springs, CO 9703002025
QUAIL HOMES Logo image
QUAIL HOMES Vancouver, WA 3609075800
Curtis Homes LLC Logo image
Curtis Homes LLC Hood River, OR 5414360736
DANMAC Portland, OR 5033183470
(find more builders in our Builder Directory)

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.
