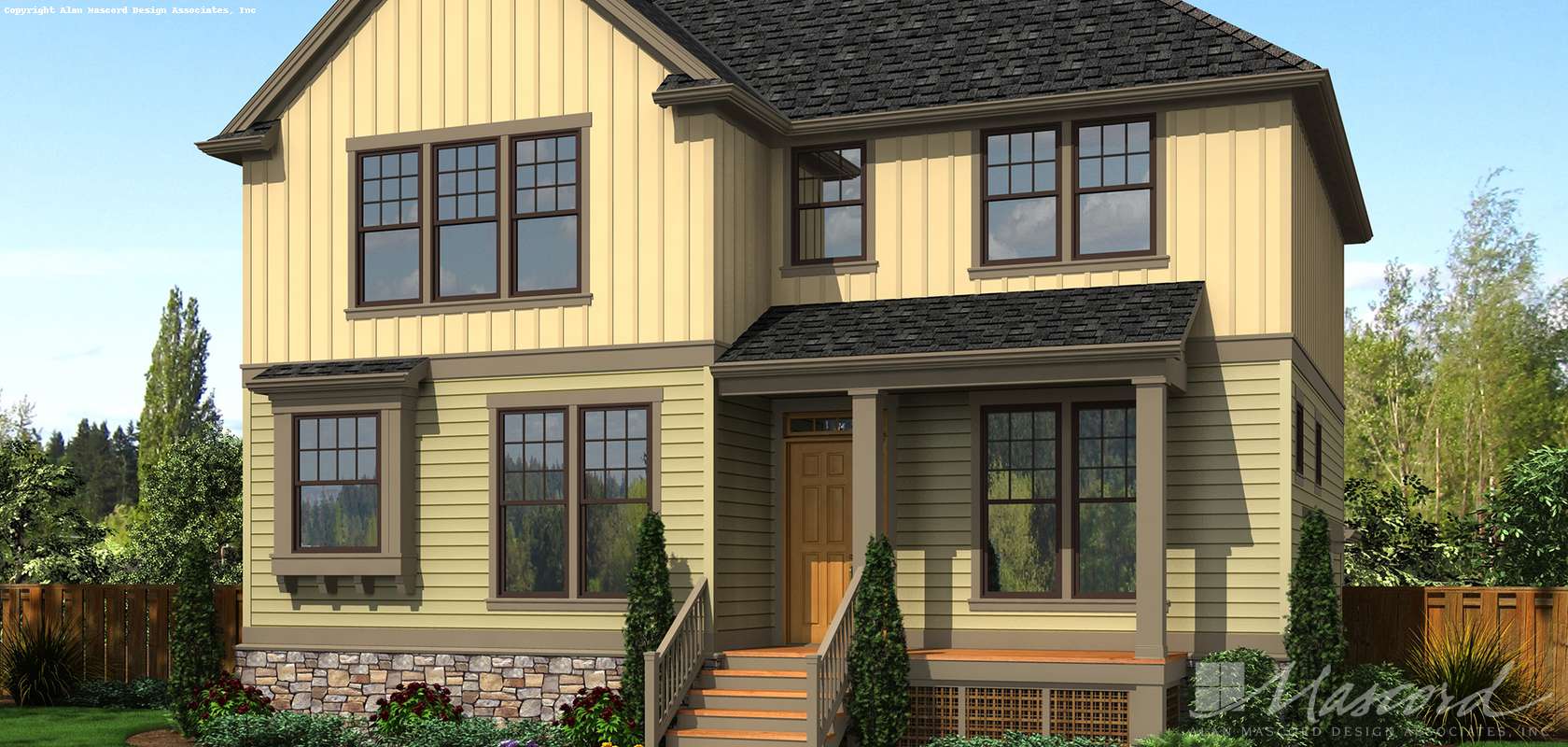

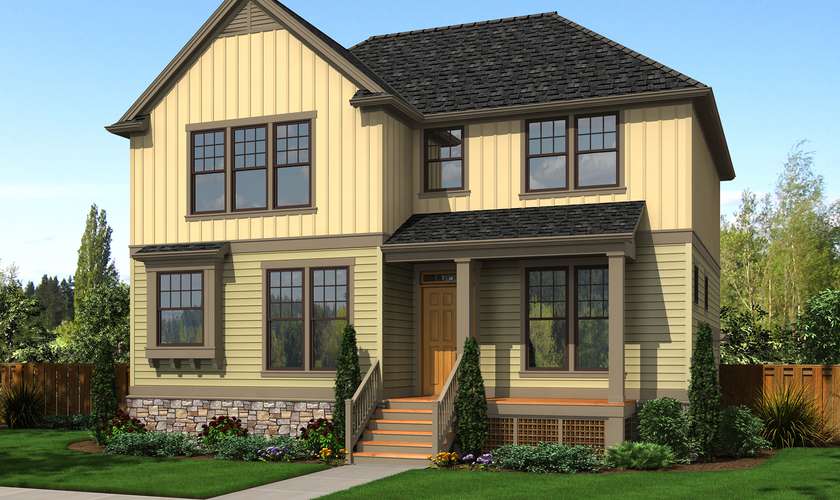

Mascord House Plan 21138: The Bracken Bank

The Bracken Bank

Plan 21138

  • 1920 SqFt
  • 3 Beds
  • 2 Baths
  • 1 Pwdr
  • 2 Floors
  • 2 Car Garage

Home Details

Heated Space

  • Upper Floor

    1017 SqFt
  • Main Floor

    903 SqFt
  • Total Area

    1920 SqFt

Beds and Baths

  • Bedrooms

    3
  • Full Baths

    2
  • Half Baths

    1
  • Floors

    2

Exterior Dimensions

Garage

  • Garage Bays

    2 Car Garage
  • Garage Area

    399 SqFt
  • Garage Location

    Rear
  • Garage Orientation

    Rear

Notable Features

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    27 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    10/12

A Walk Through The Bracken Bank

The Bracken Bank home embodies a rising trend in neighborhood development - the concept of traditional neighborhood design. This type of design allows for more space in a neighborhood and therefore encourages people to walk around more and connect with their neighbors. How does the Bracken Bank home achieve this? Well, these craftsman house plans build off of elements of narrow lot house plans to create a home that reflects modern lifestyles while upholding classic and traditional architectural styles all in a compact space. This two-story home includes three bedrooms, two full bathrooms, one half-bathroom, a garage in back, and other amenities that are great for any family.

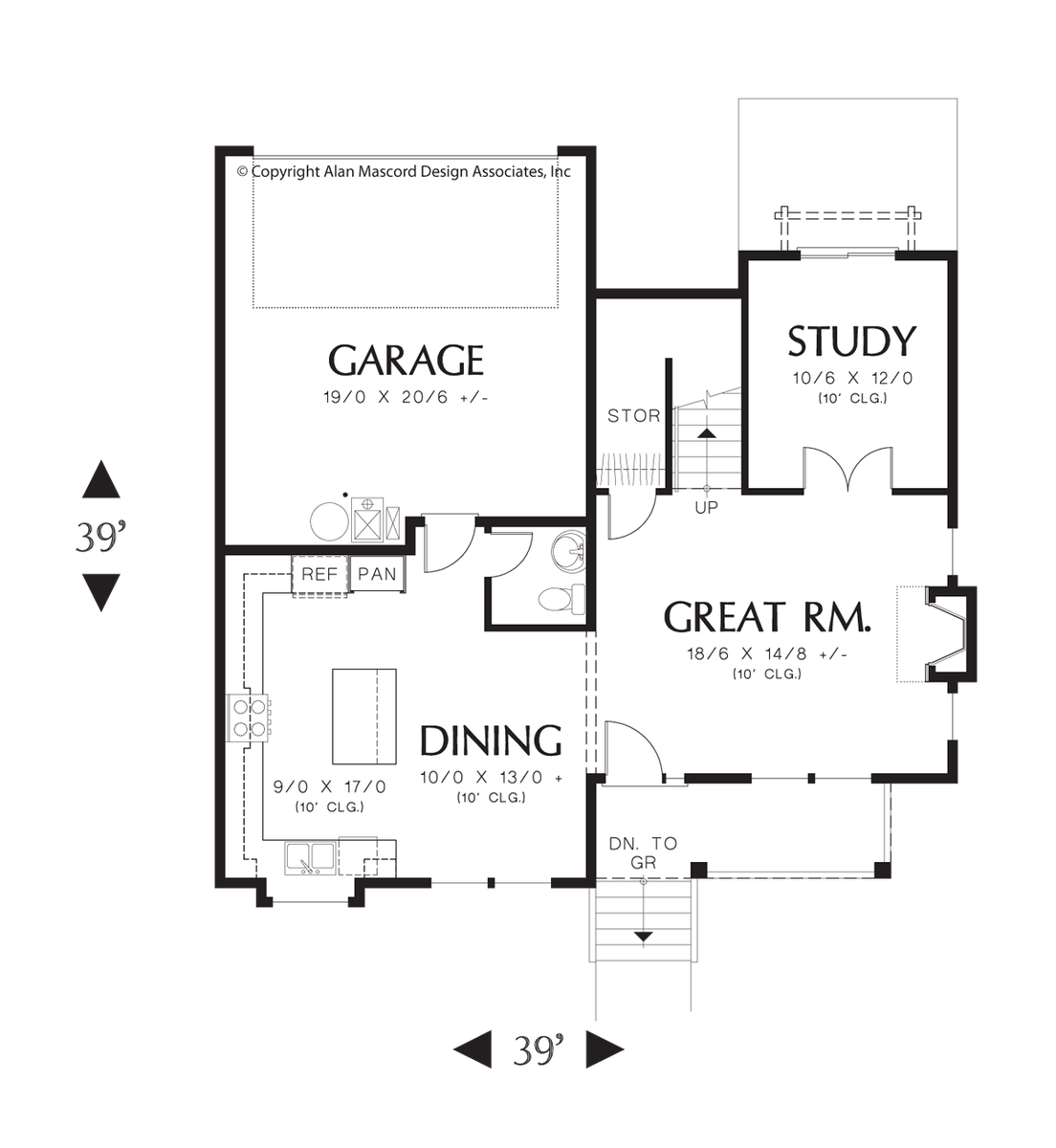

A lovely front porch greets you as you walk up the front steps and enter this house. You then walk directly into the expansive great room, which can serve as a wonderful living room or family room. There is a study room that connects to the great room which also has its own back porch space for hosting outdoor gatherings, or just a place to enjoy your backyard. To the left of the entrance, the great room opens up into the kitchen and dining space. This area comes equipped with a kitchen island, wrap- around counters, and its very own bathroom. The garage is also connected to this space and has room for two cars with extra storage room.

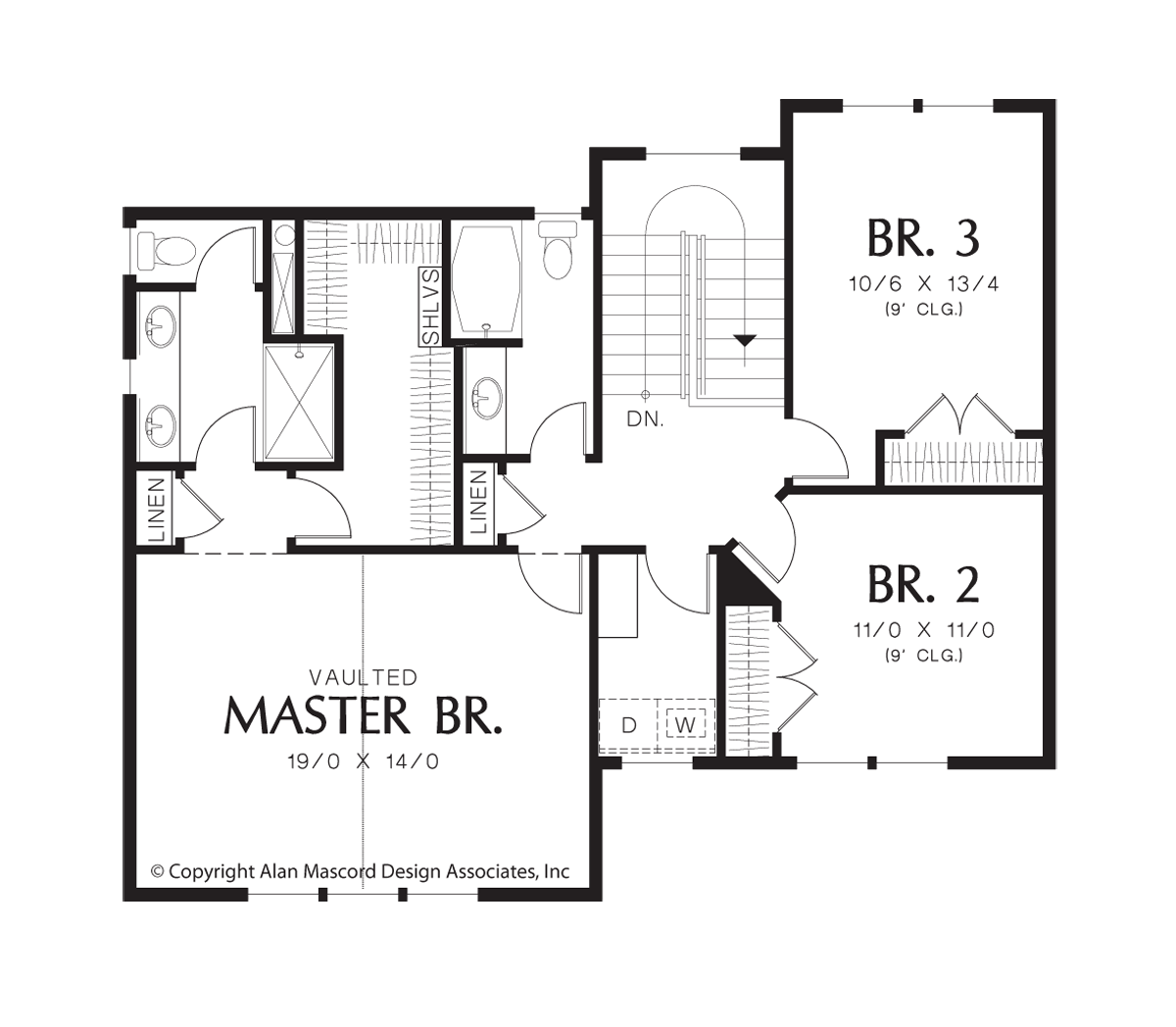

Continuing on upstairs, you will find two bedrooms, each with their own closets, on the left. To the right of the staircase is the communal bathroom. The laundry room, with both a washer and dryer, is also located on this level. Last, but certainly not least, is the vaulted master bedroom. This room has its very own walk-in closet and private bathroom with a his-and-hers sink counter.


Comments

Choose Plan Set

Choose Foundation

Additional Options

Call (503) 225-9161 to
complete your order via Phone

You can find this plan in these related collections

Similar and Related Plans

Plan 21138A The Woodhouse
  • 2043 sq.ft.
  • Bedrooms:

    3
  • Baths:

    3
  • Half Baths:

    4
  • Stories:

    2
  • Width:

    37'-0"
  • Depth:

    40'-0"

Stand Out in the Suburbs with Traditional Style

Plan 21139 The Hilldale
  • 1811 sq.ft.
  • Bedrooms:

    4
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    2
  • Width:

    34'-0"
  • Depth:

    43'-0"

So Many Well Designed Spaces in a Compact Package

Plan 21139A The Fountainview
  • 2155 sq.ft.
  • Bedrooms:

    4
  • Baths:

    1
  • Stories:

    2
  • Width:

    33'-0"
  • Depth:

    51'-0"

Traditional Style Design for Gently Sloping Lots

Builders known to be experienced constructing this home include:

T.H.E. Remodel Group Tualatin, OR 5038691290
AMERICAN COLONIAL HOMES, LLC MOUNT LAUREL, NJ 8664226198
SIERRA LOG & TIMBER CHICO, CA 5308990680
TRADITIONAL HOME BLDG. & DEV. DUANESBURG, NY 5183653719
US Log and Timber Dallas, TX 7703632715
Green Construction Holmes Builders Chicago, IL 7738957818
J.T. Roth Construction Portland, OR 5036392639
Chilton Custom Homes Woodland, WA 3609980462
KELLI & LANG REMAX GATEWAY ANACORTES, WA 3602938654
(find more builders in our Builder Directory)

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Electronically delivered house plans - including PDF and CAD files - are none-refundable and non-exchangeable. All exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
