Plan 2199A - The Lathem - Arched Entry to Vaulted Great Room
- 1760 (+251 Bonus)
3 Car Tandem Garage

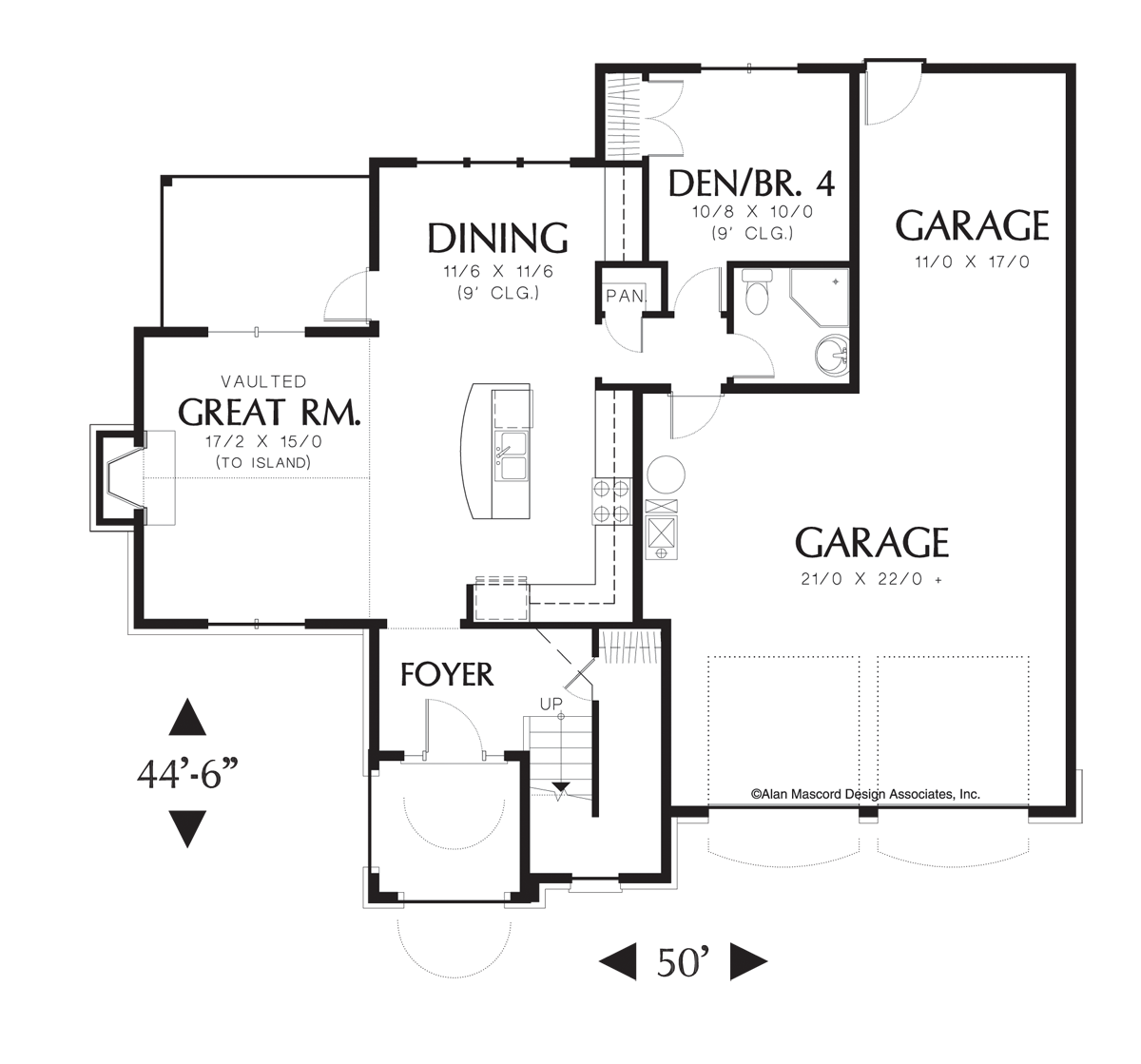

Main Floor Plan
Upper Floor Plan
A Walk Through The Lathem
Add French country charm to any neighborhood with this great two-story home. A tall arched entry is adorned with stone. Varied window shapes add character to the façade. A centralized kitchen features an island complete with a breakfast bar and sink. The spacious L-shape provides plenty of space for storage. Enjoy meals inside or out-the dining room offers convenient access to the rear patio. The vaulted great room is equipped with a fireplace creating a great place for the family to relax. A den, tucked in the rear of the home, doubles as a guest bedroom. Upstairs, the master suite features full amenities with a spa bath, dual sinks and a walk-in closet. An additional bedroom and bonus room provide flexibility for a growing family. The utility room is located on the second floor eliminating trips up and down the stairs with laundry.
Upper Floor819 SqFt
Main Floor941 SqFt
Bonus+ 251 SqFt
Beds and Baths
Height (to Midpt)22'-2"
Garage Bays3 Car Tandem Garage
Garage Area703 SqFt
Roof MaterialShake/Comp Roof
Wall Framing2 x 6
Main Roof Pitch6/12
