Plan 23108 - The Manchester - Four Floors of Fun for the Family
- 2543 (+533 Bonus)
SqFt
- Beds:
4
- Baths:
3 / 1
- Floors:
3
- Garage:
1 Car Garage
- Width:
28'-0"
- Depth:
48'-0"
A Walk Through The Manchester
Here is a home that gives you everything you’ve always wanted in a sophisticated package. You’ll quickly find yourself hosting all of the holidays because your home has the fun spaces and beautiful places that your entire extended family will want to enjoy. At Christmas, you’ll welcome your extended family up onto the beautifully decorated front porch of the Cape Cod inspired home. Lead them into the foyer and stow everyone’s jackets neatly in the hall closet before leading everyone into the main living space.

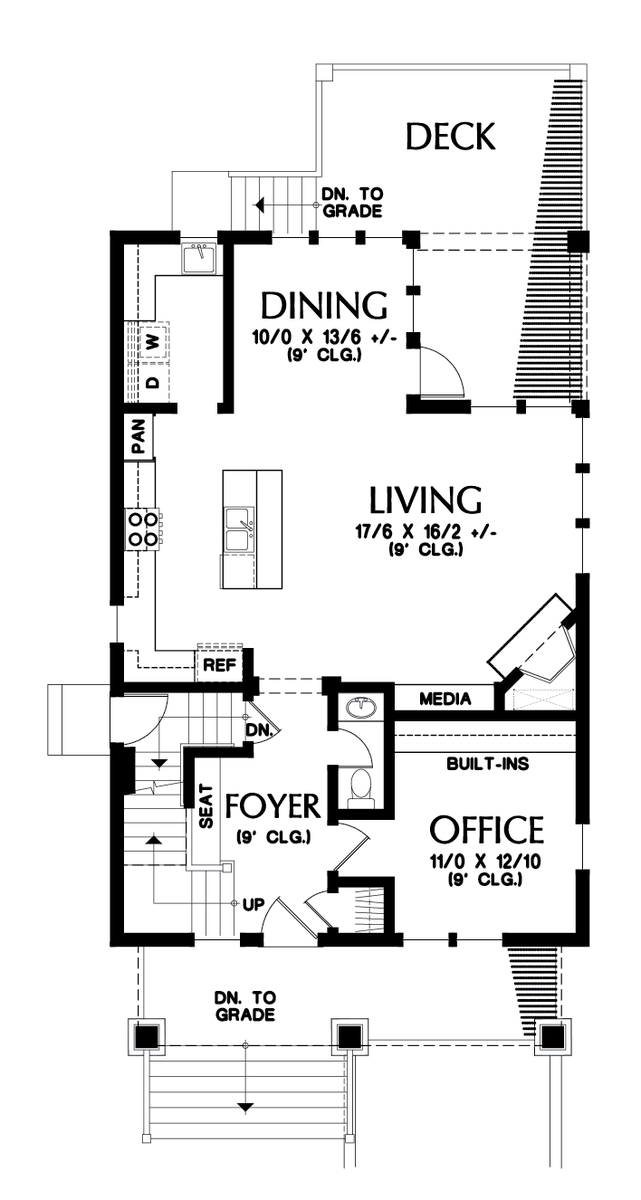

As they walk into the Manchester’s great room, they’ll be impressed. Your Christmas tree twinkling in the windows, a crackling fire in the fireplace and your beautiful dining room nook overlooking the snow-covered forest behind your home — all of it will be in plain view. Settle everyone in on the sofa and chairs or offer them the refreshments that you’ve laid out on the kitchen island.
If you still have a few dinner preparations to complete, then you’ll appreciate the efficiency that this kitchen provides. If some of your guests want to pitch in, then there is plenty of space on the long counters for them to work. Because you’ll have a clear view into the dining room and great room, you will be free to converse with your guests as you finish the feast and set the dining room table.

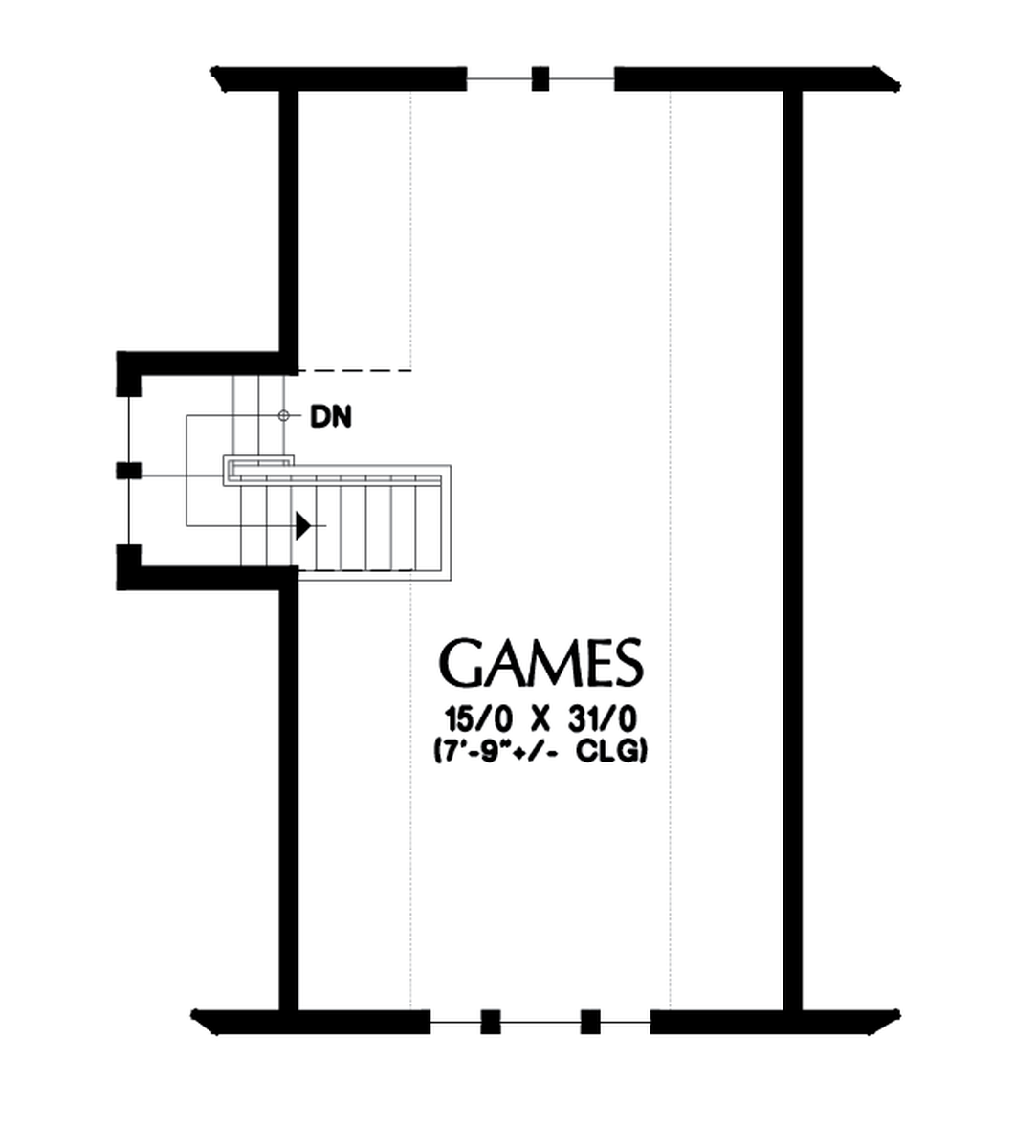

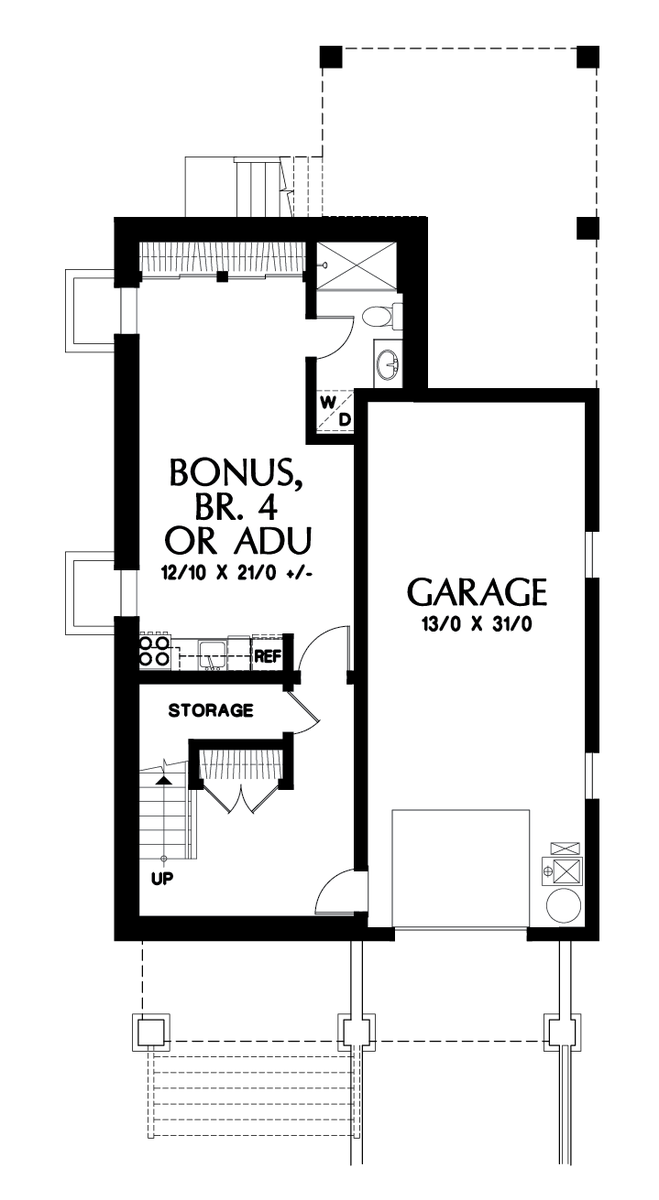

Once dinner is over, there will still be time for more fun. This might be the right time to invite everyone upstairs to the games room. Here, you can play Christmastime games long into the night. Otherwise, take everyone to the lower floor. Here, there is a large space that is designed as a small apartment. Overnight guests will love having access to a private bath and a kitchenette. If, however, you’d prefer, you can turn this space into a home theater. With the addition of comfortable seating and a popcorn machine, you can treat everyone to their favorite Christmas movies for the evening.

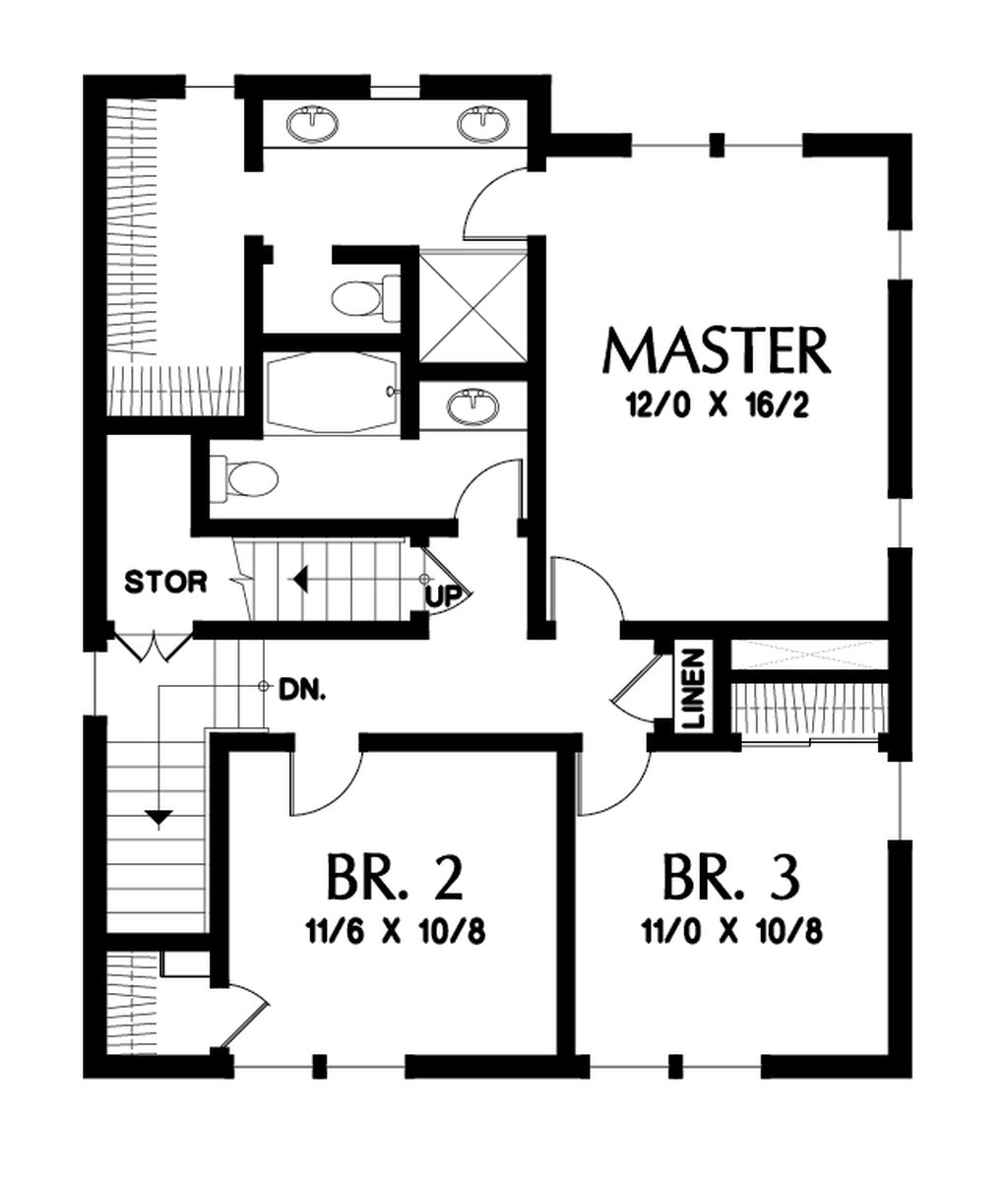

As the night wears on and guests start to leave, it will be time to turn your thoughts to bedtime. After all, you and your family will want to be well rested after a long night of Christmas Eve festivities. Up the stairs from the main floor, there are two bedrooms for the kids and the master suite for you and your partner. Once the kids are asleep, you and your partner can put the presents under the Christmas tree and then fall asleep to the sight of falling snow through the windows in the master bedroom.
Home Features
Home Details
Heated Space
Upper Floor
877 SqFtMain Floor
1076 SqFtBasement
590 SqFtSub-Total
2543 SqFtBonus
+ 533 SqFt
Beds and Baths
Bedrooms
4Full Baths
3Half Baths
1Floors
3
Exterior Dimensions
Width
28'-0"Depth
48'-0"Height (to Midpt)
25'-4"- 31'-6"
Garage
Garage Bays
1 Car GarageGarage Area
402 SqFtGarage Location
FrontGarage Orientation
Straight-On
Notable Features
Structure
Roof Framing
TrussRoof Material
Shake/Comp RoofSnowload
25 lb/sfWall Framing
2 x 6Main Roof Pitch
10/12Additional Code Compliance
City of Portland
Craftsman
