Front Rendering Plan 2470 The Rivendell Manor

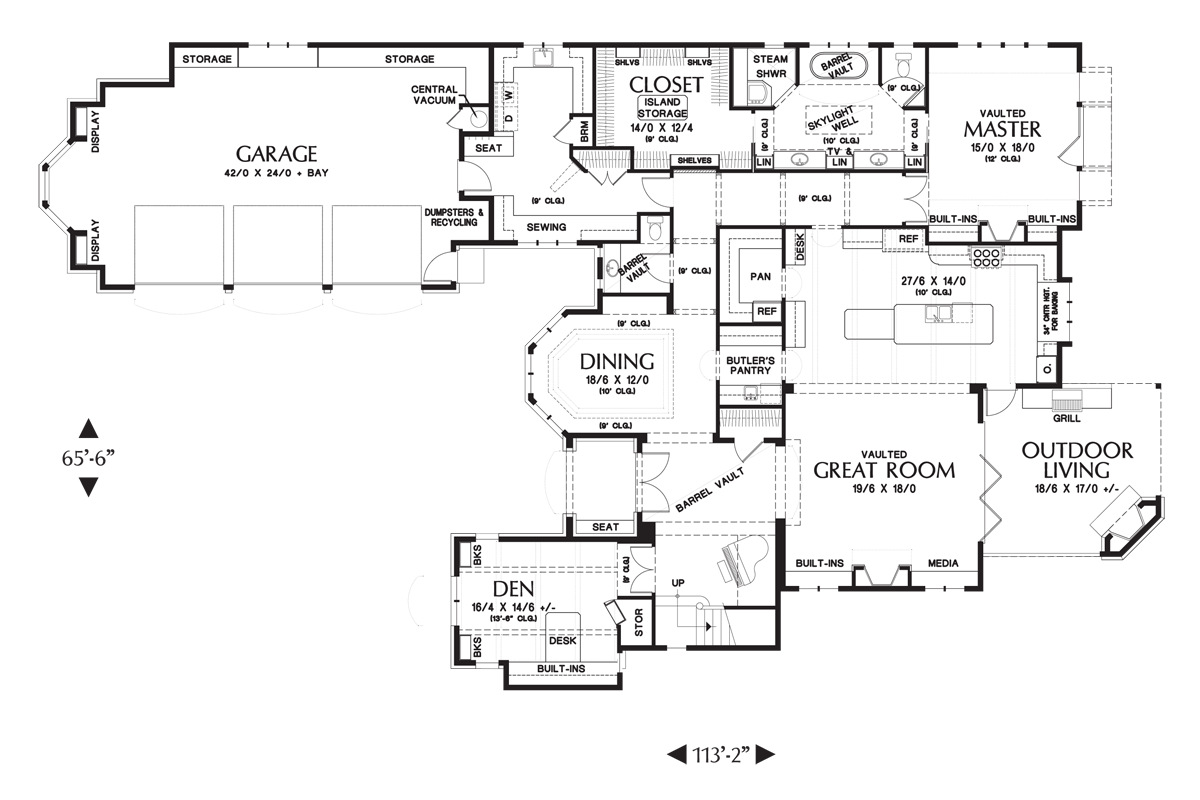

Main Floor Plan

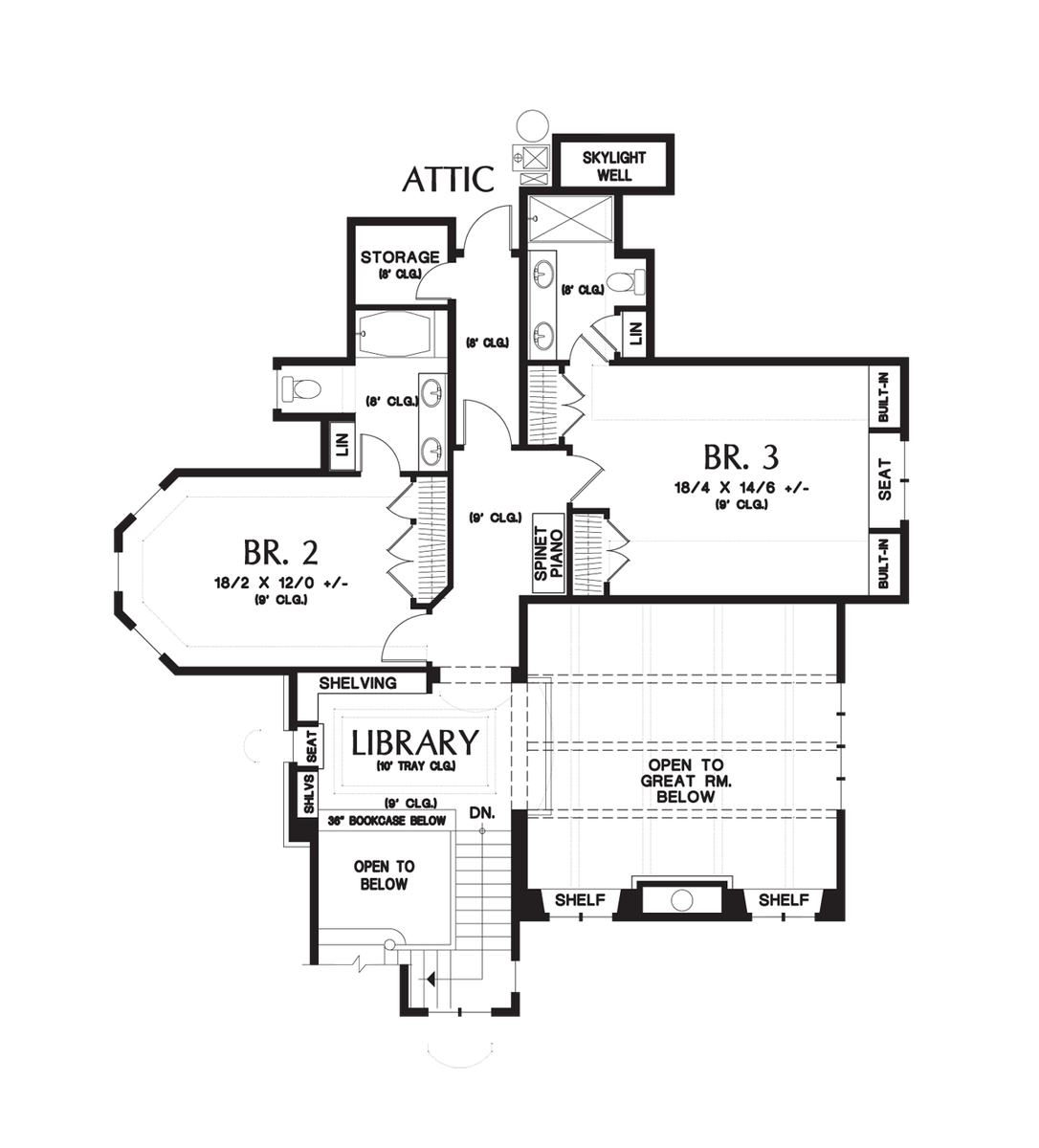

Upper Floor Plan

The Rivendell Manor

The 2012 NW Natural Street of Dreams home show was presented at the Vineyard, in West Linn, Oregon. BC Custom Homes constructed 'Rivendell Manor'---a magical storybook style home designed by Eric Schnell, of Alan Mascord Design Associates, Inc. The Rivendell Manor represents the 30th home designed by AMDA for the Portland Street of Dreams show since they first appeared in the show in 1987.

Architectural Styles Associated with this design

Cottage

Cottage

This home is typical of the cottage style. In modern usage, a cottage is usually a modest, often cozy dwelling, typically in a rural or semi-rural location. However there are cottage-style dwellings in cities, and in places such as Canada the term exists with no connotations of size at all (cf. vicarage or hermitage). In the United Kingdom the term cottage also tends to denote rural dwellings of traditional build, although it can also be applied to dwellings of modern construction which are designed to resemble traditional ones ("mock cottages").

European

European

Some of the features of this home are 'European'. European homes come in many guises, since the term reflects homes styled after those in many countries; English Tudor, French Country, and Dutch Gable, to name a few. Beyond the country of origin, there's also the period of history from which the style emerged; Georgian, Victorian, Greek Revival; the list is almost endless. The homes shown in the collection below feature elements inspired by those found in countries across the Atlantic.

Tudor

Tudor

We sure you'll agree this is a great tudor style home. We have a number of other tudor style home plans available in our collection that you might want to take a look at, and many of our plans can be adapted easily to include tudor or storybook style elements to the exterior. Our tudor homes typically have steep pitched gable roofs, with half-timber decorations on the exterior. patterned brick-work or stone, stucco and multi-paned windows in groups are also common.  Check them out!

Storybook

Storybook

Live a fairytale life in a storybook home! Most storybook homes are based upon a fanciful interpretation of medieval European homes, or traditional English cottage style, with some fantastic exaggerations. Storybook homes are often constructed to appear as though built up gradually over time, one addition per hundred years or so, or built primarily out of stone with battlements and turrets to resemble a castle. Have fun with your dream home and check out these great designs!

Photos Submitted by Our Customers:

Photographed Homes May Have Been Modified From The Original Design.

Comment on this Plan

These Collections May Also be of Interest To You

Mascord Designs Featured In the NW Natural Street of Dreams Street Of Dreams Homes

Your Favorite Plans

Similar / Related Plans

Front Rendering of Mascord House Plan 5033 - The Bucklebury
Photography of home plan 5033 Printable Page of House Plan 5033
  • 300 sq.ft.
  • Bedrooms:

    0
  • Baths:

    1
  • Stories:

    1
  • Width:

    17'-6"
  • Depth:

    23'-0"

Whimsical Day Use Shop, Potting Shed or Hideout

View Details
we will match any price found

Why buy from us?

We are the original designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

Firstly, as the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

Secondly, as owners and original designers of all the plans in our collection, we have ultimate version control of all the construction drawings, and regularly update our drawings to meet forever changing building codes. Buying directly means that plan support comes directly from the creators of the design. We also have exclusive access to our entire catalog of CAD drawings, with the ability to modify them quickly and cost effectively, or even provide a previously modified version of a stock plan that is not available with any other authorized seller. Call our customer care staff to discuss any modifications you would like to have done, and if the modification exists already - it can save you lots of time and cost. You're not going to find that anywhere else!

Furthermore, we know our plan collection inside out! If you have questions about an element in the design, or even a question during construction - we are the ones able to answer those questions for you, quickly and accurately.

We support all of the plans we sell, and purchasing direct, you're able to take advantage of the high level of customer service we provide. If you have any questions, or to simply place an order for your home plans, call 800 411 0231.

Will This Design Work For Your Location?

All house plans licensed by Alan Mascord Design Associates Inc are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states). We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

To find out exactly what details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

Your area may have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and entire construction drawings stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.
