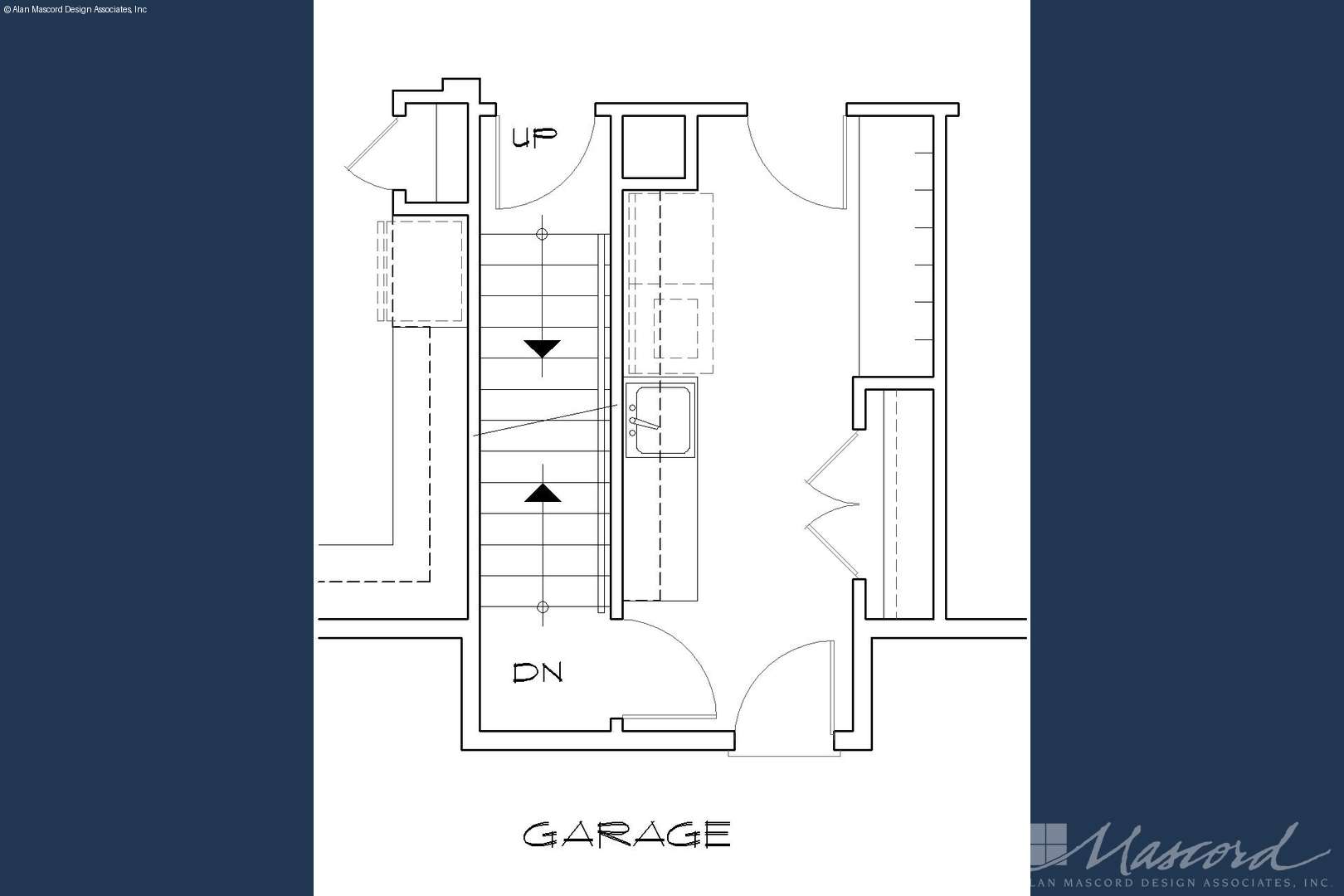

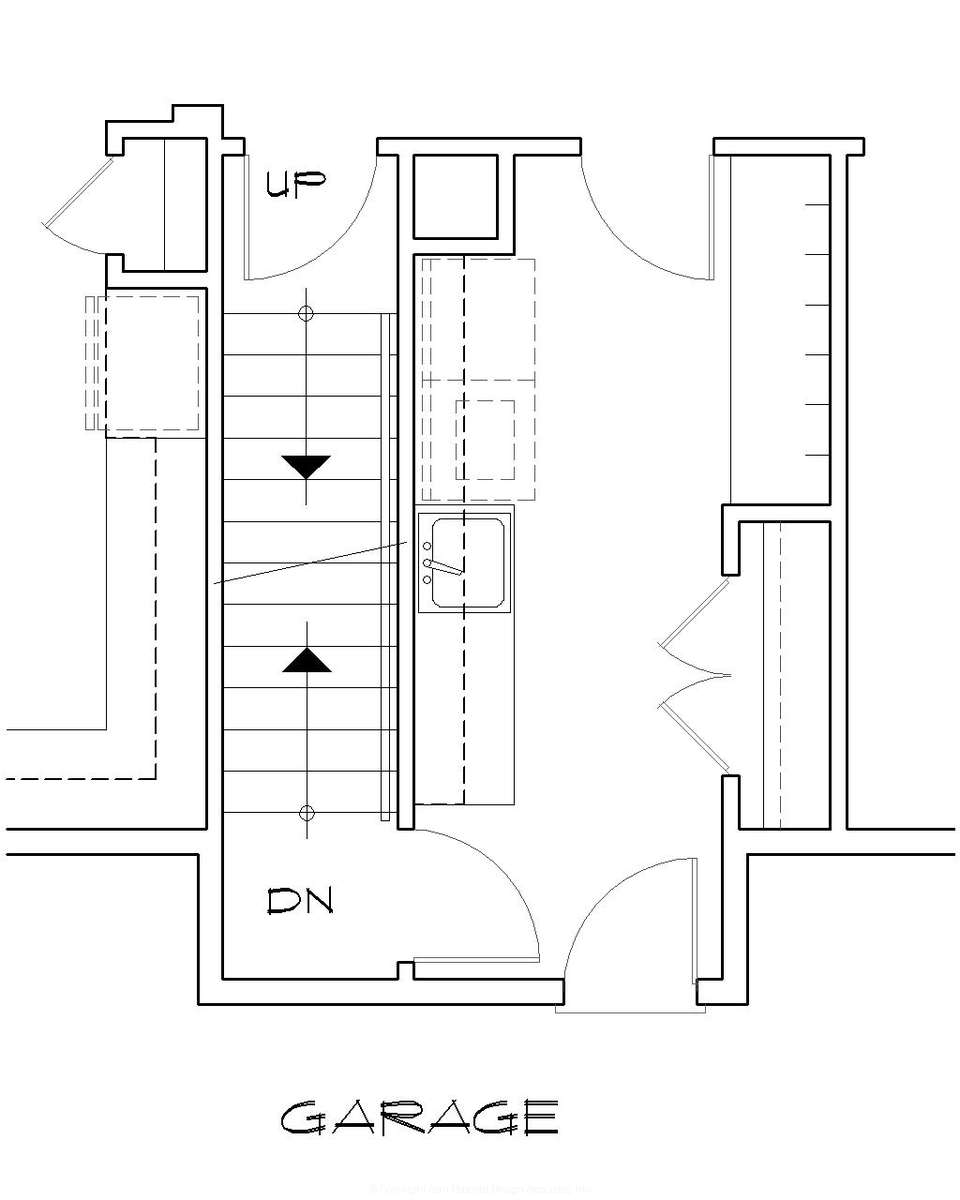

Plan 22157AA Basement Details
Plan 22157AA - The Ashby - Basement Details
- 2768 (+349 Bonus)
2 / 1
3 Car Garage
Main Floor Plan
Upper Floor Plan
Basement Floor Plan

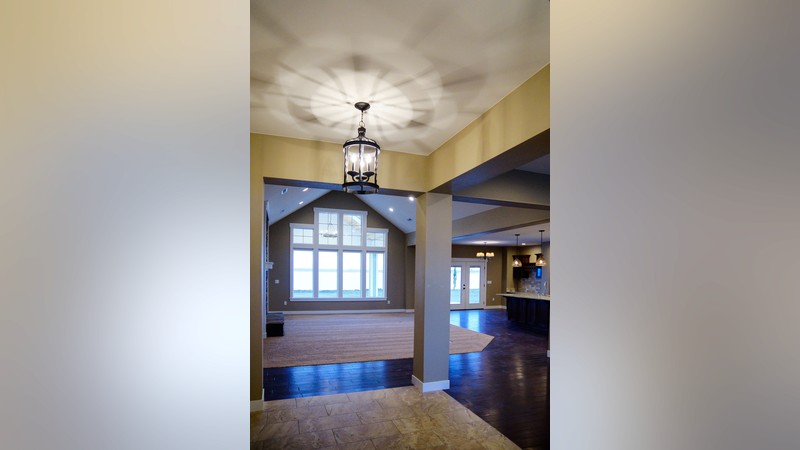

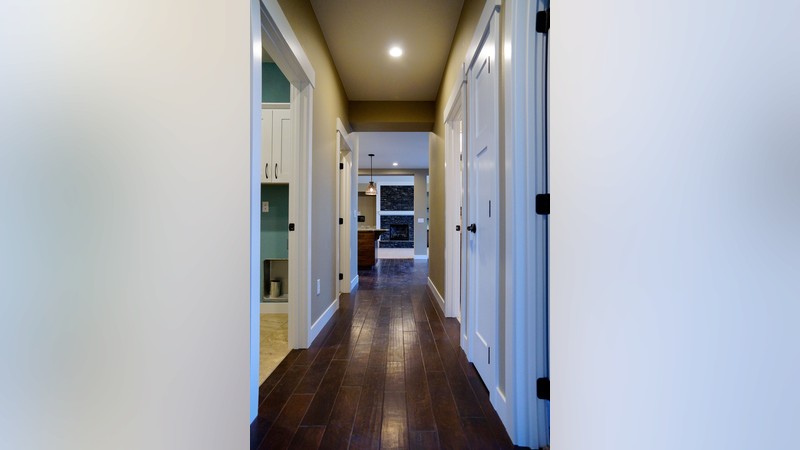

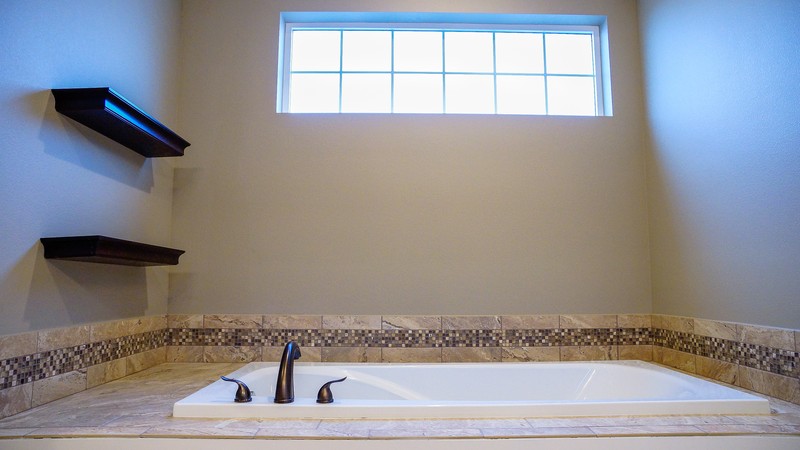

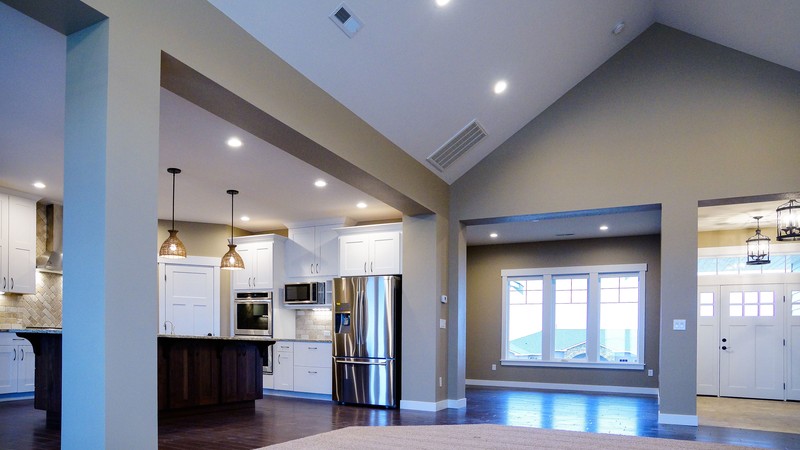

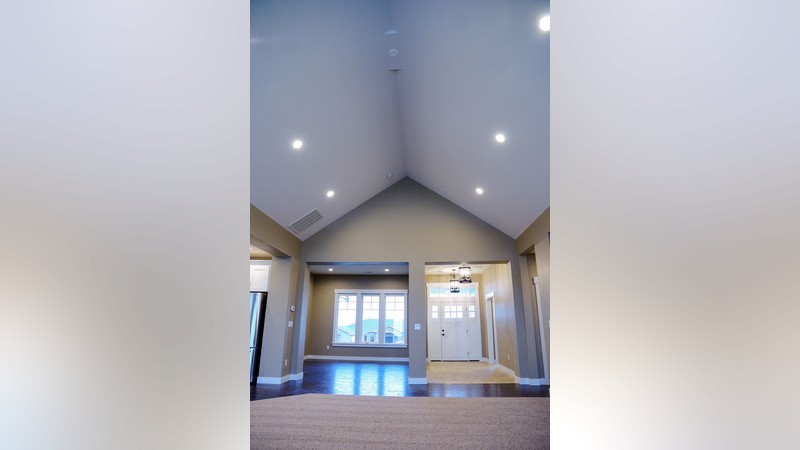

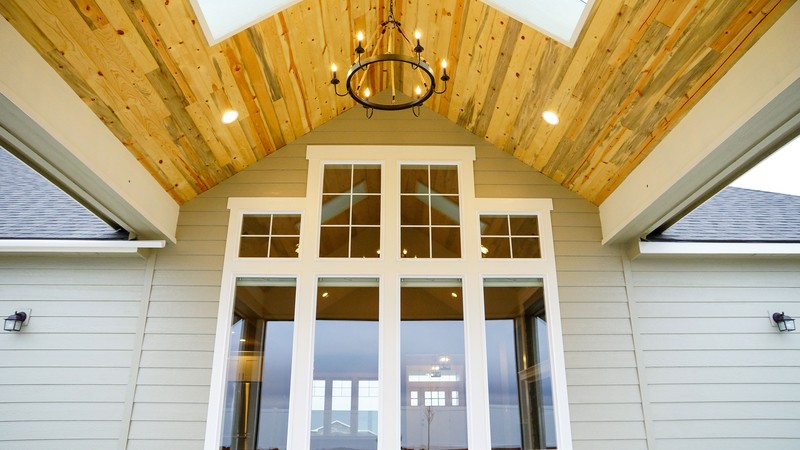

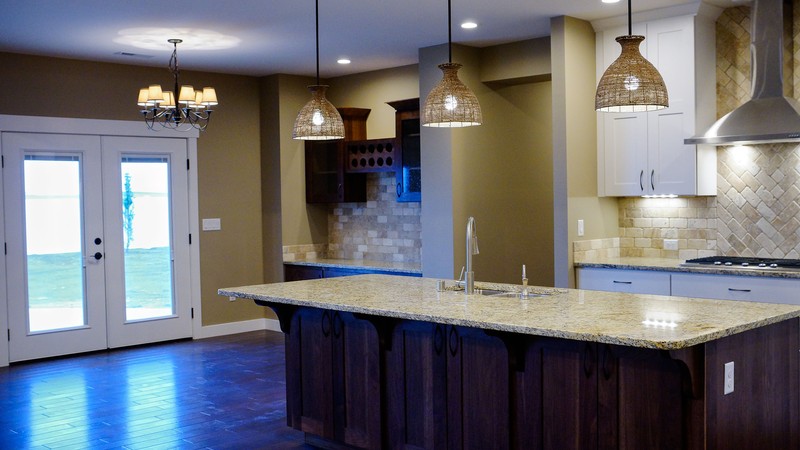

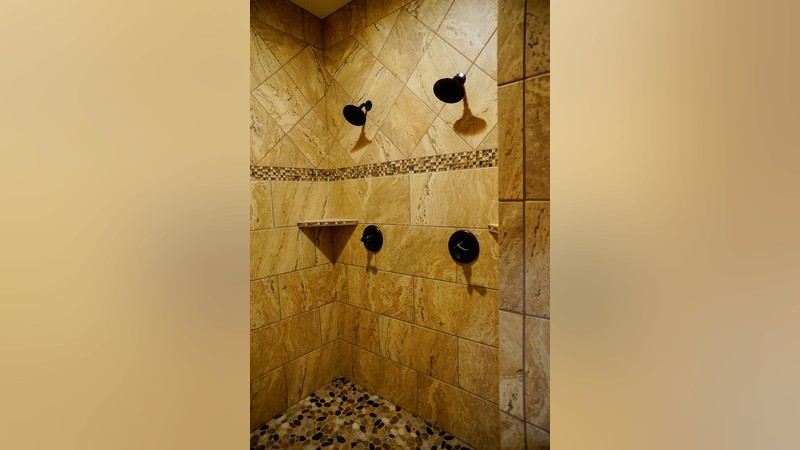

Photographed Homes May Include Modifications Not Reflected in the Design
A Walk Through The Ashby

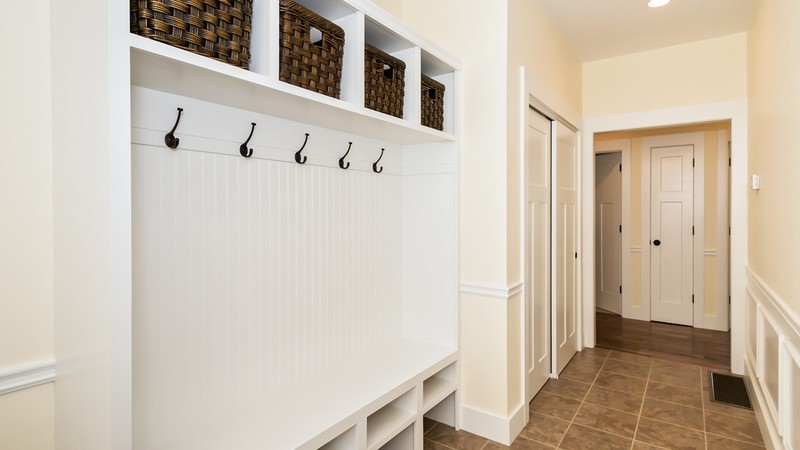

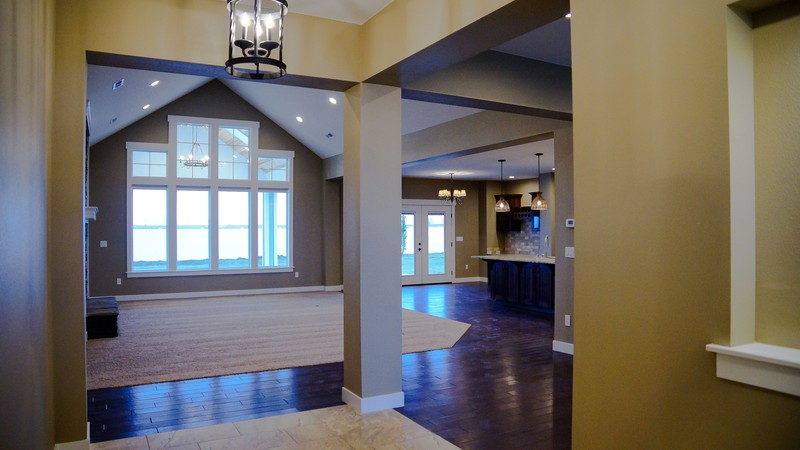

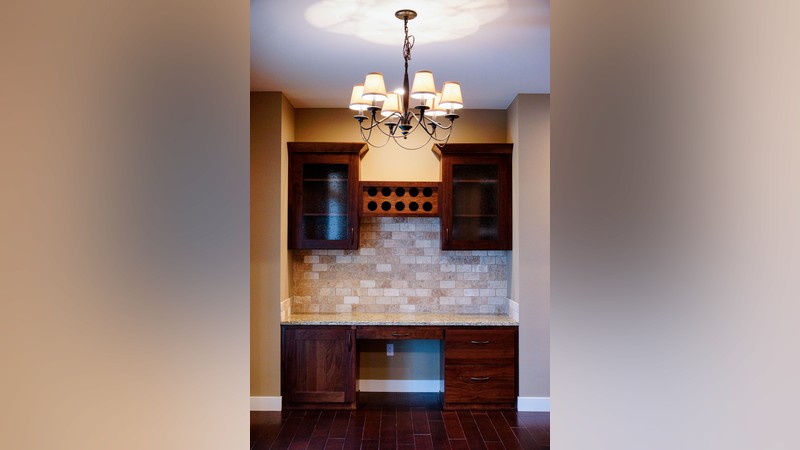

Simplicity and time-tested design enforce this craftsman-style home with durability and unadorned elegance. This open plan enjoys main-level living with a bonus, upstairs storage space. The breathtaking, nearly 3,000 square feet main level features a vaulted great room, formal dining room, master suite, eating nook, two additional bedrooms and a three car garage. Unique built-ins give the home character, which include a seat in the foyer, a bench in the utility room, a desk in the eating nook, and displays in the dining room. With its impeccable details, this free flowing craftsman defines effortless style.
Main Floor2768 SqFt
Bonus+ 349 SqFt
Bsmnt (Unfin.)+ 2596 SqFt
Beds and Baths
Height (to Midpt)18'-3"
Garage Bays3 Car Garage
Garage Area743 SqFt
Roof MaterialShake/Comp Roof
Wall Framing2 x 6
Main Roof Pitch10/12
The Mascord collection of craftsman house plans highlight features that were first introduced with the Arts and Crafts movement, which thrived from 1876-1915, and continues to be celebrated today. These homes have great curb appeal, lots of detail and the amenities you need for modern living. Check out the collection for more great home designs.
Our Lodge house plans are inspired by the rustic homes from the Old West. Whether you’re looking for a modest cabin or an elaborate timber-frame lodge, these homes will make you feel you’re away from it all (even if you live in the suburbs). The homes rely on natural materials for their beauty. Among the materials used are heavy timbers, wood siding, stone, gable end braces, and cedar shakes. While different in theme, each design promotes a rustic feel that will effortlessly blend with verdant landscapes and mountain vernacular. The floor plans promote outdoor views, making them ideal for sites with mountain vistas, cityscape scenes, and lakeside access.
This plan is based upon another design - 22157AA
- Added 33 SqFt to finished area
- Overall Depth decreased 6ft.
for Plan 22157AA
To order this configuration, choose 'In-Ground Basement' from available foundation options on the page for Plan 22157AA
