Mascord House Plan 1163: The Westside

The Westside

Plan 1163

  • 1508 SqFt
  • 2 Beds
  • 2 Baths
  • 1 Floor
  • 2 Car Garage

Home Details

Heated Space

  • Main Floor

    1508 SqFt
  • Total Area

    1508 SqFt

Beds and Baths

  • Bedrooms

    2
  • Full Baths

    2
  • Floors

    1

Exterior Dimensions

Garage

  • Garage Bays

    2 Car Garage
  • Garage Area

    584 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Notable Features

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    2/12

A Walk Through The Westside

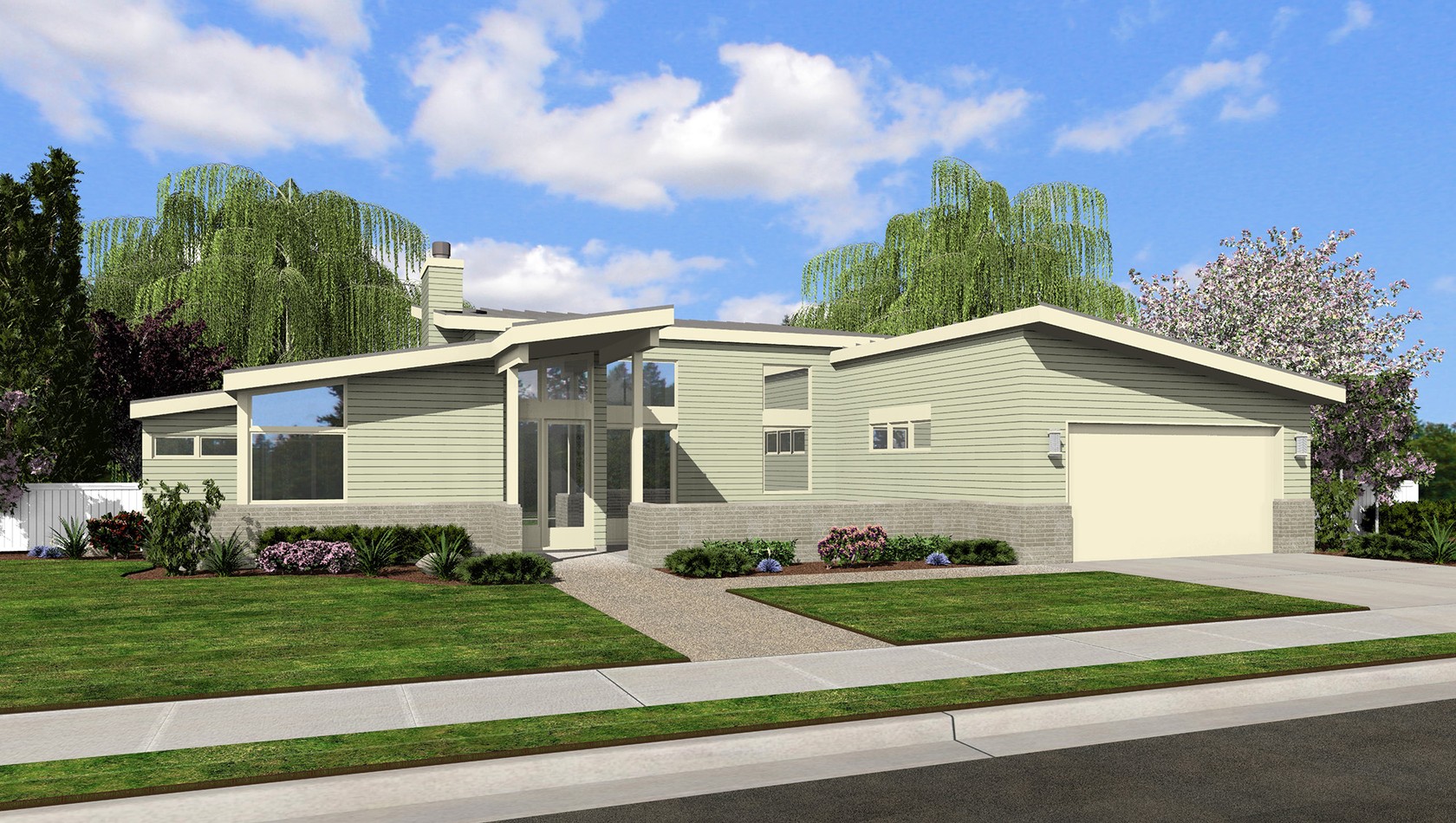

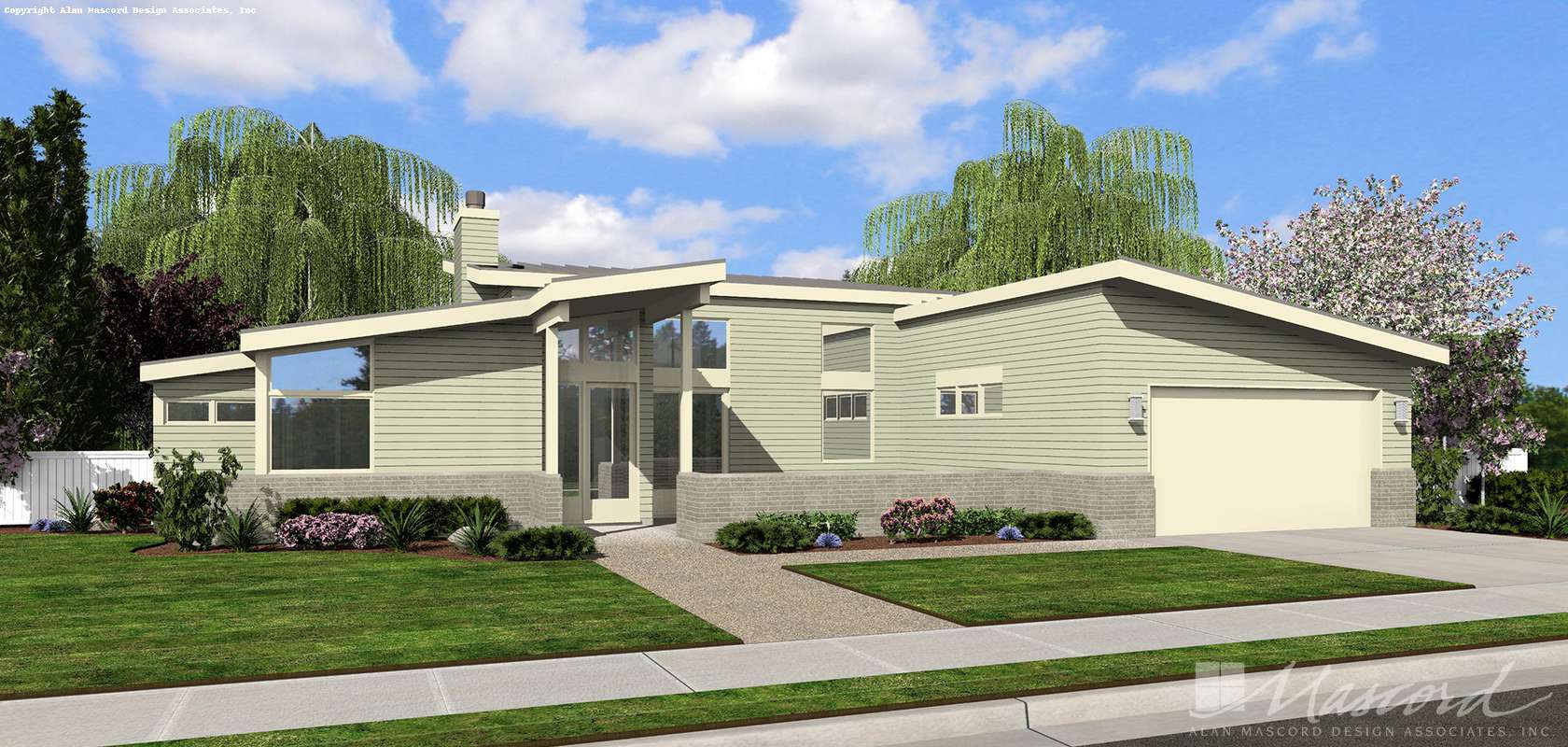

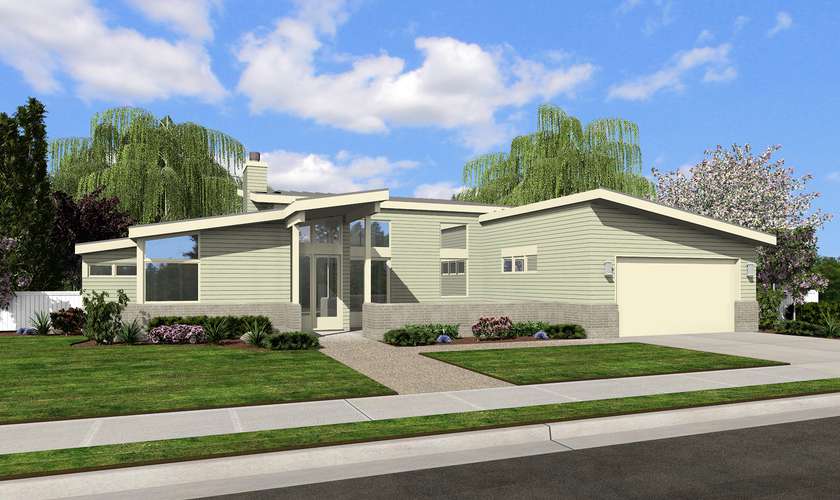

You can build the Westside as a vacation home now, but you’ll find that you love it so much, you might just move into it once the kids have grown up and moved out on their own. This Contemporary home, with its beautiful roofline and numerous windows, belongs on a pristine beach so that no matter where you are, you can look out at white sand and rolling waves.

From the moment you first approach the Westside’s front courtyard, you’ll fall in love. You’ll want to linger in the privacy of that walled space as you enjoy the simple elegance of the windows and doors leading into the foyer and great room.

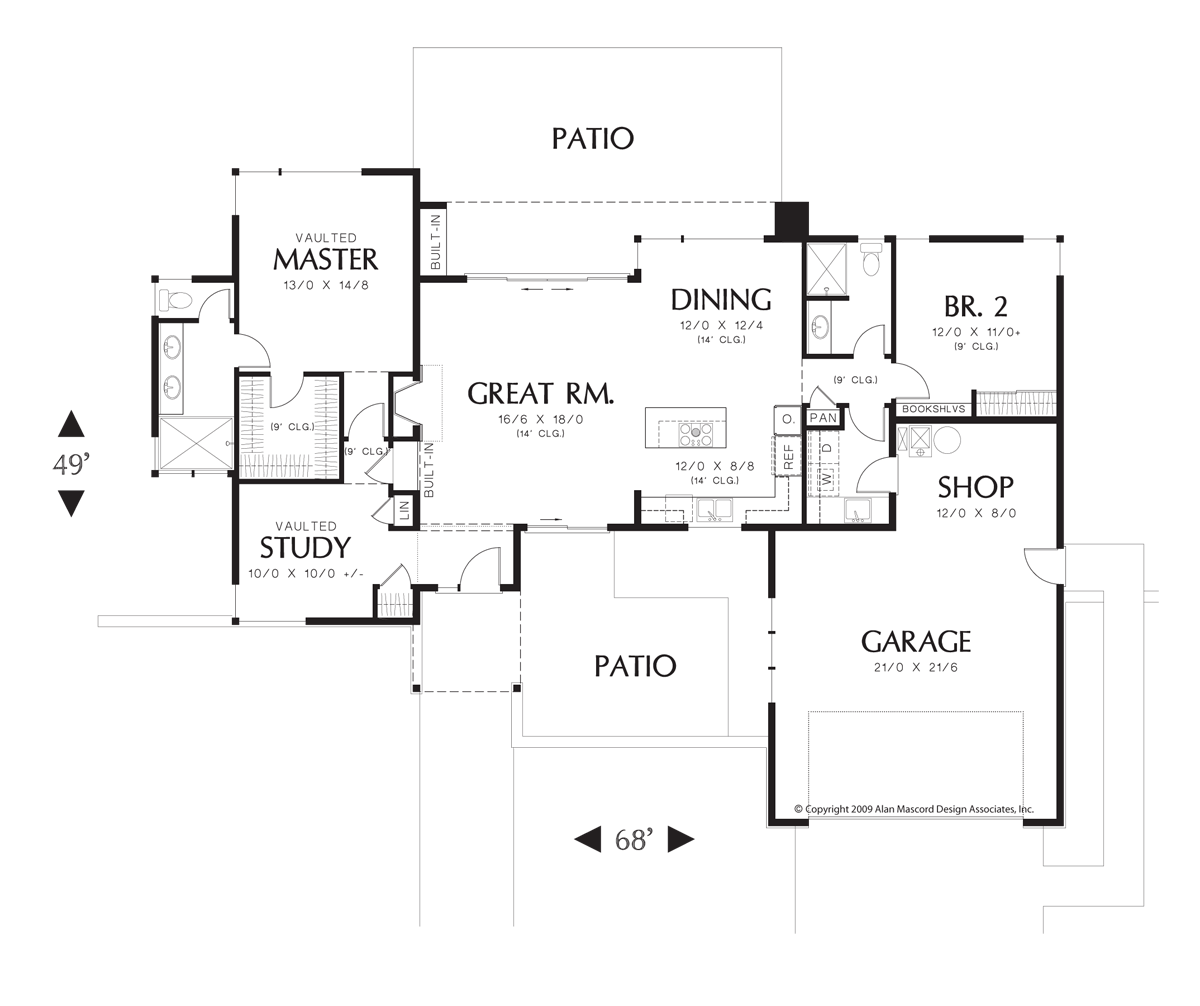

Step inside, and you’ll be standing in the combined great room, kitchen and dining area. With all the natural light filtering in through the front and rear windows, this space has a fresh, breezy feel. Settle into a comfortable chair and watch through the rear windows as ocean birds swoop over the waves. That view will make you wish that you could stay on vacation just a week or two longer.

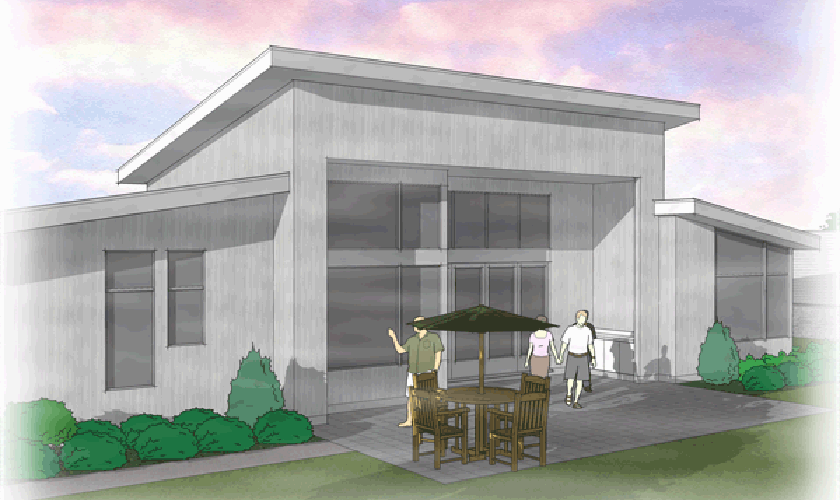

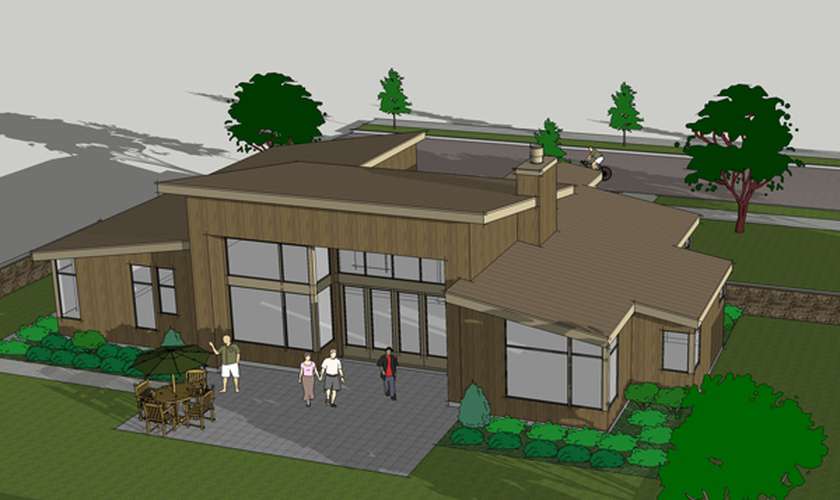

When you want to bask in the sun or watch the stars go by, the back patio is the place to be. With the addition of a fire pit and some tables and chairs, you’ll be ready to invite fellow vacationers over for a Caribbean-themed barbeque. If peace and quiet is what you want, the patio makes a great starting point for a stroll along the beach.

Inside, the vaulted study gives you a place to retreat when you’ve had your fill of wind and waves. Enjoy a few moments of quiet introspection, settle in with a favorite book or let the feelings of tranquility inspire you to do something creative.

For even more creative space, you can use the shop in the garage as your own personal hobby area. In fact, if you move into the Westside permanently, this spot might just inspire you to take up woodworking or another craft.

As the sun sets on yet another dreamy day, you’ll find yourself looking forward to the comforts of the master suite. Rinse away the day’s cares in the master bathroom’s tiled shower, and then you’ll be able to curl up in bed and let the sight and sound of moonlit waves lull you into a deep sleep.


Comments

Choose Plan Set

Choose Foundation

Additional Options

Call (503) 225-9161 to
complete your order via Phone

Similar and Related Plans

Plan 1163A The Queensbury
Photography of house plan 1163A
  • 1508 sq.ft.
  • Bedrooms:

    2
  • Baths:

    2
  • Stories:

    1
  • Width:

    68'-0"
  • Depth:

    49'-0"

Flat Roof Modern Version of Plan 1163

Plan 1163B The Oxenhope
  • 1508 sq.ft.
  • Bedrooms:

    2
  • Baths:

    2
  • Stories:

    1
  • Width:

    68'-0"
  • Depth:

    49'-0"

Traditional Hip Roof version of Plan 1163

Plan B1163
  • 1532 sq.ft.
  • Bedrooms:

    2
  • Baths:

    2
  • Stories:

    1
  • Width:

    68'-0"
  • Depth:

    49'-0"

Plan 1163 with an
In-Ground Basement

Builders known to be experienced constructing this home include:

T.H.E. Remodel Group Tualatin, OR 5038691290
AMERICAN COLONIAL HOMES, LLC MOUNT LAUREL, NJ 8664226198
SIERRA LOG & TIMBER CHICO, CA 5308990680
TRADITIONAL HOME BLDG. & DEV. DUANESBURG, NY 5183653719
US Log and Timber Dallas, TX 7703632715
Green Construction Holmes Builders Chicago, IL 7738957818
J.T. Roth Construction Portland, OR 5036392639
Chilton Custom Homes Woodland, WA 3609980462
KELLI & LANG REMAX GATEWAY ANACORTES, WA 3602938654
(find more builders in our Builder Directory)

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Electronically delivered house plans - including PDF and CAD files - are none-refundable and non-exchangeable. All exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
