Image for Galen-Traditional Plan with Fireplace and Media Center-449

The Galen

Plan 1231

View 360 Save
View Photos
View Basement Version
Floor Plans Details Comments Flyer

Traditional Plan with Fireplace and Media Center

  • 2001 SqFt
  • 3 Beds
  • 2 Baths
  • 1 Floor
  • 3 Car Tandem Garage

Floor Plans

Image for Galen-Traditional Plan with Fireplace and Media Center-Main Floor Plan

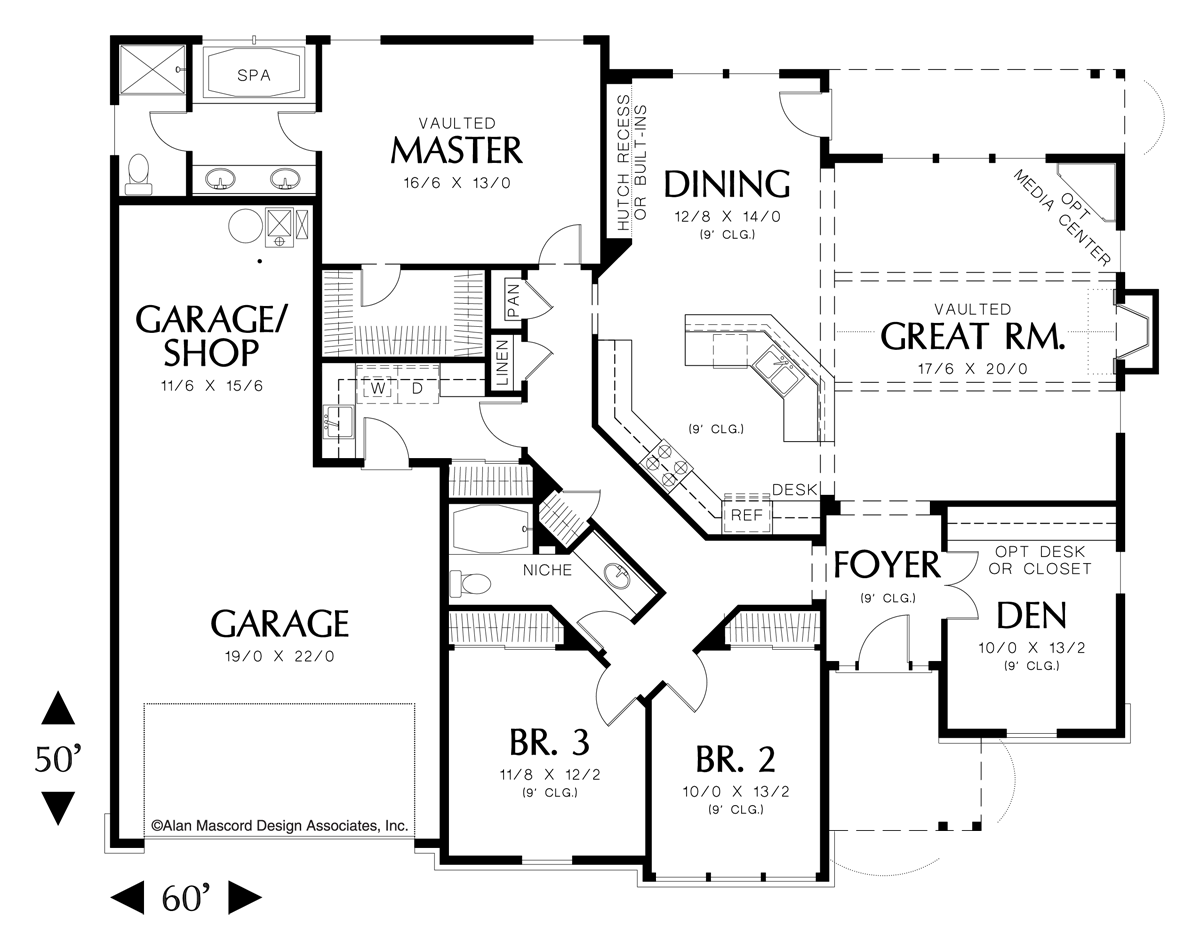

Main Floor Plan

Home Details

Heated Area

  • Main Floor

    2001 SqFt
  • Total Area

    2001 SqFt

Amenities

  • Bedrooms

    3
  • Full Baths

    2
  • Floors

    1

Dimensions

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    8/12

Garage

  • Garage Bays

    3 Car Tandem Garage
  • Garage Area

    625 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Foundations

  • Joisted Crawlspace (default)
  • Post & Beam @ 32" O/C (optional)
  • Post & Beam @ 48" O/C (optional)
  • TrusJoist Floor System (optional)
  • Slab (paid upgrade)

A Walk Through The Galen

Daylight basement of 784 sq ft available. Call our sales team at 1-800-411-0231 ext 707 for details on plan 1231B and a study set on this modified version

Modified plan 1231E is designed with a Bonus Room over the garage of 400 sq ft. For details and a study set call our sales team at 1-800-411-0231 ext. 707

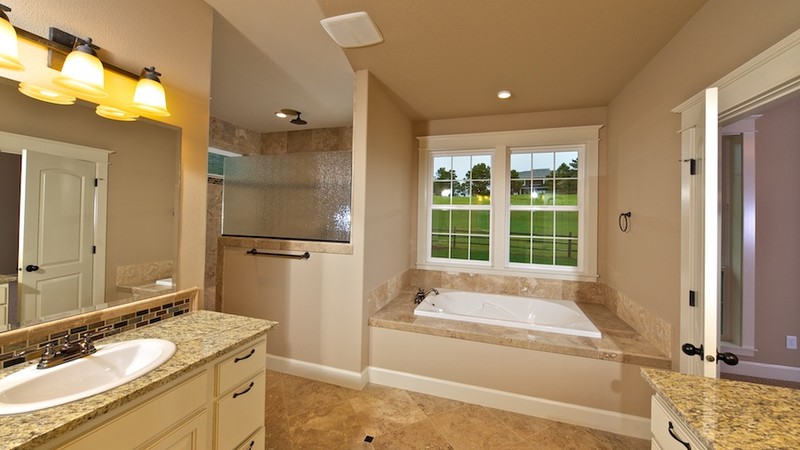

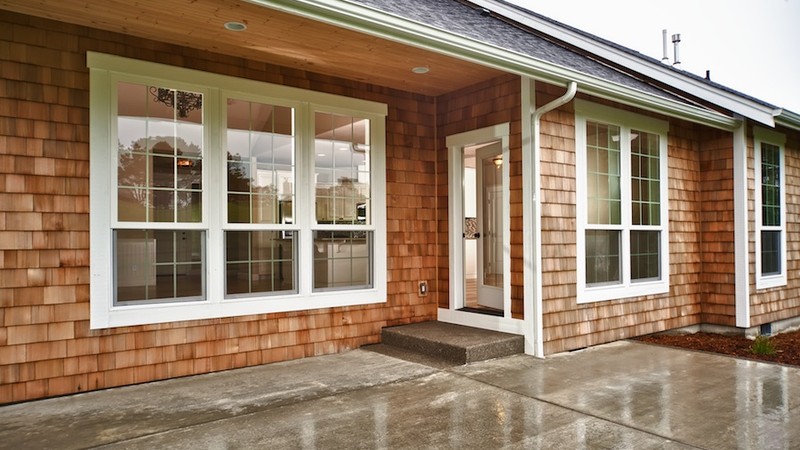

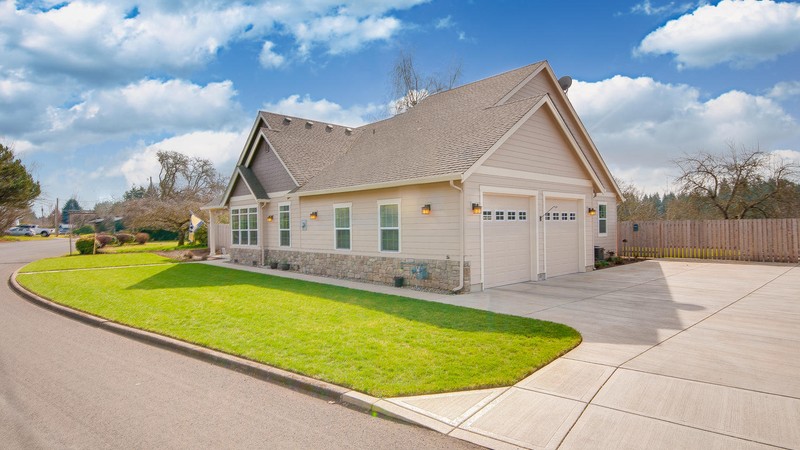

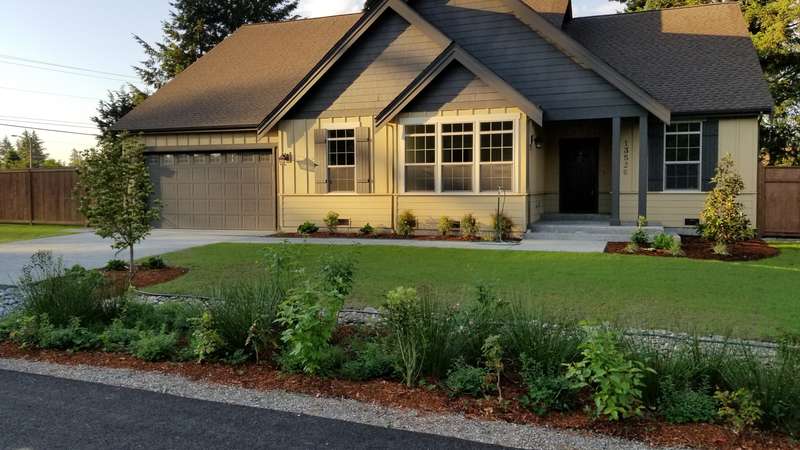

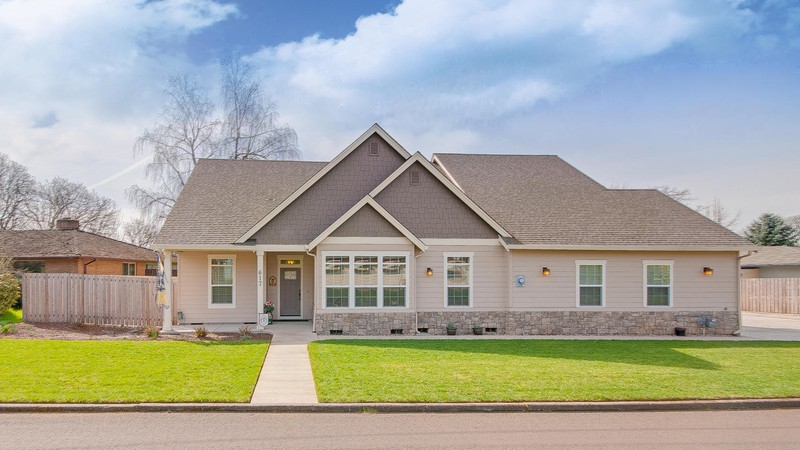

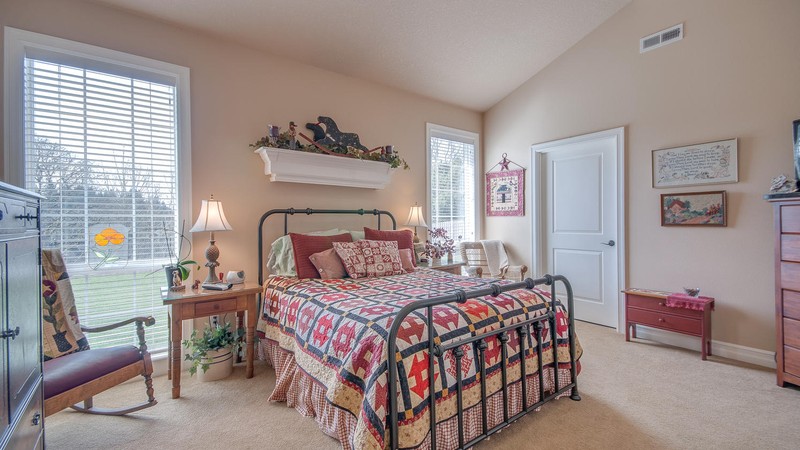

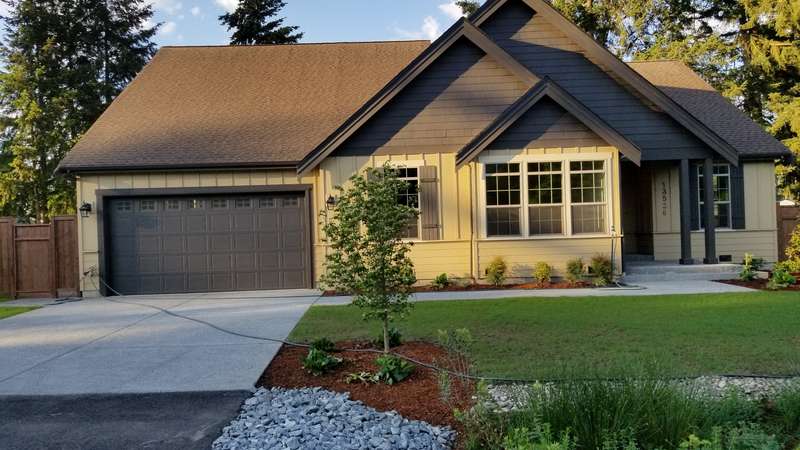

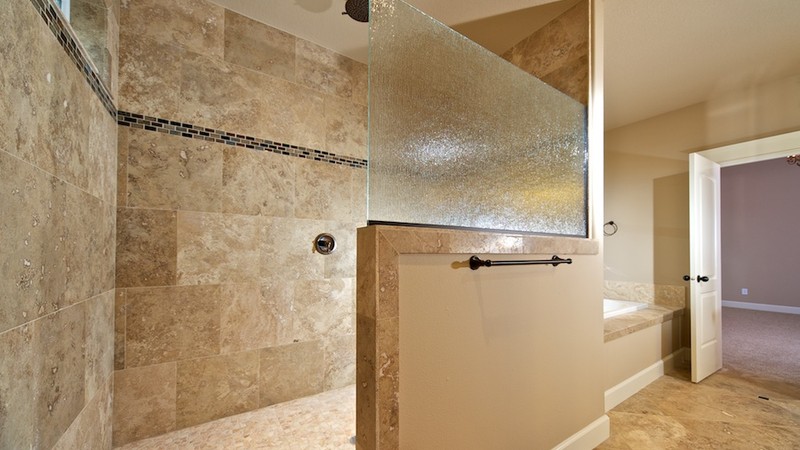

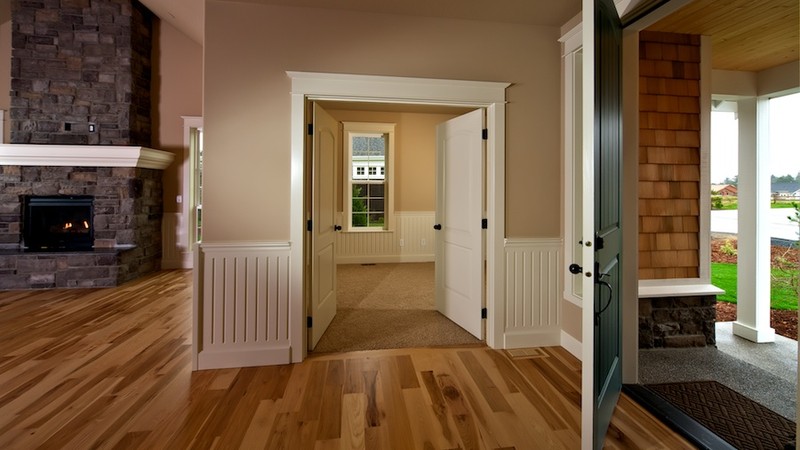

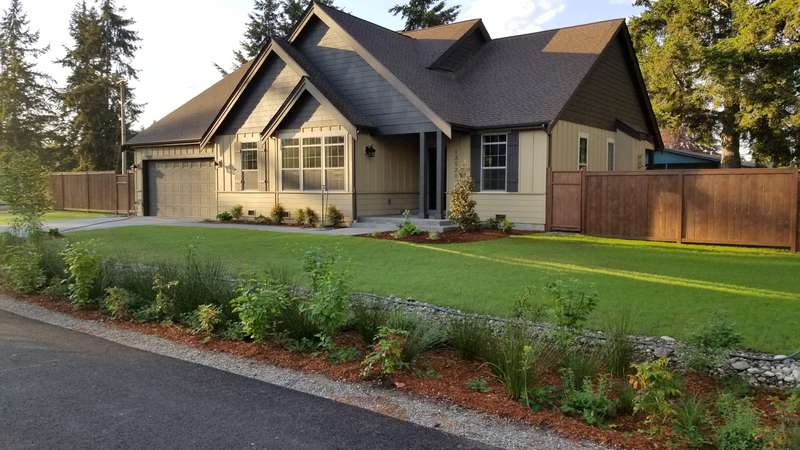

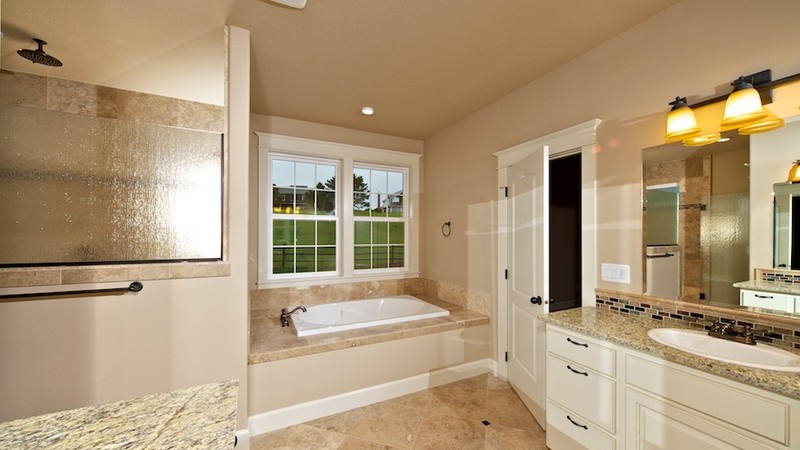

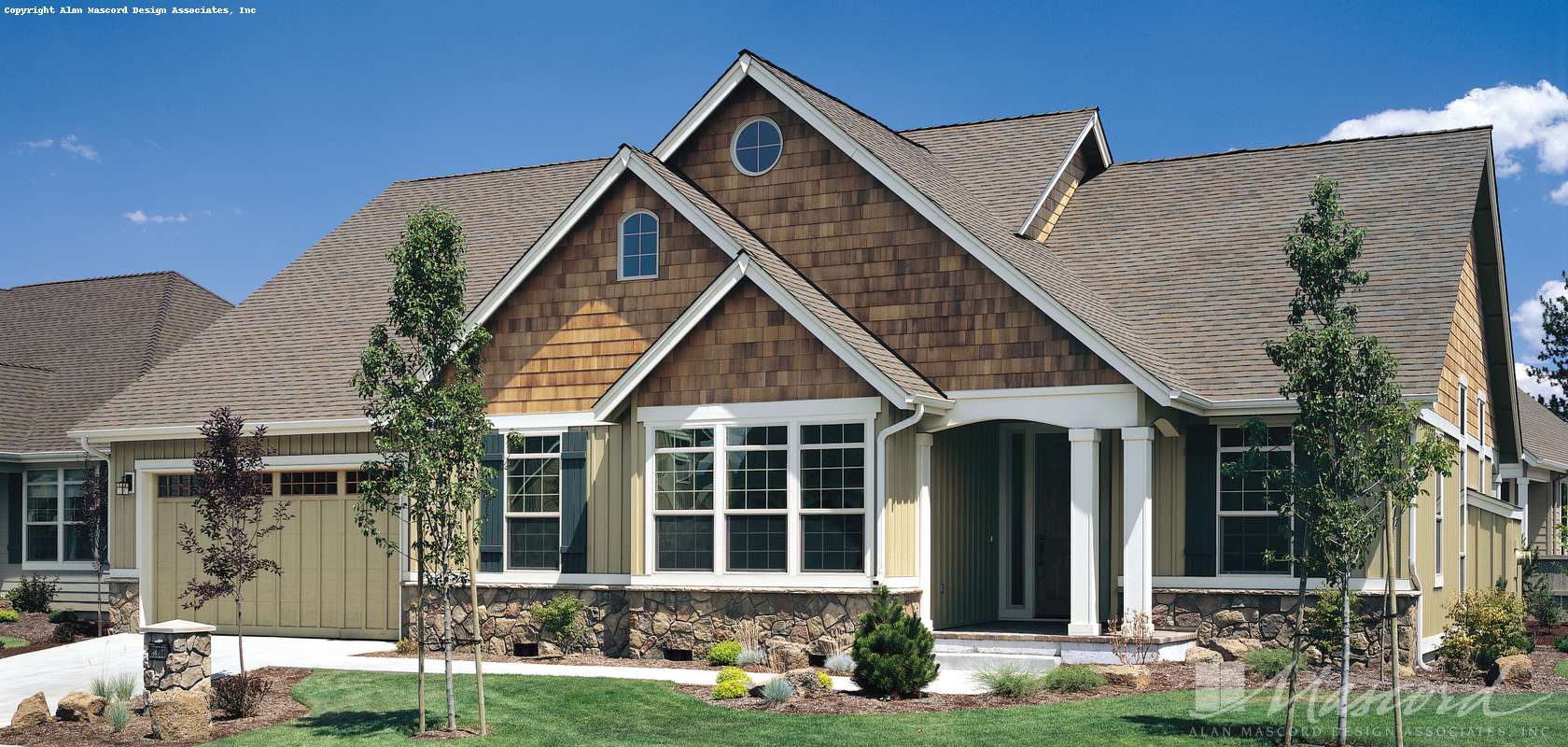

A version of this plan was featured in the 2006 Central Oregon Builders' Association Parade of Homes, and was awarded the 2006 Best Value for its price category. A fine design for a country setting, this one-story plan offers a quaint covered porch at the entry, cedar shingles in the gables, and stonework at the foundation line. The pretty package on the outside is prelude to the fine floor plan on the inside. It begins at the entry foyer, which opens on the right to a den with nine-foot ceiling and space for a desk or closet. A hallway on the left of the foyer leads to three bedrooms - two for family and guests and one for the owners with a walk-in closet and private bath with spa tub.

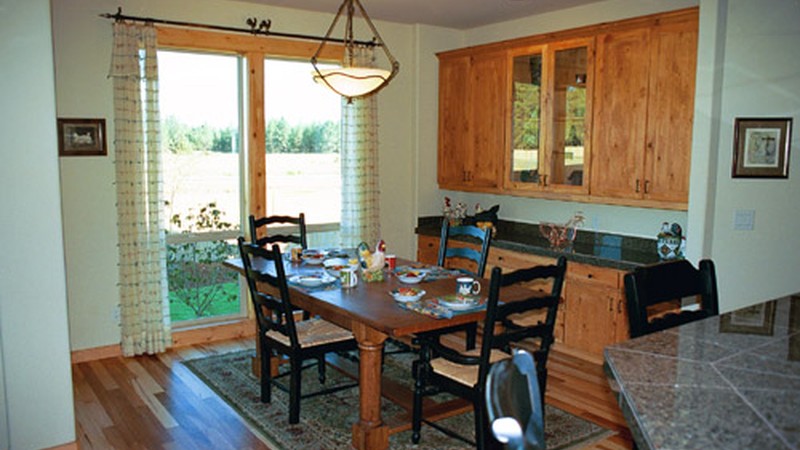

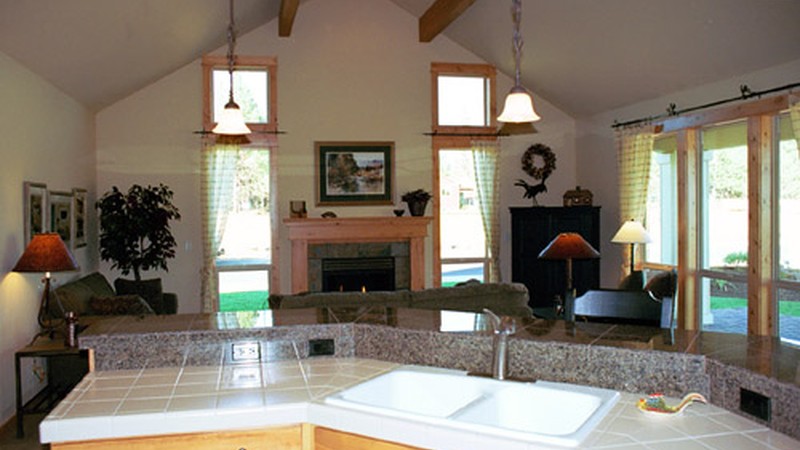

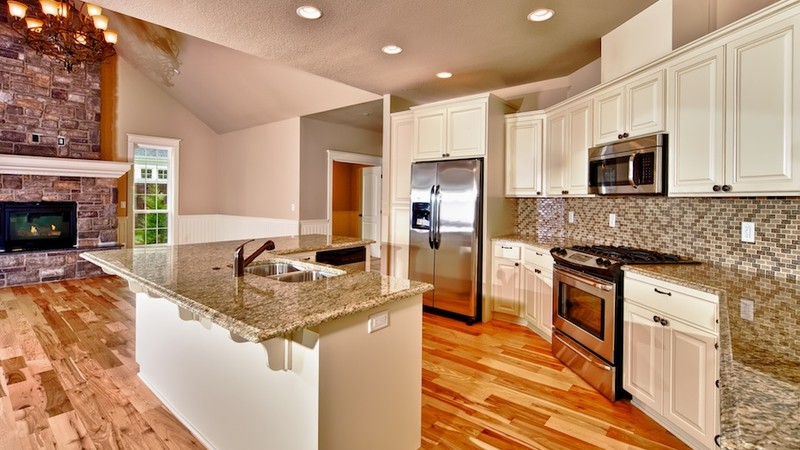

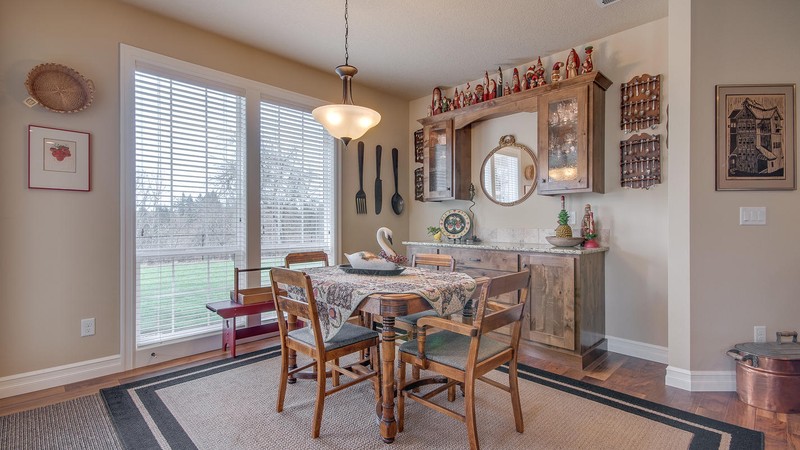

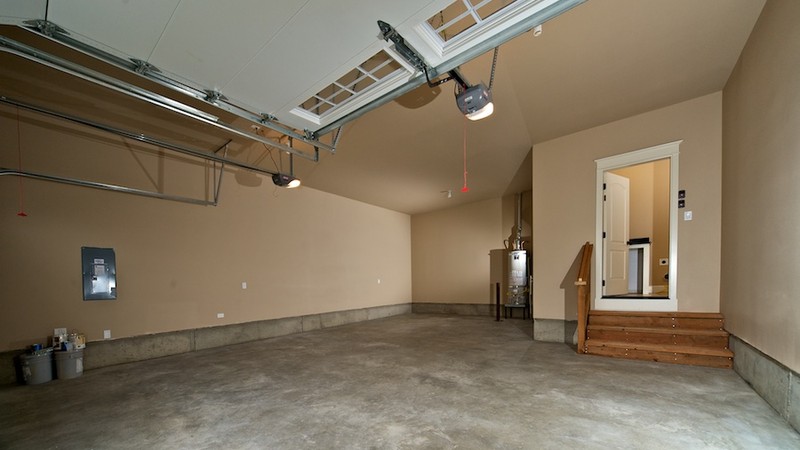

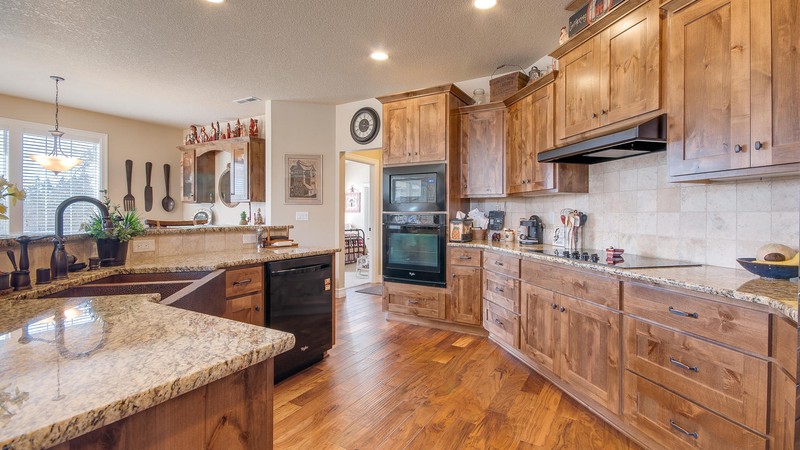

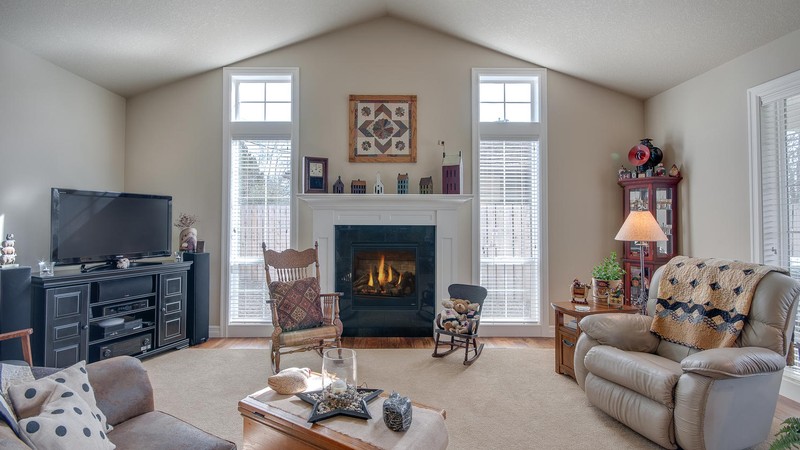

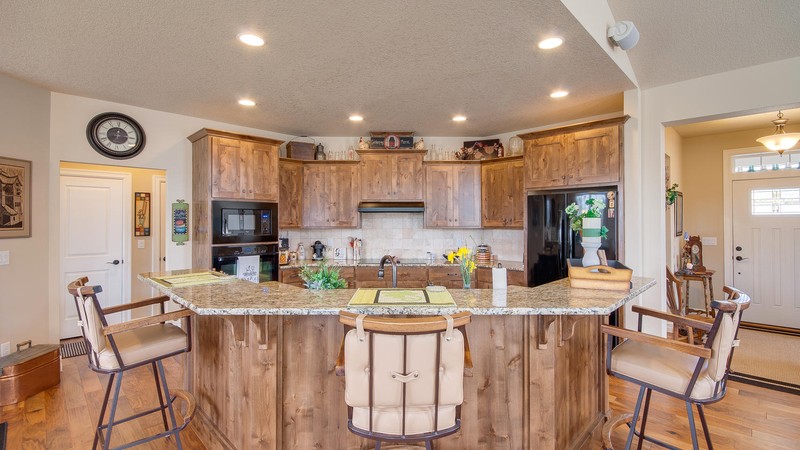

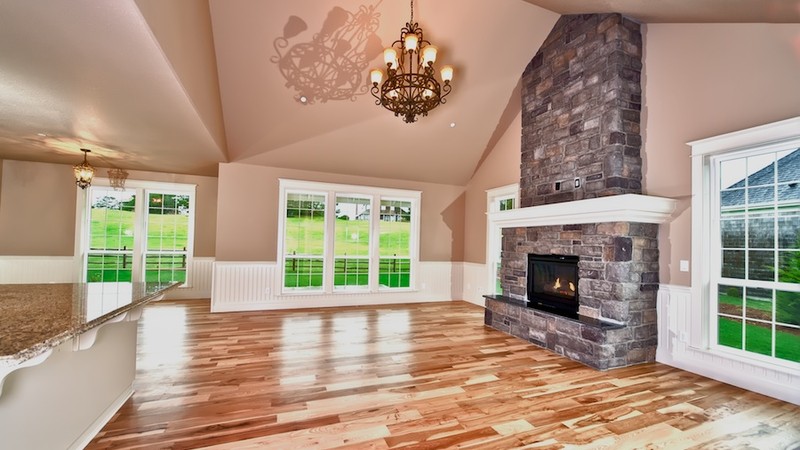

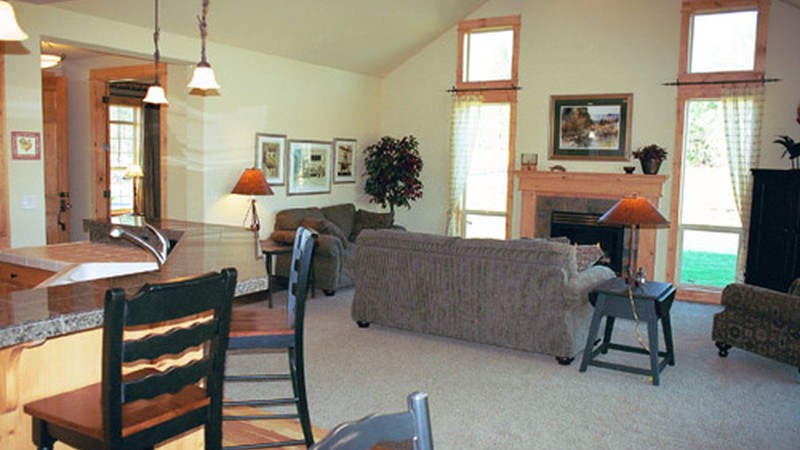

The master salon is vaulted. The great room is vaulted as well and contains a fireplace and optional media center. Both the dining room and kitchen have nine-foot ceilings. The dining room allows space for a hutch or built-ins as you choose. The two-car garage lies just beyond a service entry that holds the laundry room and a closet. Extra space in the garage can be used for a third car, storage or as a workshop.

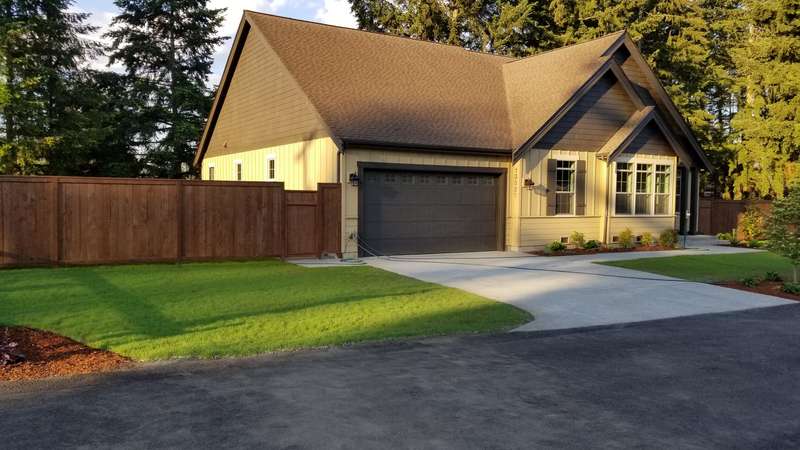

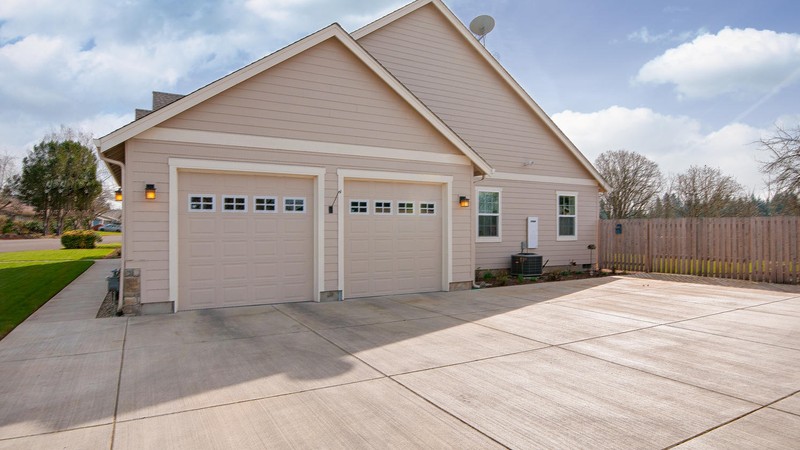

Additional Photos

Comments

Please Log-In with your Mascord ID to view and leave comments.
If you don't have one, Register Here.

House Plan Packages

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

We only publish a small subset of 'base plans' through our publishing outlets and thrid party websites, but have direct access to thousands of previously modified versions in our inventory. Working with is directly, we can work to find the version that suits you best - sometimes without the need to modify further.

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Builders known to be experienced constructing this home include:

N.W. CLASSIC HOMES Vancouver, WA (503) 201-3266
QUAIL HOMES Vancouver, WA (360) 907-5800
Rain Creek Construction Vancouver, WA (360) 518-1877
Lexar Homes Olympia, WA (877) 914-0831
Black Diamond Homes Tigard, OR 503-201-6304
(find more builders in our Builder Directory)
