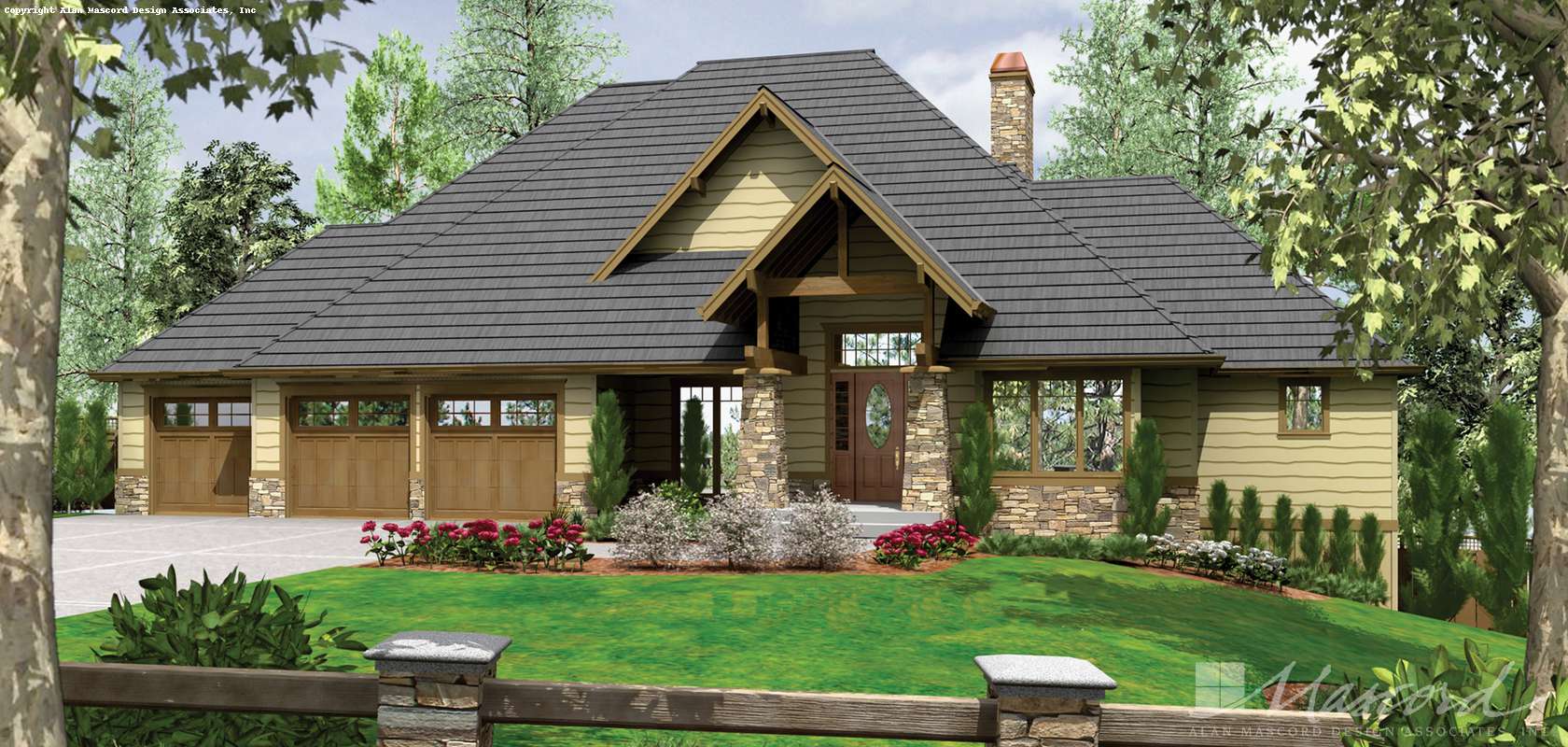

Image for Lenhart-Craftsman Style Home Plan for Down-sloping Lot-652

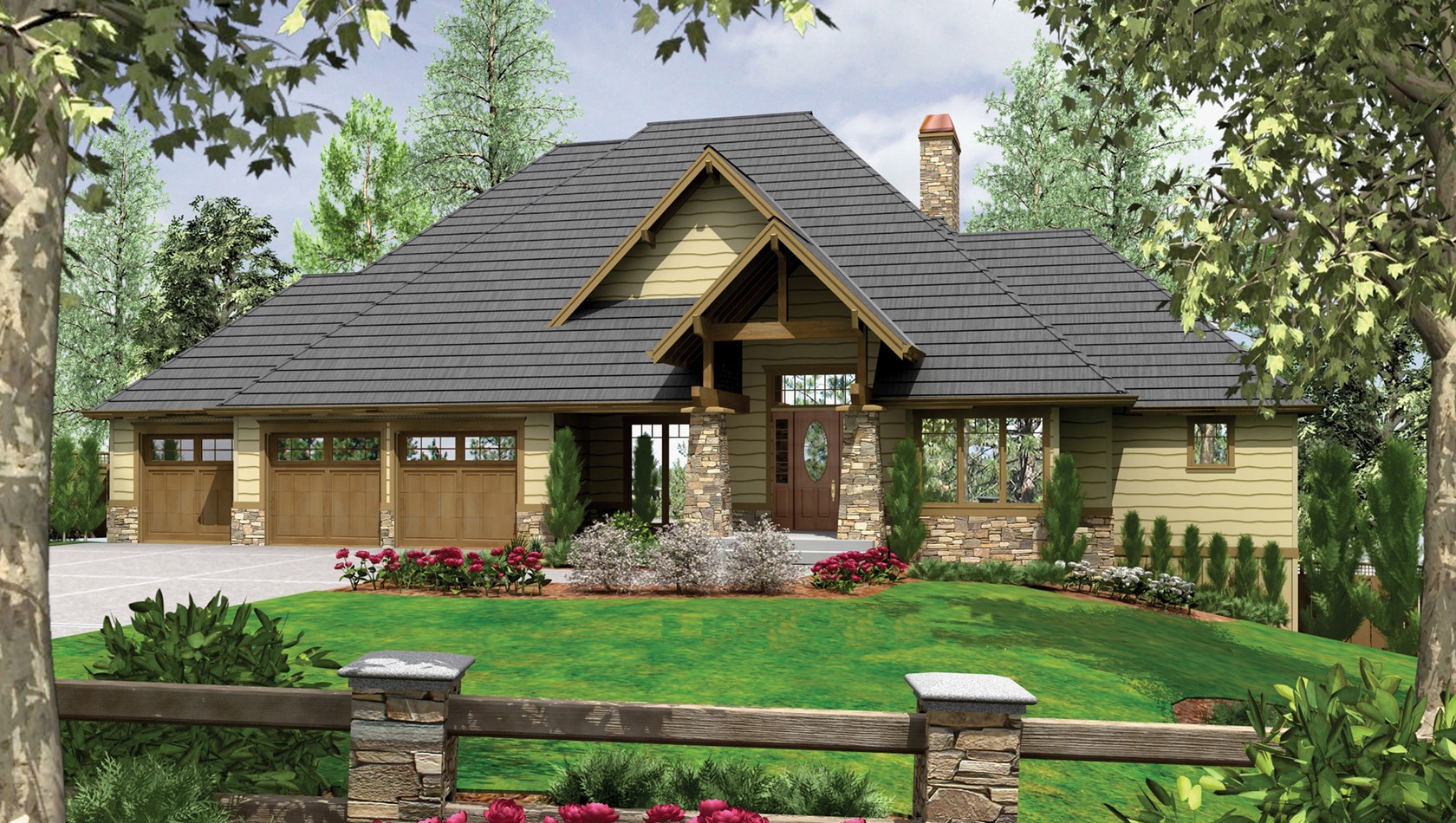

Image for Lenhart-Craftsman Style Home Plan for Down-sloping Lot-653
Details Floor Plans Pricing Flyer Comments

The Lenhart

House Plan 1324

Craftsman Style Home Plan for Down-sloping Lot

  • 3423 SqFt
  • 3 Beds
  • 2 Baths
  • 1 Pwdr
  • 1 Floor
  • 3 Car Garage

Floor Plans

Image for Lenhart-Craftsman Style Home Plan for Down-sloping Lot-Main Floor Plan

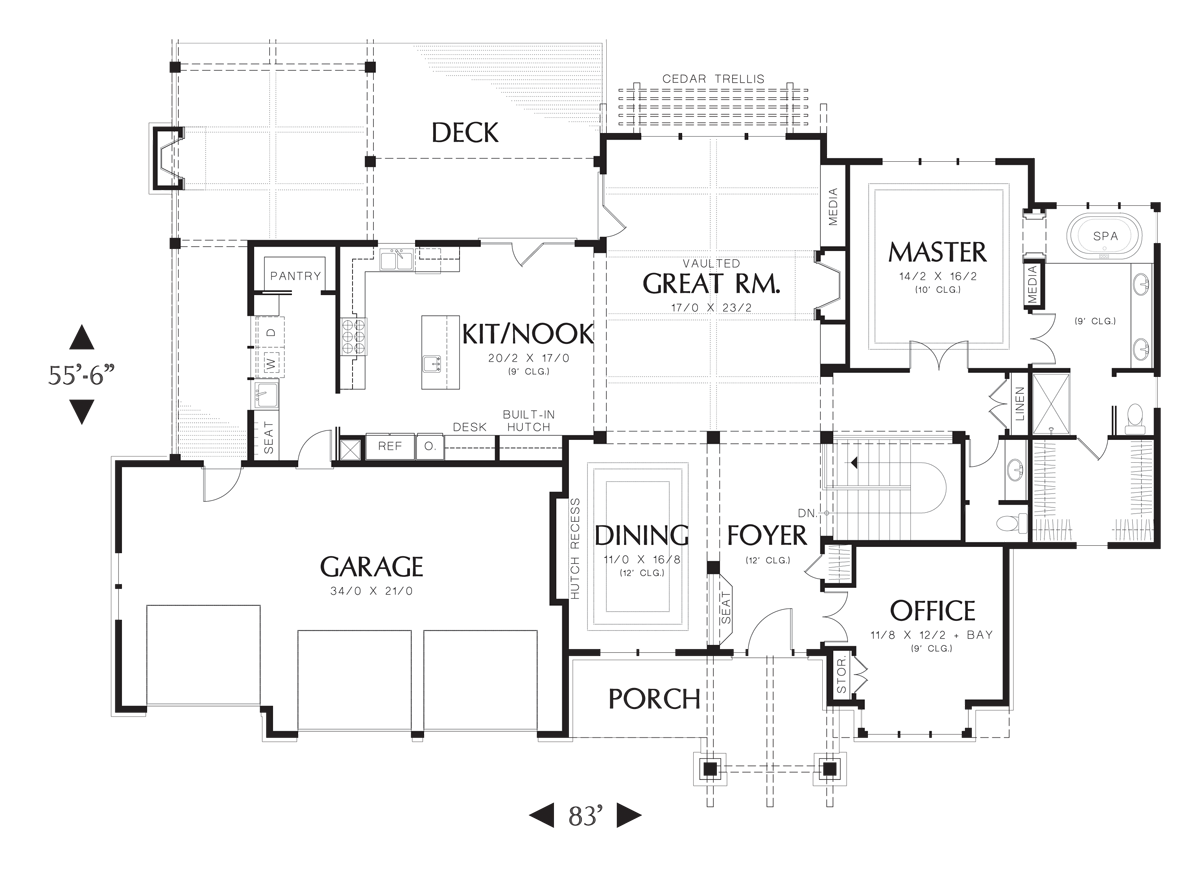

Main Floor Plan

Image for Lenhart-Craftsman Style Home Plan for Down-sloping Lot-Lower Floor Plan

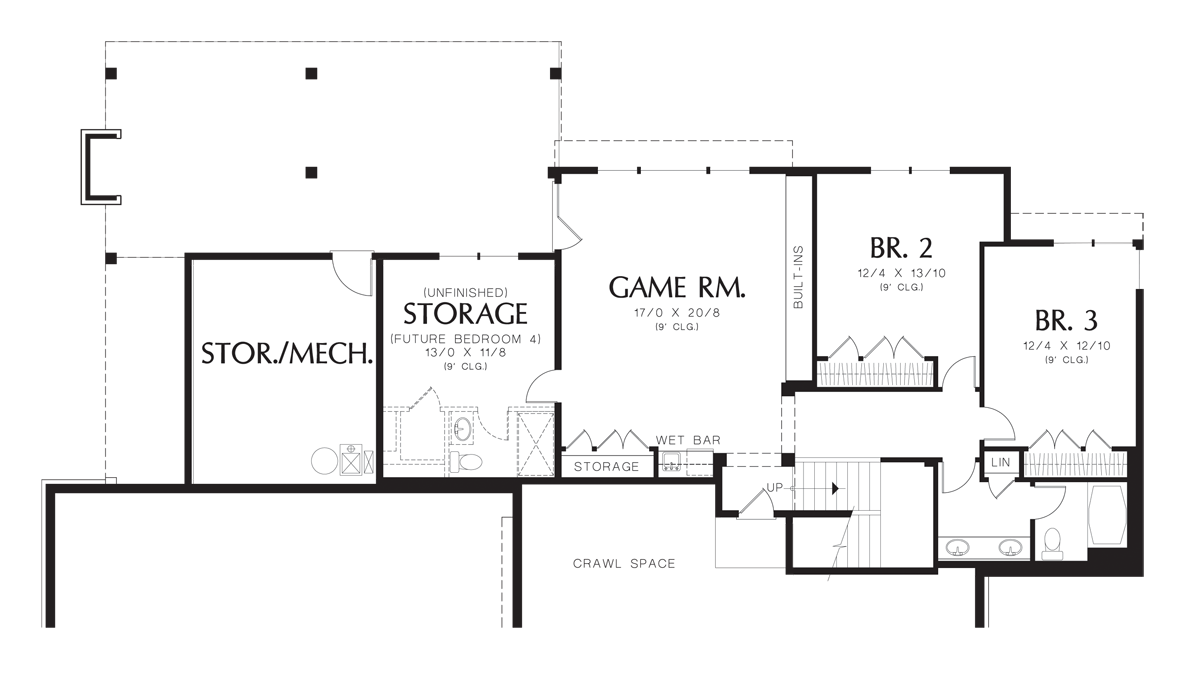

Lower Floor Plan

Home Details

Heated Area

  • Main Floor

    2210 SqFt
  • Basement

    1213 SqFt
  • Total Area

    3423 SqFt

Amenities

  • Bedrooms

    3
  • Full Baths

    2
  • Half Baths

    1
  • Floors

    1

Dimensions

Featured Collections

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
    Tile Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    12/12

Garage

  • Garage Bays

    3 Car Garage
  • Garage Area

    741 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Foundations

  • TrusJoist Floor System (default)
  • Slab (paid upgrade)

A Walk Through The Lenhart

Perched majestically on a hillside, this breathtaking one-story Craftsman-inspired home melds with nature from the outside in. A steep, hip roofline juts skyward, outlining the skyline with the appearance of a mountain that naturally steps down, wide and low before anchoring itself to the hillside. Natural exterior materials befit the imposing exterior. Ledgestone cladding for the foundation and porch columns meet rough-split, staggered-edge shakes and wood braces under the eaves and above the entry portico. Rambling like the rolling prairie, the floor plan comfortably fans out from the foyer offering a view at every turn. The main living spaces of the kitchen, dining room, and great-room openly connect, with only columns and ceiling details to distinguish the spaces. Wood beams in the great-room repeats the architectural theme of the exterior. Views to the back from the master suite, great-room, and kitchen nook, continue to draw nature inside. Living space extends outdoors and to the lower level. A large deck off the kitchen expands into a covered area with a beamed ceiling and outdoor fireplace, creating a peaceful environment for solitary relaxing or group entertaining. Two additional bedrooms and a game room on the lower level provide extra sleeping and recreation space.

Similar / Related Plans

Plan 1326 The Mensing
  • 3459 sq.ft.
  • Bedrooms:

    4
  • Baths:

    3
  • Stories:

    1
  • Width:

    70'-0"
  • Depth:

    53'-0"

Traditional Plan with Outdoor Patio

Plan 1329 The Sycamore
  • 3565 sq.ft.
  • Bedrooms:

    4
  • Baths:

    4
  • Stories:

    1
  • Width:

    60'-0"
  • Depth:

    59'-0"

Lodge Style Sloping Lot House Plan

TOP
Plan 1411 The Tasseler
  • 4732 sq.ft.
  • Bedrooms:

    4
  • Baths:

    3
  • Half Baths:

    2
  • Stories:

    1
  • Width:

    130'-3"
  • Depth:

    79'-3"

Large One Story Plan with Walk-out Basement

Plan 1411D The Timbersedge
  • 5155 sq.ft.
  • Bedrooms:

    4
  • Baths:

    3
  • Half Baths:

    1
  • Stories:

    1
  • Width:

    124'-4"
  • Depth:

    84'-3"

Northwest Style Craftsman Lodge

Plan 1413 The Lambert
  • 4333 sq.ft.
  • Bedrooms:

    4
  • Baths:

    4
  • Half Baths:

    1
  • Stories:

    1
  • Width:

    75'-0"
  • Depth:

    87'-0"

Luxurious Home Design for Large Sloping Lot

Plan 1323 The Paysholme
  • 3506 sq.ft.
  • Bedrooms:

    4
  • Baths:

    3
  • Half Baths:

    1
  • Stories:

    1
  • Width:

    81'-2"
  • Depth:

    55'-11"

Open Floor Plan with Gourmet Kitchen

NEW
View home in 360 degrees
Plan 1346 The Trenton
  • 3528 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    1
  • Width:

    81'-0"
  • Depth:

    51'-0"

Upscale Home with Room for the Future

Architectural Styles Associated With This Design

This plan is featured in the following collections
which may also be of interest to you

Comments

Please Log-In with your Mascord ID to view and leave comments.
If you don't have one, Register Here.

Why buy from us?

We are the original designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

Firstly, as the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

Secondly, as owners and original designers of all the plans in our collection, we have ultimate version control of all the construction drawings, and regularly update our drawings to meet forever changing building codes. Buying directly means that plan support comes directly from the creators of the design. We also have exclusive access to our entire catalog of CAD drawings, with the ability to modify them quickly and cost effectively, or even provide a previously modified version of a stock plan that is not available with any other authorized seller. Call our customer care staff to discuss any modifications you would like to have done, and if the modification exists already - it can save you lots of time and cost. You're not going to find that anywhere else!

Furthermore, we know our plan collection inside out! If you have questions about an element in the design, or even a question during construction - we are the ones able to answer those questions for you, quickly and accurately.

We support all of the plans we sell, and purchasing direct, you're able to take advantage of the high level of customer service we provide. If you have any questions, or to simply place an order for your home plans, call 800 411 0231.

Will This Design Work For Your Location?

All house plans licensed by Alan Mascord Design Associates Inc are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states). We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

To find out exactly what details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

Your area may have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and entire construction drawings stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
