Upper Floor1066 SqFt
Main Floor785 SqFt
Total Area1851 SqFt
Height (to Midpt)24'-6"
Roof MaterialShake/Comp Roof
Wall Framing2 x 6
Main Roof Pitch10/12
Garage Bays2 Car Garage
Garage Area368 SqFt

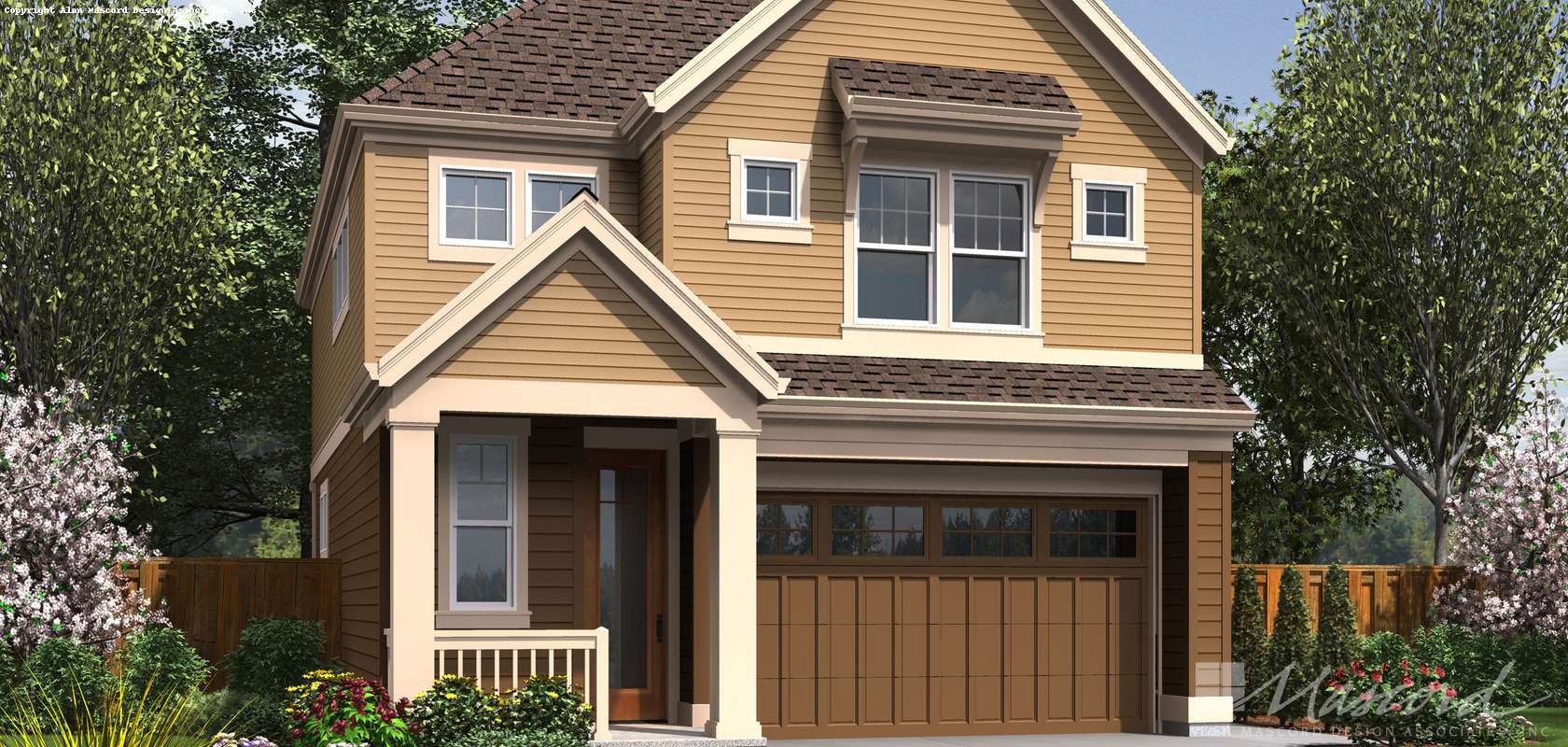

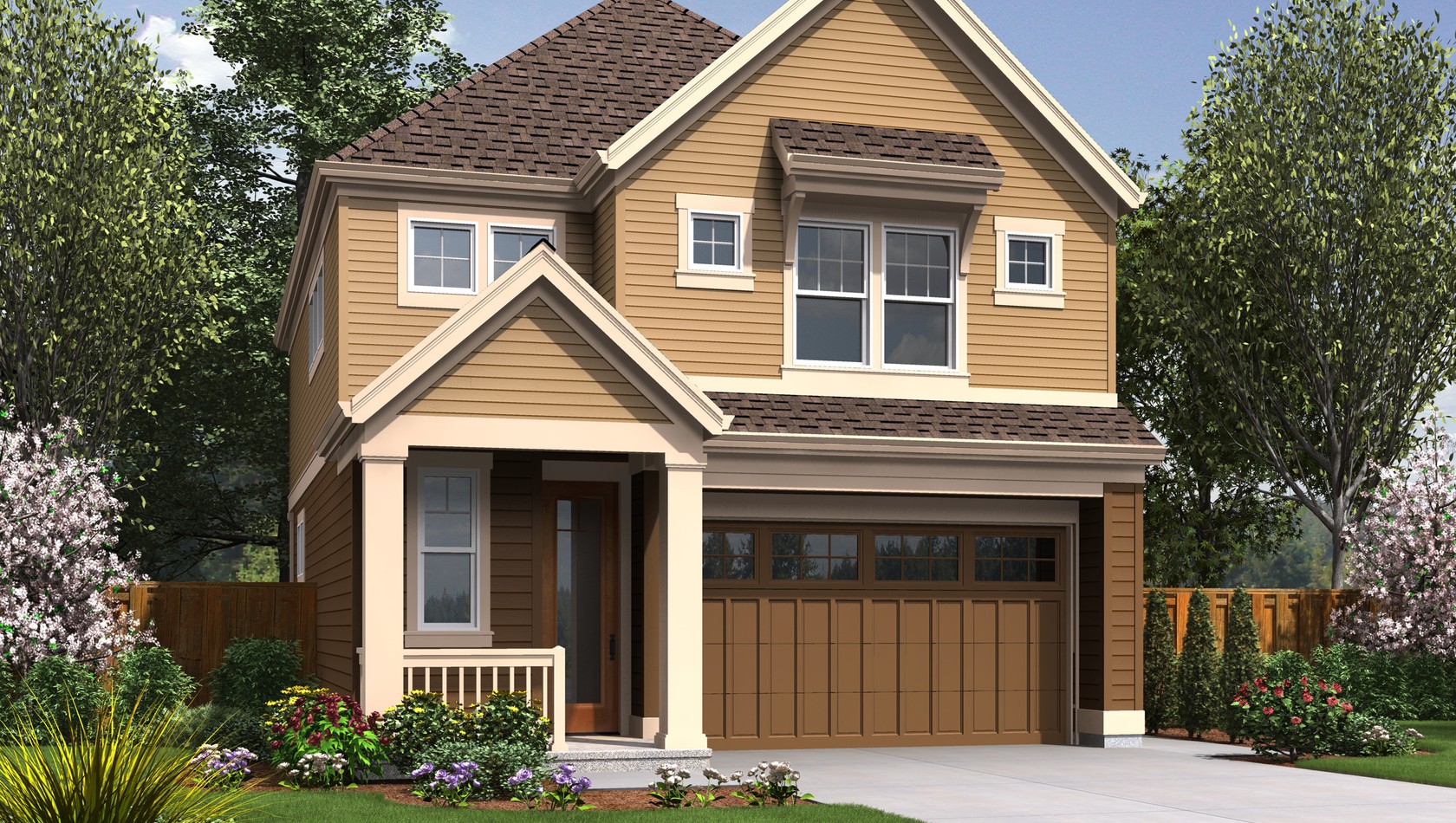

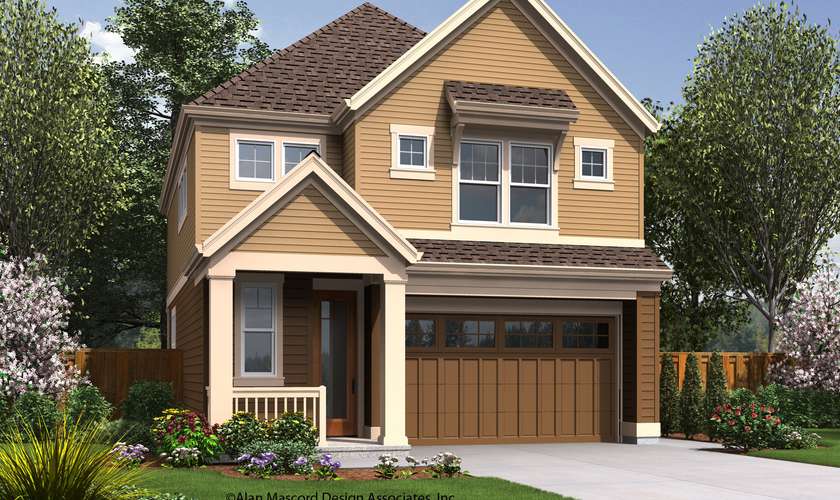

Once your family is grown and living on their own, your home will still be the one that they want to come back to for the Holidays because of all the fond memories of life in the Waldsport. They'll remember the look of comfort and charm — a traditional cottage, surrounded by snow-covered evergreens. Perhaps they'll think about the Christmas tree that graces the front porch each year, or the wooden reindeer that frolic in your front yard.

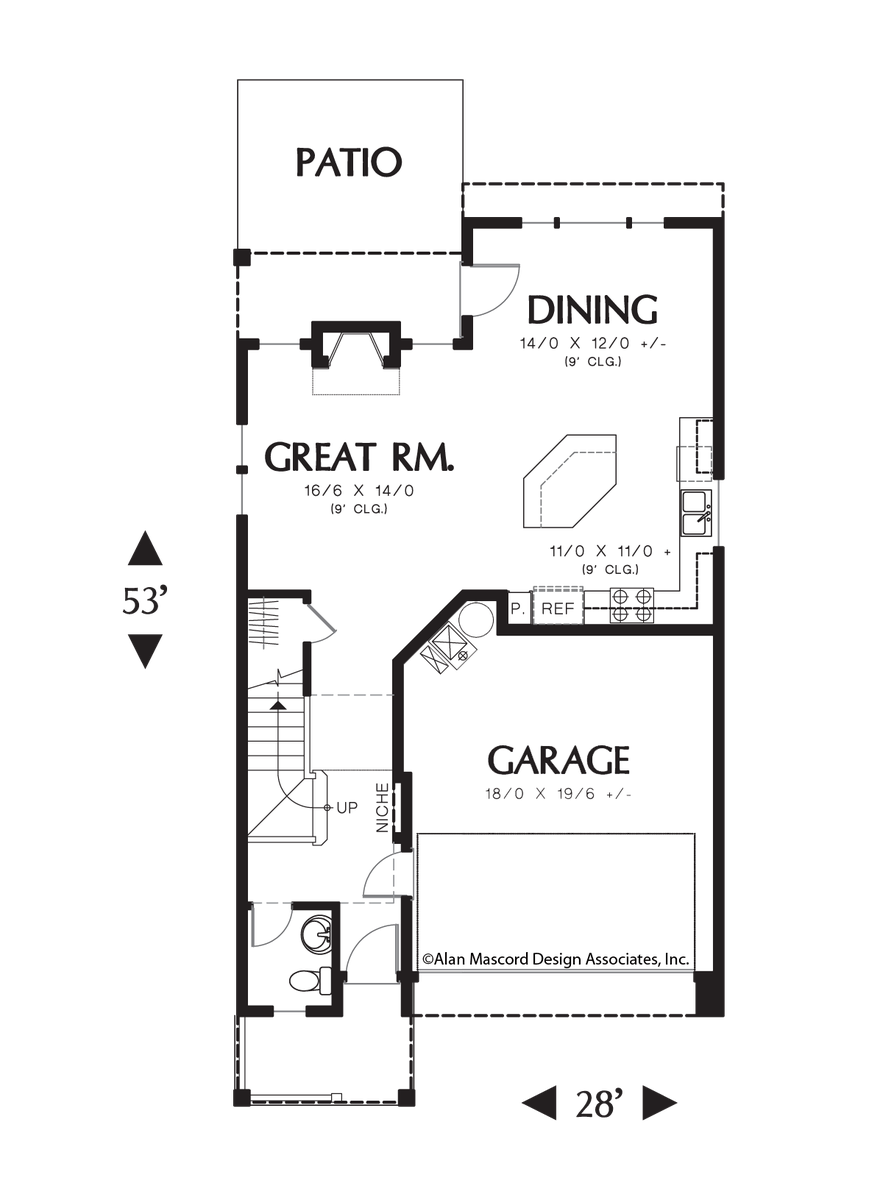

You’ll be able to extend holiday cheer to the inside of your home, too. Imagine the joy your children will feel as they race down the stairs on Christmas morning, only to be greeted by the sight of a warm fire, sparkling tree and piles of presents from Santa in the great room. If you want to spoil them even more, make sure to leave some cookies out on the kitchen island so that they can enjoy the season’s treats as they gather around the fireplace amid piles of wrapping paper.

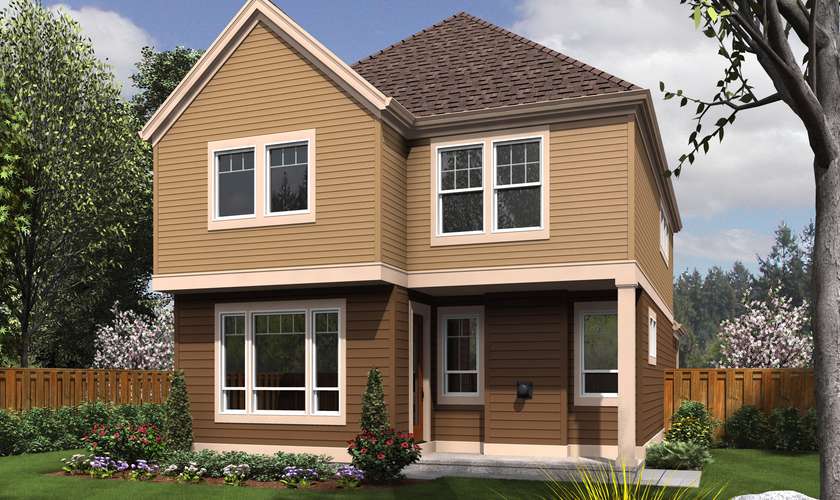

Once the presents are all opened and the cookies are gone, let your kids head outside to play in the snow. You’ll be able to watch from the back patio or through the windows in the dining room as they pelt each other with snowballs or spend the afternoon making snowmen.
When evening comes and your dinner guests start to arrive, seat them in the dining area where they can enjoy not only the sight of your beautifully decorated great room, but also the dusky, snowy landscape behind your home. Because the kitchen, living and dining areas are so open, you’ll be able to keep the conversation going even as you put the finishing touches on your holiday meal.

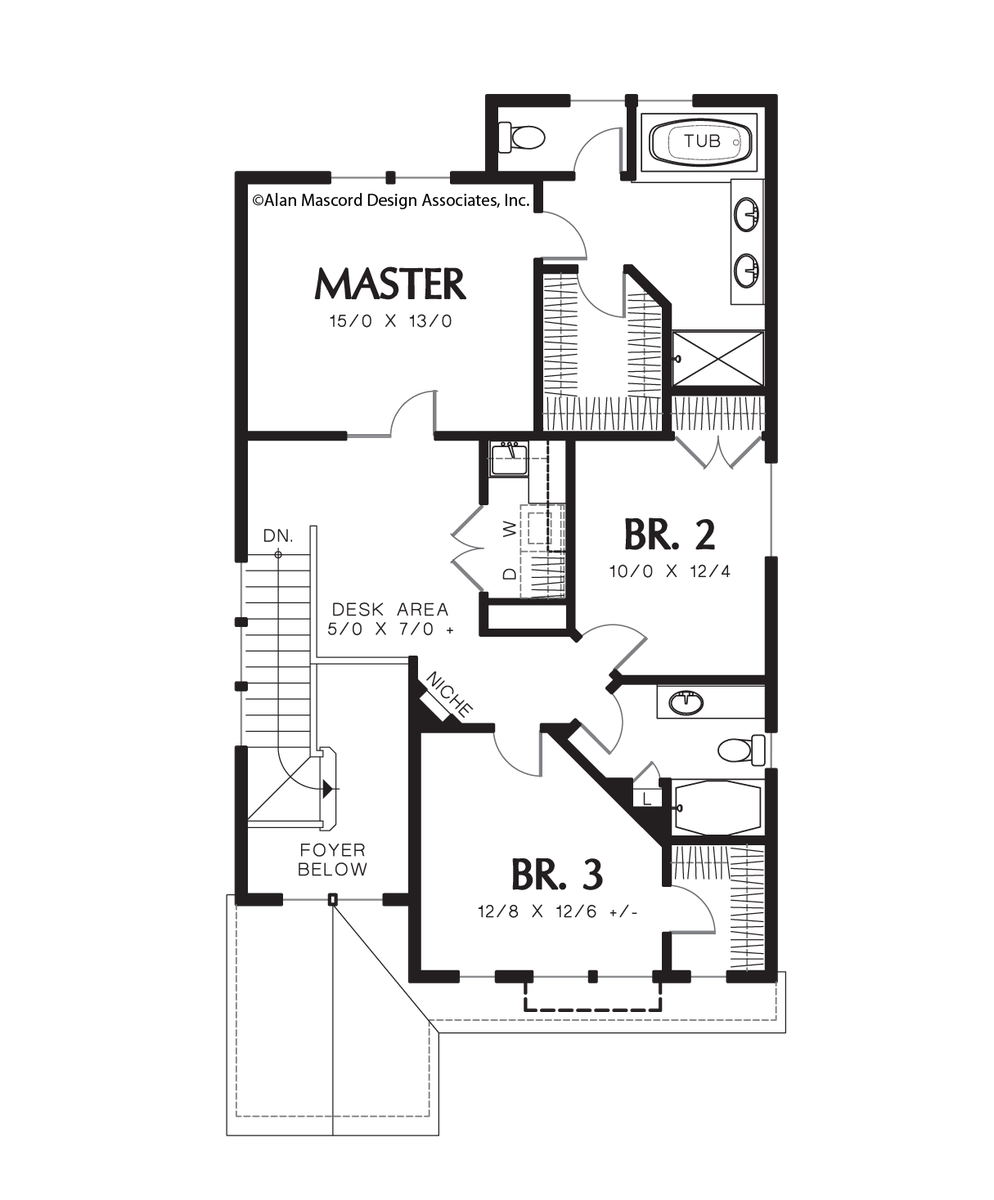

When the day is complete, the entire family will look forward to the comforts that await in the Waldsport’s upper floor. Both of the children’s bedrooms come with plenty of closet space, which gives them room for the new clothes and toys they received during the holiday. Both rooms also feature large windows, perfect for keeping a lookout for Santa on Christmas Eve.
Once you’ve put everyone to bed, there will be nothing left but to enjoy a restful night in the master suite. Start by taking a warm, soothing bath in the master bathroom — and be sure to use that luxurious bubble bath you found in your stocking! When bedtime rolls around, crawl under the covers and drift off to sleep as you look through the windows at the falling snow.
We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.
As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!
We only publish a small subset of 'base plans' through our publishing outlets and thrid party websites, but have direct access to thousands of previously modified versions in our inventory. Working with is directly, we can work to find the version that suits you best - sometimes without the need to modify further.
If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.
We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.
The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.
In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.
Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.
When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.
All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).
Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.
To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"
If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.
We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.
Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.
In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.
