Mascord House Plan 22156F: The Abbeywood
The Abbeywood

Plan 22156F

Mascord House Plan 22156F: The Abbeywood

Rear Rendering

Plan 22156F - The Abbeywood - A Life of Luxury in this Beautiful Craftsman Lodge

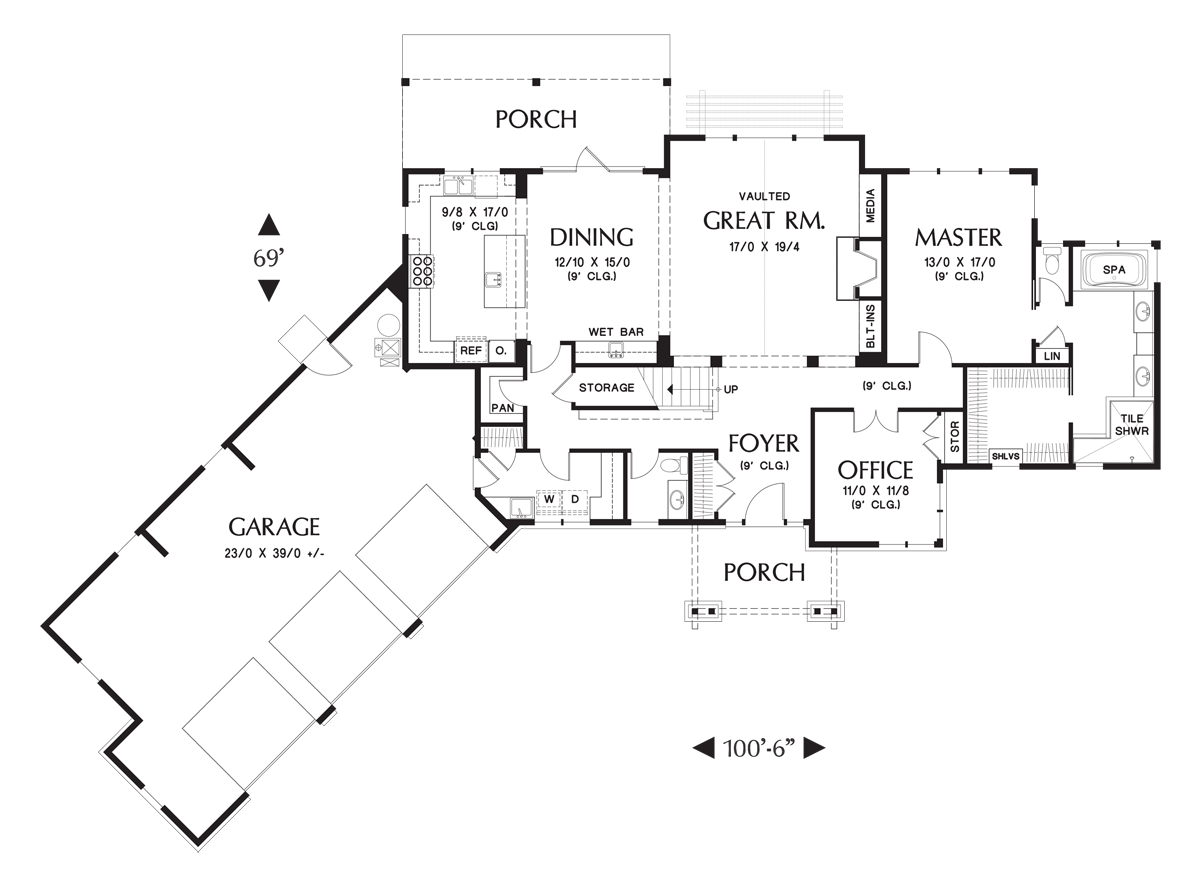

Main Floor Plan

Main Floor Plan image for Mascord Abbeywood-A Life of Luxury in this Beautiful Craftsman Lodge-Main Floor Plan

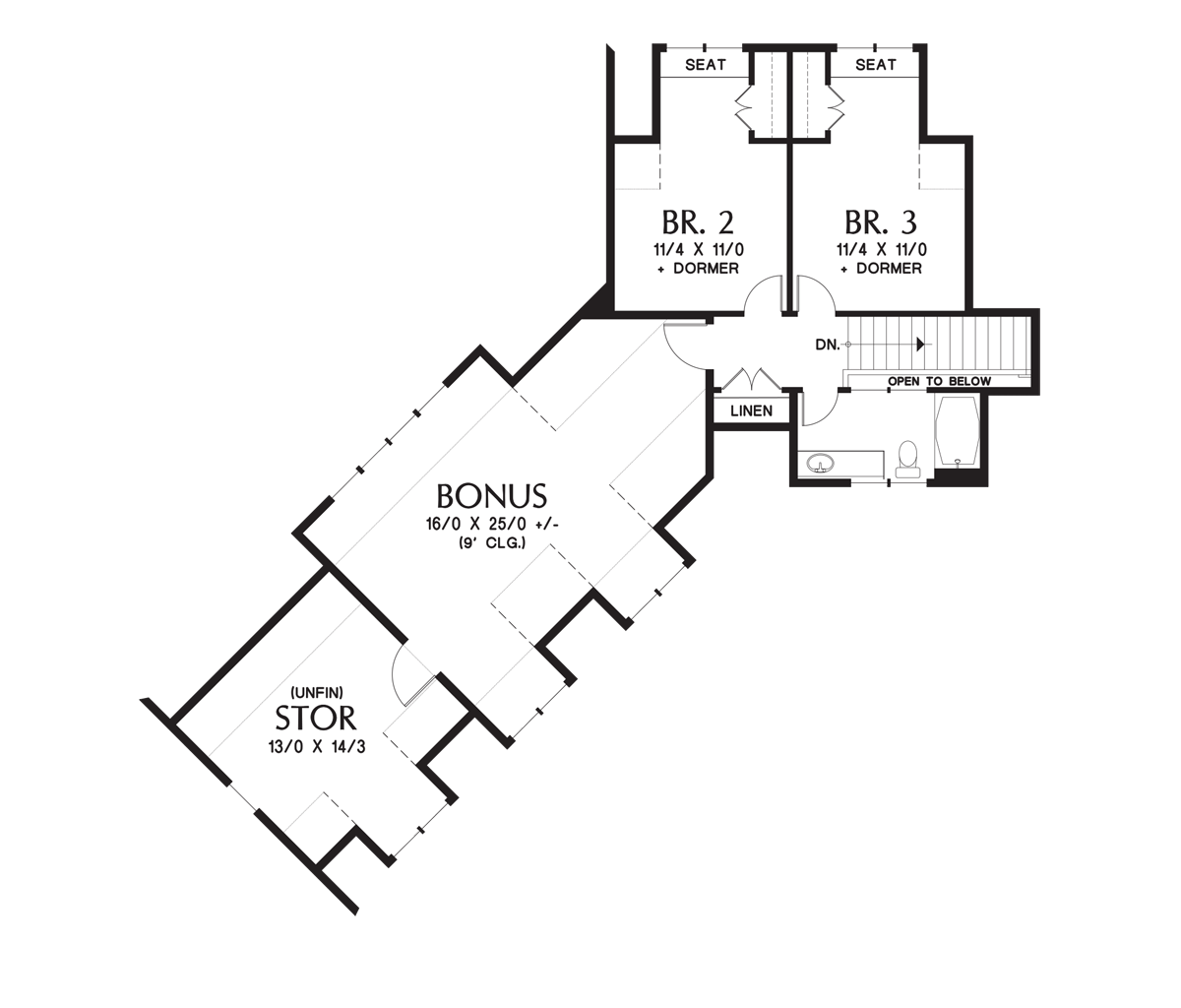

Upper Floor Plan

Upper Floor Plan image for Mascord Abbeywood-A Life of Luxury in this Beautiful Craftsman Lodge-Upper Floor Plan

Featured Photos

Photographed Homes May Include Modifications Not Reflected in the Design

A Walk Through The Abbeywood

Why take a vacation to a secluded mountain lodge when you could build your own? That’s what your friends and family will think the first time they see your home. The warm, rich Craftsman exterior — updated with hints of rustic Lodge styling — will give your visitors a cheerful welcome long before you’ve answered the door. With trees and rugged terrain surrounding your home, you’ll be able to set the perfect atmosphere for a weekend of hunting, hiking or fishing in mountain streams.

When you need to take a break from your outdoor activities, the Abbeywood has everything you need to rest and relax. Gather around the fireplace in the vaulted great room to enjoy the scenery through the large windows as you share hunting stories.

Evenings spent in the Abbeywood’s master suite will be nothing short of luxurious. Freshen up in the master bath’s tiled shower, or soothe away aches and pains from a long day of hiking with a hot bath in the spa bathtub. When it’s finally bedtime, you’ll be able to enjoy looking out over the wilderness through the master bedroom’s wide windows as you drift off to sleep.

The Abbeywood’s upper floor features two bedrooms and a bonus room, which gives you plenty of space for overnight guests. Invite your friends to stay for hunting season, and once they’ve enjoyed the luxuries your home has to offer, they might just decide to stay on even after the season comes to a close. This floor also has a large storage room, which gives you a great place to keep all of your out-of-season gear.

If you enjoy hunting and fishing, then there’s a good chance that you also enjoy preparing the things that you’ve harvested. That’s where the Abbeywood’s kitchen comes in handy. Gather everyone together to prepare an extraordinary feast of wild game — the island and wraparound counters ensure that everyone has plenty of room to work.

Although the Abbeywood encourages you to spend plenty of time at play, this home also makes sure that you can get work done, too. The mud room, for instance, gives everyone a place to kick off muddy boots, overalls and hunting vests. If you want to make sure your outerwear is fresh and ready to go for tomorrow’s activities, go ahead and start a load of laundry before venturing further into the house.

You’ll also have your very own home office. This is a great place not only to attend to your business, but to hang up hunting trophies from seasons gone by.

Home Details

Heated Space

  • Upper Floor

    537 SqFt
  • Main Floor

    1991 SqFt
  • Sub-Total

    2528 SqFt
  • Bonus

    + 455 SqFt

Beds and Baths

  • Bedrooms

    3
  • Full Baths

    2
  • Half Baths

    1
  • Floors

    2

Exterior Dimensions

Garage

  • Garage Bays

    3 Car Garage
  • Garage Area

    1012 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Angled

Structure

  • Roof Framing

    Combo
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    12/12

Craftsman

The Mascord collection of craftsman house plans highlight features that were first introduced with the Arts and Crafts movement, which thrived from 1876-1915, and continues to be celebrated today. These homes have great curb appeal, lots of detail and the amenities you need for modern living. Check out the collection for more great home designs.

Lodge

Our Lodge house plans are inspired by the rustic homes from the Old West. Whether you’re looking for a modest cabin or an elaborate timber-frame lodge, these homes will make you feel you’re away from it all (even if you live in the suburbs). The homes rely on natural materials for their beauty. Among the materials used are heavy timbers, wood siding, stone, gable end braces, and cedar shakes. While different in theme, each design promotes a rustic feel that will effortlessly blend with verdant landscapes and mountain vernacular. The floor plans promote outdoor views, making them ideal for sites with mountain vistas, cityscape scenes, and lakeside access.

This plan is based upon another design - 22156
  • Removed 379 SqFt from finished area
  • Overall Width increased 2ft.
  • Overall Depth increased 2ft.
Check out the details for Plan 22156 here.

Choose Plan Set

Foundations

Additional Options

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Similar and Related Plans

Plan 22156 The Halstad
Photography of house plan 22156 Printable Page of House Plan 22156
  • 2907 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    2
  • Width:

    98'-9"
  • Depth:

    66'-4"
View home in 360 degrees
Plan 22201 The Hartford
Printable Page of House Plan 22201
  • 2369 sq.ft.
  • Bedrooms:

    3
  • Baths:

    3
  • Half Baths:

    1
  • Stories:

    2
  • Width:

    91'-0"
  • Depth:

    63'-0"
View home in 360 degrees
Plan 22190 The Silverton
Printable Page of House Plan 22190
  • 2637 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    2
  • Width:

    97'-9"
  • Depth:

    67'-6"
View home in 360 degrees
Plan 22156FA The Ferguson
Printable Page of House Plan 22156FA
  • 2532 sq.ft.
  • Bedrooms:

    3
  • Baths:

    2
  • Half Baths:

    1
  • Stories:

    2
  • Width:

    95'-4"
  • Depth:

    60'-11"

You can find this plan in these related styles and collections

Builders known to be experienced constructing this home include:

RM Construction Logo image
RM Construction Glenwood Springs, CO 9703002025
Mance and Son Olympia, WA 3609433800
(find more builders in our Builder Directory)

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
