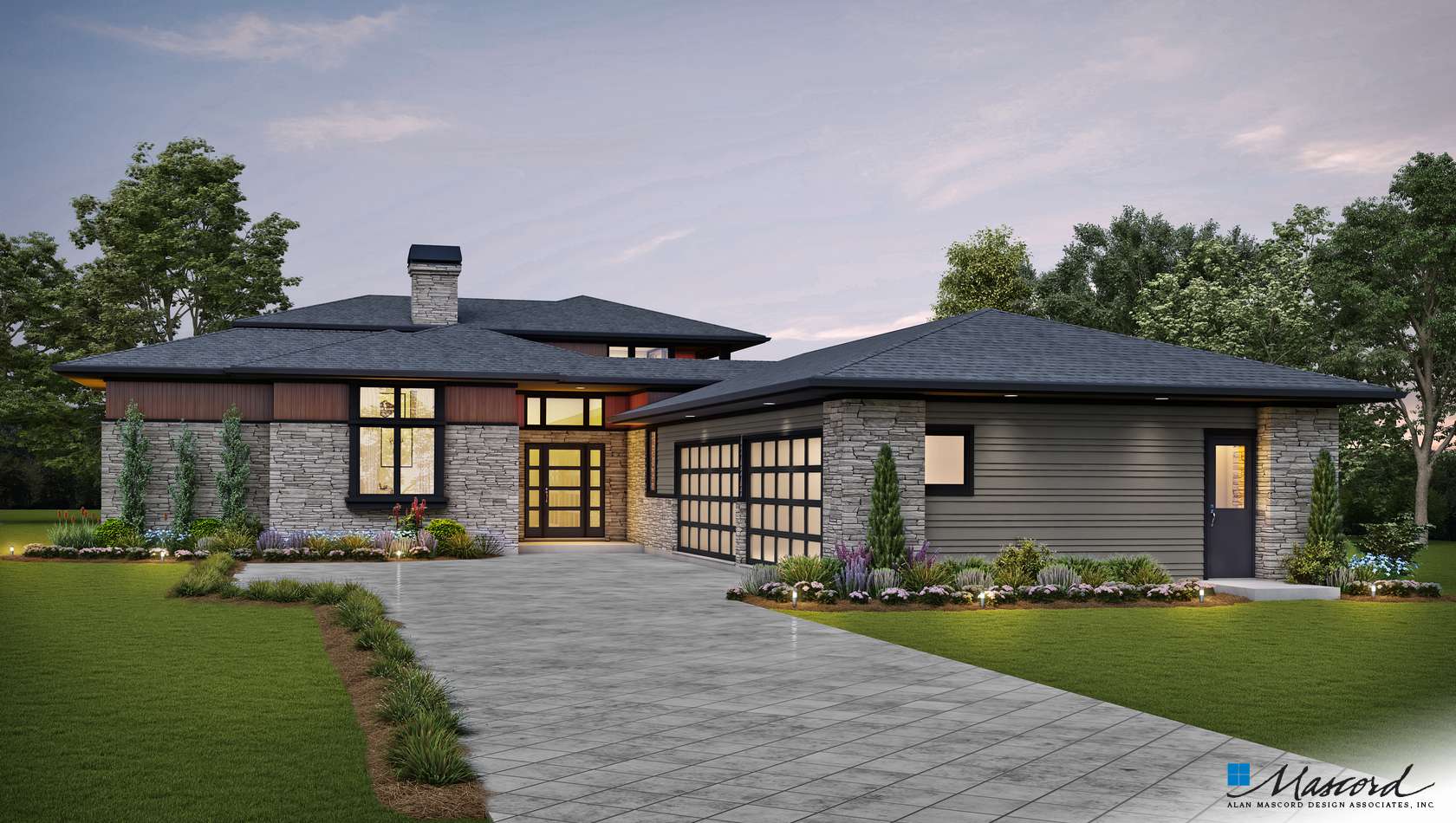

Mascord House Plan 23116: The Lucas
The Lucas

Plan 23116

Mascord House Plan 23116: The Lucas

Side Rendering

Mascord House Plan 23116: The Lucas

Rear Rendering

Plan 23116 - The Lucas - Great Plan for Corner Lots

Main Floor Plan

Main Floor Plan image for Mascord Lucas-Great Plan for Corner Lots-Main Floor Plan

Upper Floor Plan

Upper Floor Plan image for Mascord Lucas-Great Plan for Corner Lots-Upper Floor Plan

A Walk Through The Lucas

There are not many blueprints available quite like these. The Lucas is a wonderful blend of contemporary and prairie styles that makes it a real treat to behold. Elements like stone and natural wood siding give this home a wonderful woodland look that ensures this home will feel perfectly at home on large, wooded lots.

Inside, you’ll find all the amenities you could possibly wish for. Are you fond of throwing formal dinner parties? These house plans feature a beautiful dining room to accommodate your guests. Through a large archway, the kitchen is easily accessible—and what a beautiful kitchen it is, too. Wraparound counters and a large island allow you to feast those guests with ease. One unique feature to the dining space are the sliding glass doors that lead out to a covered porch. Here, you can enjoy brunch with friends, or your evening guests can step outside to enjoy the cool night air over drinks.

The Lucas’s great room gives you a vast sense of space, a large media center for your TV and Blu-ray collection, and a gorgeous built-in fireplace that will have you dragging out the blankets and slippers to enjoy toasty winter evenings. This space also overlooks the outdoor living space, which, with wide windows and doors, performs more as an extension of your living space than as a separate outdoor area. The outdoor living space gives you a roof so that you can enjoy the fresh air rain or shine, and there is plenty of room here for both seating and an outdoor kitchen.

From the outdoor living space, you can also access the Lucas’s master suite. This is truly a sumptuous suite! A fireplace awaits at the foot of the bed, which means you’ll certainly spend many long evenings curled up under the covers, enjoying the warmth and ambiance. Within the master bath, dual sinks, a spa tub and a large tiled shower give you that spa-like experience you’ve always wanted. The walk-in closet is enormous, with not only space for your entire wardrobe, but seating, built-in cabinets and shelving to keep all of your accessories organized. To top it off, the closet opens onto the laundry room, which makes laundry days easy.

There are even more features on the lower floor that you won’t be able to resist. On office with beautiful windows gives you a private place to get work done while you enjoy the beautiful view. There is a guest room on this floor, too, so that stay-over guests have their own private bed and bath to keep them comfortable during their stay.

This home’s upper floor is devoted to your children’s needs. Two bedrooms on a separate floor means you’ll enjoy privacy and quiet downstairs in the master suite. These bedrooms each give your kids a walk-in closet and their own private baths. Best of all, a covered balcony lets them enjoy the view outside, and you’ll find that the loft on this floor suits many purposes. Perhaps this space can be the library you’ve always wanted, or maybe it’ll become a play space for the kids, complete with desks where they can get their homework done when they’re not hard at play!

Home Details

Heated Space

  • Upper Floor

    982 SqFt
  • Main Floor

    2900 SqFt
  • Total Area

    3882 SqFt

Beds and Baths

  • Bedrooms

    4
  • Full Baths

    4
  • Floors

    2

Exterior Dimensions

Garage

  • Garage Bays

    4 Car Garage
  • Garage Area

    1163 SqFt
  • Garage Location

    Side
  • Garage Orientation

    L-Shaped

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    4/12

Contemporary

Our Contemporary House Plans collection presents modern homes designed around light and space: open, airy and with an abundance of windows in various modern styles, these homes are generously appointed to bring ample light indoors. Unique rooflines and asymmetrical designs create rooms that feel as grand as they are innovative. With a focus on maximizing square footage and minimizing costs, these pioneering modern homes are as reasonable to build as they are pleasant to live in, which we're sure you'll love.

Modern Prairie

Modern Prairie homes are characterized by their horizontal lines, low-pitched roofs, and integration with the surrounding landscape. They often have wide, overhanging eaves, and may incorporate elements such as cantilevered balconies and large windows to bring in natural light. In modern versions of the style, materials such as glass, steel, and concrete may be used alongside traditional wood and brick. Modern prairie style homes often emphasize open, flowing floor plans and a connection to nature.

Prairie

Our Prairie style houseplans feature a low pitched roof, usually hipped, with a wide overhang, and have boxed shapes with a horizontal emphasis. They typically feature clean lines with massive square porch supports, and casement windows in rows. Frank Lloyd Wright revolutionized the American home when he began to design "Prairie" style houses characterized by low, horizontal lines that were meant to blend with the flat landscape around them. Our collection of Prairie Style homes exemplifies the style-- mixing timeless architectural elements with modern convenience, resulting in a wonderful home built to withstand the ever-changing 'vogue' of modern styles.

Cyber Week -
20% savings applied

Choose Plan Set

Foundations

View In-Ground Basement Details

Additional Options

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Similar and Related Plans

View home in 360 degrees
Plan 22206 The Martine
Printable Page of House Plan 22206
  • 3454 sq.ft.
  • Bedrooms:

    4
  • Baths:

    3
  • Half Baths:

    1
  • Stories:

    2
  • Width:

    96'-0"
  • Depth:

    51'-6"

You can find this plan in these related styles and collections

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
