Mascord House Plan 22210A: The Carroll
The Carroll

Plan 22210A

Mascord House Plan 22210A: The Carroll

Rear Rendering

Plan 22210A - The Carroll - Contemporary Home for a Growing Family

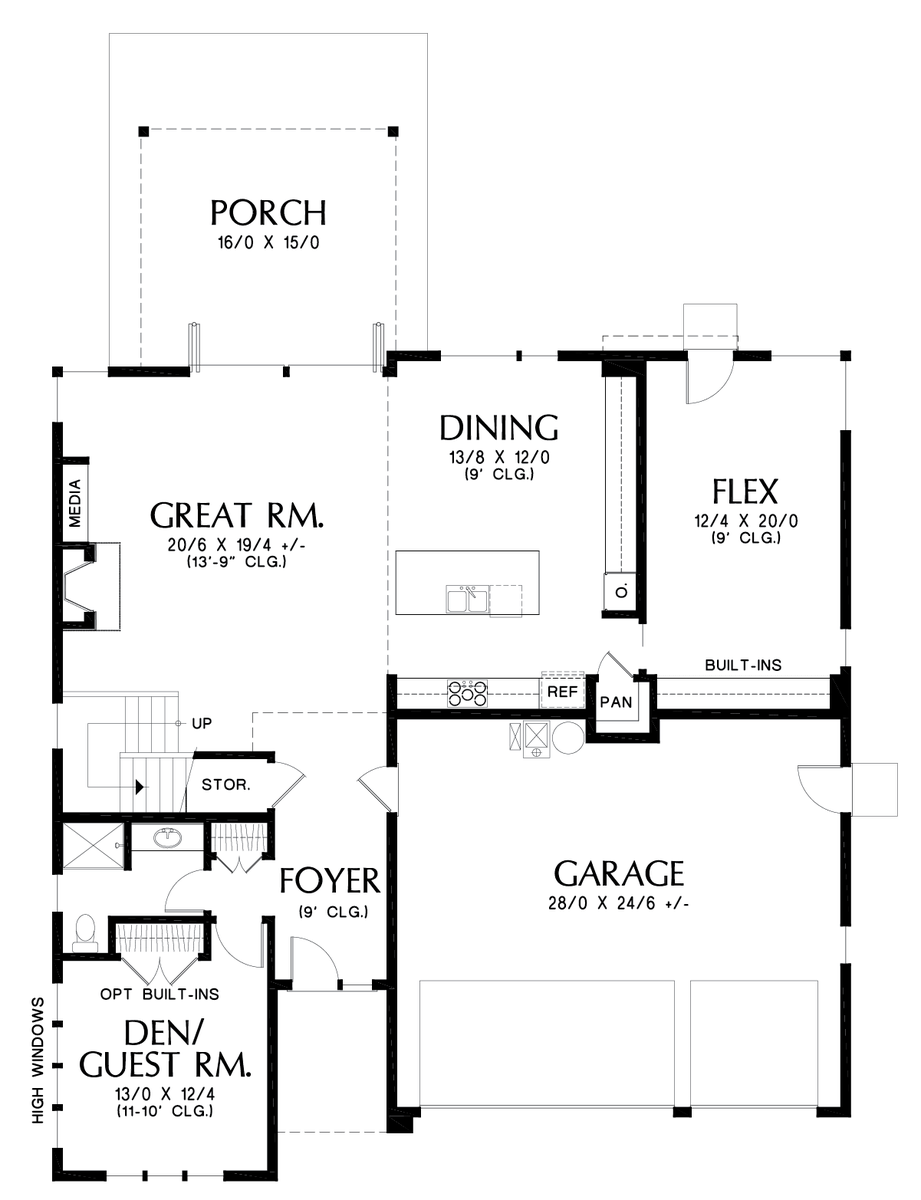

Main Floor Plan

Main Floor Plan image for Mascord Carroll-Contemporary Home for a Growing Family-Main Floor Plan

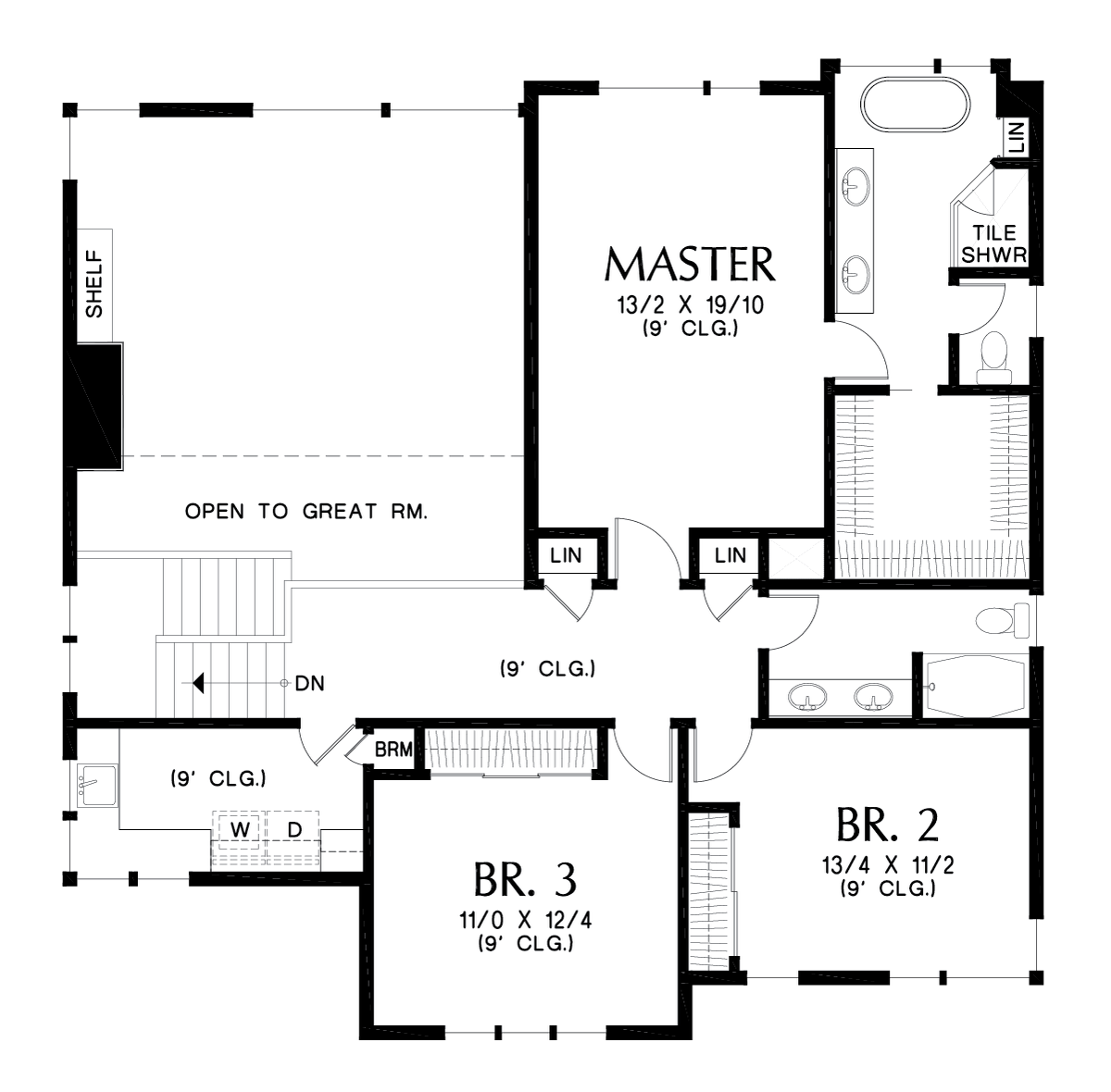

Upper Floor Plan

Upper Floor Plan image for Mascord Carroll-Contemporary Home for a Growing Family-Upper Floor Plan

A Walk Through The Carroll

As life changes and your family expands, it is hard to say what you will need from a home in the future. That’s what makes a home like the Carroll such a smart choice. Both the flex room and the den on the lower floor are spaces that can be put to a variety of uses, including spare bedrooms for your children. Or, perhaps you need office space, a sunroom, a games room or simply a place to kick back and relax. You’ll have it with these two rooms

One of the things that makes this home special is the traditional layout. You’ll look forward to making weeknight dinners in the kitchen while the kids do their homework on the dining room table. Then you’ll all sit around that table and talk about how the day went. In the evening, you can cozy up with the family in the Carroll’s great room. Watch TV or snuggle under a blanket while the fire crackles softly in the fireplace. This is what family togetherness is supposed to be about.

The Carroll’s upper floor is a mixture of luxury and practicality. To the front of the home are the kids’ bedrooms, both large enough for your children to invite their friends for sleepovers. They’ll also have their own bathroom — no running into the master bath and waking up the parents in the middle of the night!

Additionally, the laundry room is on this floor. You’ll save time gathering laundry and putting it away because you’ll only be a few steps away from each bedroom. Who knows, with the laundry room in such and easy to access spot, you may even be able to talk your kids into putting their own dirty laundry in the laundry room hampers, where it belongs, instead of strewn across their bedroom floors.

Finally, there are the luxuries for you and your partner to enjoy. The master suite includes a spacious bedroom with windows overlooking the scenery behind your home — perhaps sparkling city lights in a valley below you. If, when the day is done, you don’t feel quite ready to go to sleep, then you’ll want to curl up in an armchair by the window. Otherwise, enjoy a warm bath in the master bathroom. These comforts are enough to put anyone in a restful state of mind!

Moreover, you can rest easy knowing that your morning routine is streamlined. Your walk-in closet holds everything you need to get ready for the day, neatly organized, while his-and-her sinks in the master bath means that you and your partner won’t have to awkwardly share a single sink.

Home Details

Heated Space

  • Upper Floor

    1270 SqFt
  • Main Floor

    1669 SqFt
  • Total Area

    2939 SqFt

Beds and Baths

  • Bedrooms

    4
  • Full Baths

    3
  • Floors

    2

Exterior Dimensions

Garage

  • Garage Bays

    3 Car Garage
  • Garage Area

    710 SqFt
  • Garage Location

    Front
  • Garage Orientation

    Straight-On

Structure

  • Roof Framing

    Truss
  • Roof Material

    Shake/Comp Roof
  • Snowload

    25 lb/sf
  • Wall Framing

    2 x 6
  • Main Roof Pitch

    4/12

Contemporary

Our Contemporary House Plans collection presents modern homes designed around light and space: open, airy and with an abundance of windows in various modern styles, these homes are generously appointed to bring ample light indoors. Unique rooflines and asymmetrical designs create rooms that feel as grand as they are innovative. With a focus on maximizing square footage and minimizing costs, these pioneering modern homes are as reasonable to build as they are pleasant to live in, which we're sure you'll love.

Modern Prairie

Modern Prairie homes are characterized by their horizontal lines, low-pitched roofs, and integration with the surrounding landscape. They often have wide, overhanging eaves, and may incorporate elements such as cantilevered balconies and large windows to bring in natural light. In modern versions of the style, materials such as glass, steel, and concrete may be used alongside traditional wood and brick. Modern prairie style homes often emphasize open, flowing floor plans and a connection to nature.

Prairie

Our Prairie style houseplans feature a low pitched roof, usually hipped, with a wide overhang, and have boxed shapes with a horizontal emphasis. They typically feature clean lines with massive square porch supports, and casement windows in rows. Frank Lloyd Wright revolutionized the American home when he began to design "Prairie" style houses characterized by low, horizontal lines that were meant to blend with the flat landscape around them. Our collection of Prairie Style homes exemplifies the style-- mixing timeless architectural elements with modern convenience, resulting in a wonderful home built to withstand the ever-changing 'vogue' of modern styles.

This plan is based upon another design - 22210
  • Added 66 SqFt to finished area
  • Overall Depth increased 16ft.
Check out the details for Plan 22210 here.

Cyber Week -
20% savings applied

Choose Plan Set

Foundations

Additional Options

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Similar and Related Plans

View home in 360 degrees
Plan 22210 The Sweetwater
Printable Page of House Plan 22210
  • 2873 sq.ft.
  • Bedrooms:

    4
  • Baths:

    3
  • Stories:

    2
  • Width:

    50'-0"
  • Depth:

    50'-0"

You can find this plan in these related styles and collections

Builders known to be experienced constructing this home include:

J.T. Roth Construction Logo image
J.T. Roth Construction Portland, OR 5036392639
Gerritz Custom Homes Portland, OR 5033207280
Solstice Custom Homes Cedar Hills, OR 5037092277
CRD Inc Oregon City, OR 5033172509
(find more builders in our Builder Directory)

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
